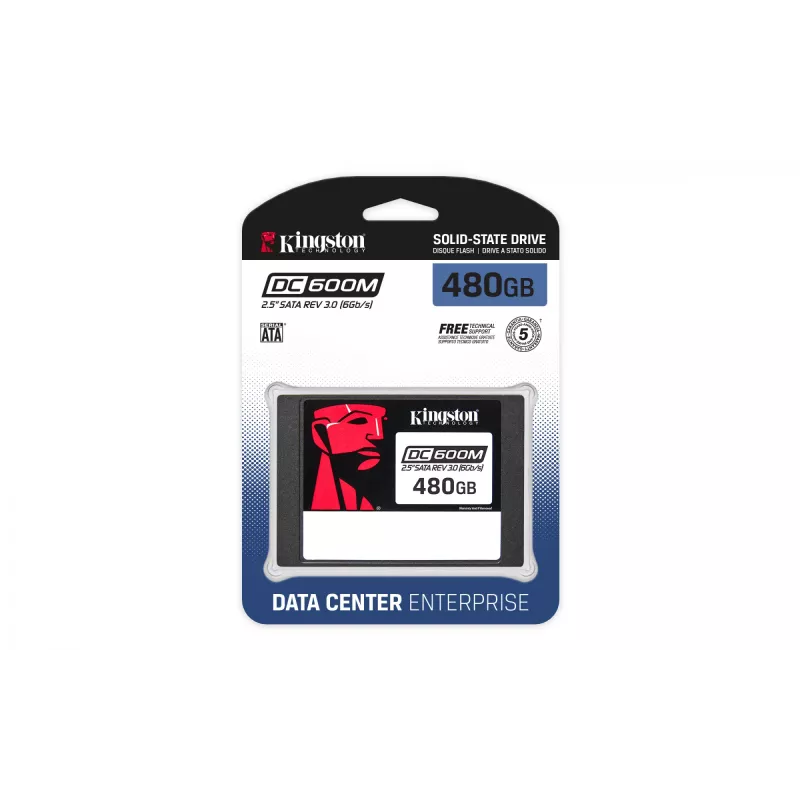

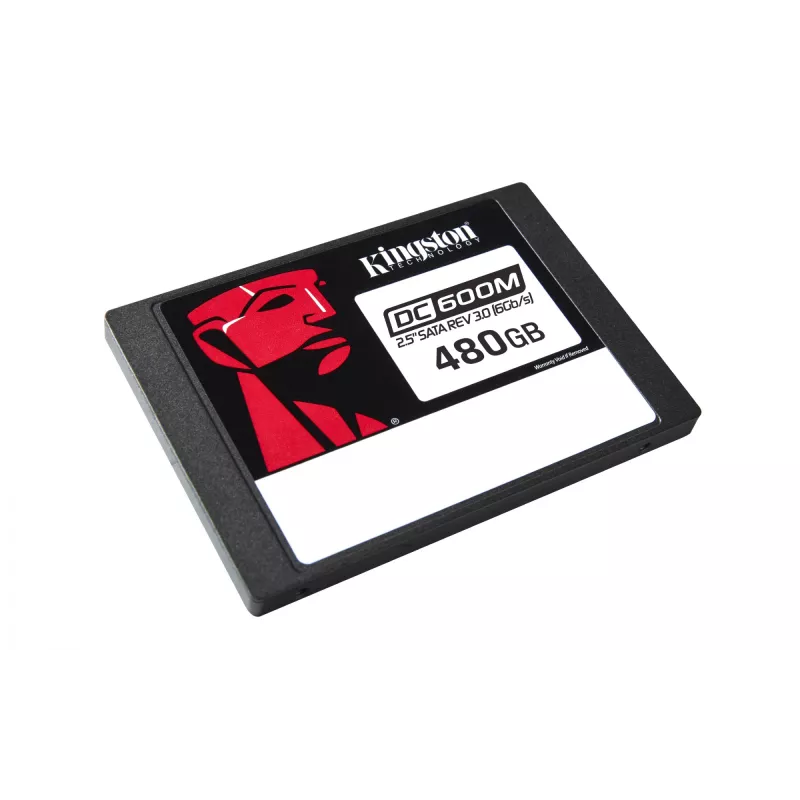

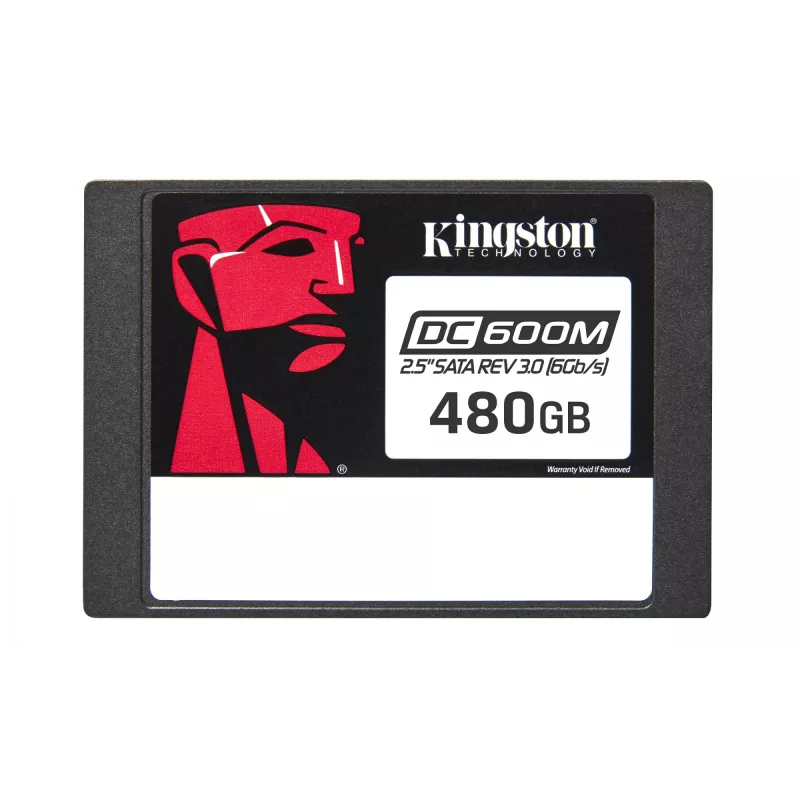

SSD Kingston Technology 480GB 2,5" SATA DC600M

The Kingston Technology 480GB 2.5" SATA DC600M is a fourth-generation data center SATA 3.0 (6 Gbps) SSD using 3D TLC NAND and designed for mixed-use server workloads. The drive is optimised for low latency and I/O consistency to meet the demands of system integrators, hyperscale data centres and cloud service providers. On-board power-loss protection with hold-up capacitors helps protect data during unexpected power failures and ensures reliable device reinitialisation on next power-up.

Advantages

The DC600M provides predictable performance and quality of service for server RAID and mixed-use applications, with read speeds up to 560 MB/s and write speeds up to 470 MB/s. It includes hardware-based power-loss protection to safeguard user data and reduce the risk of data corruption. Capacities start at 480 GB and scale up to multi-terabyte options to suit varying storage requirements.

Suitable for

• Enterprise servers and workstations
• RAID arrays in data centres
• Mixed-use applications requiring consistent I/O
• Hyperscale and cloud infrastructure

Key specifications

• Form factor: 2.5"
• Interface: SATA 3.0 (6 Gbps)
• Capacity: 480 GB (model SEDC600M/480G); other capacities available up to 7.68 TB
• NAND type: 3D TLC
• Sequential read: up to 560 MB/s
• Sequential write: up to 470 MB/s
• Weight: 0.066 kg
• Power-loss protection: onboard hold-up capacitors (hardware PLP)

How to use

Install the 2.5" Kingston DC600M into a compatible SATA 3.0 drive bay or tray, connect the SATA data and power cables, and configure the drive in the host system BIOS or RAID controller as required. For optimal performance, install the latest firmware and ensure the operating system and controller drivers support SATA 6 Gbps operation. Follow your server or workstation vendor guidelines for RAID configuration and drive hot-swap procedures.

Recommendations

Use the DC600M in environments that require consistent I/O performance and predictable QoS. Consider the DC600ME variant if hardware-based AES 256-bit encryption and TCG Opal 2.0 security are required. Maintain current firmware and monitor drive health via SMART tools to meet service-level agreements.
