Staffa angolare Extralink staffa a parete L200 200mm

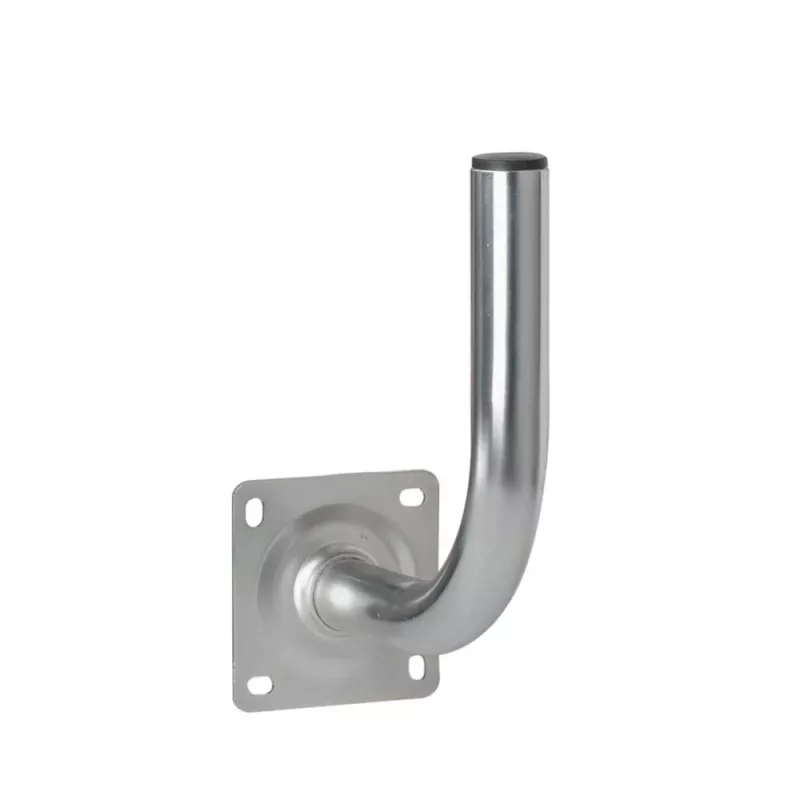

Wall bracket for mounting antennas on vertical surfaces. The Extralink Wall mount L200 is an angled bracket made of galvanized steel, designed to fix satellite or terrestrial antennas to façades, walls and other flat surfaces. Its corrosion-resistant finish and solid construction make it suitable for outdoor installation.

Advantages

The galvanized steel construction provides resistance to corrosion and mechanical damage, extending the service life of the bracket in outdoor conditions. The bracket supports compact antennas and similar equipment up to 10 kg and features dimensions that simplify installation: 250 mm height, 200 mm arm length and a tube diameter of 38 x 1.5 mm.

Suitable for

• Mounting satellite antennas
• Mounting terrestrial TV antennas
• Fixing small outdoor equipment on façades and walls

Key specifications

• Brand: Extralink (MPN: EX.6617)
• Material: galvanized steel
• Height: 250 mm
• Arm length: 200 mm
• Tube diameter: 38 x 1.5 mm
• Maximum supported load: 10 kg
• Package contents: 1 wall bracket

How to use

Position the bracket on the chosen flat surface and mark mounting points according to the bracket holes. Drill appropriate holes in the façade or wall, insert suitable anchors and fasten the bracket using compatible bolts. Attach the antenna to the arm and secure it with the appropriate clamps and fasteners, ensuring correct alignment and stable fixation. Verify that all fastenings are tightened and that the mounted device is level and secure before leaving the installation.

Recommendations

Use corrosion-resistant fasteners and appropriate wall anchors for the substrate (masonry, concrete, or siding). Check local wind load conditions and professional installation requirements for larger antennas or in exposed locations.
