Staffa per slot 2x SATA interno su 2x eSATA esterno DeLOCK 65116

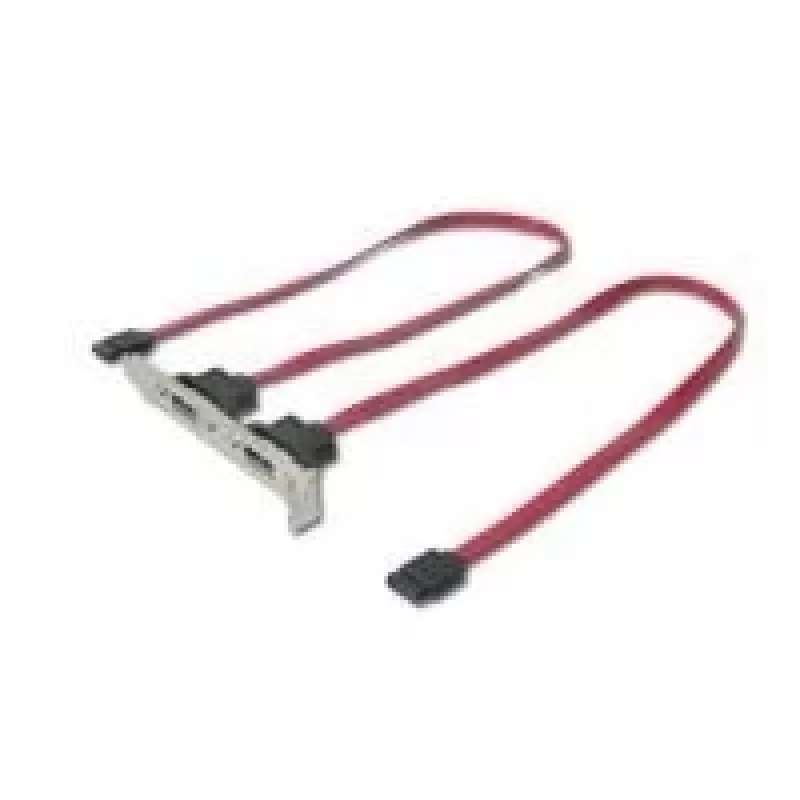

The DeLOCK Slotbracket provides two internal SATA ports routed to two external eSATA connectors for installation in a standard PCI slot. It is designed to fit into a computer case PCI opening and enables connection of external eSATA devices to the system's internal SATA interfaces.

Advantages

The bracket offers two 7-pin SATA connectors converted to two external eSATA ports, allowing easy access to internal SATA connections from outside the PC. Installation is straightforward and compatible with standard PCI slot openings, making it a compact solution to expand external storage connectivity without changing internal cabling layout.

Suitable for

• Connecting internal SATA drives to external eSATA enclosures
• Expanding external storage options on desktop PCs
• Users who need fast external SATA connections for backups or large file transfers

Key specifications

• Brand: DELOCK
• Model / MPN: 65116
• EAN: 4043619651160
• Connector 1: eSATA (external)
• Connector 2: 2 × SATA 7-pin (internal)
• Mounting: standard PCI slot bracket

How to use

Turn off and unplug the PC, open the case, and insert the slotbracket into a free standard PCI slot opening. Inside the case, connect the two SATA 7-pin connectors of the bracket to available internal SATA ports on the motherboard or SATA controller. Secure the bracket to the case, close the chassis, and power on the system. External eSATA devices can then be connected to the external eSATA ports for data transfer.

Recommendations

Use compatible eSATA cables and ensure the internal SATA ports support the desired transfer speed. For hot-plugging, check that the motherboard or controller supports eSATA hot-swap; always back up important data before connecting or disconnecting drives.
