StarTech.com Cavo seriale DB9 a 3,5 mm da 1 m per la configurazione di dispositivi seriali, cavo da connettore maschio RS232 DB9 a 3,5 mm, utilizzato per la calibrazione di proiettori, digital signage e televisori tramite il connettore audio

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

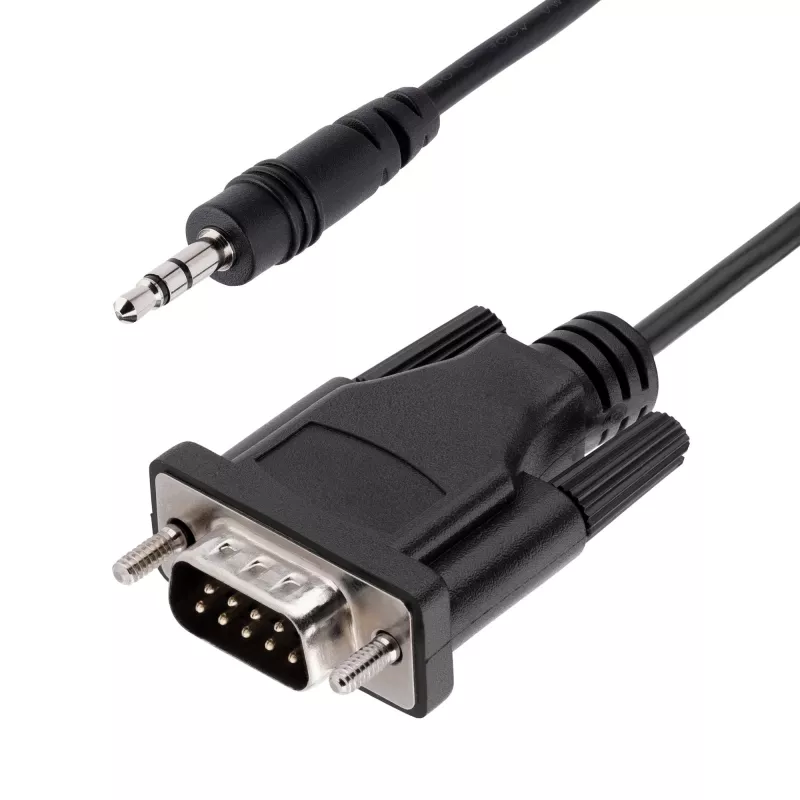

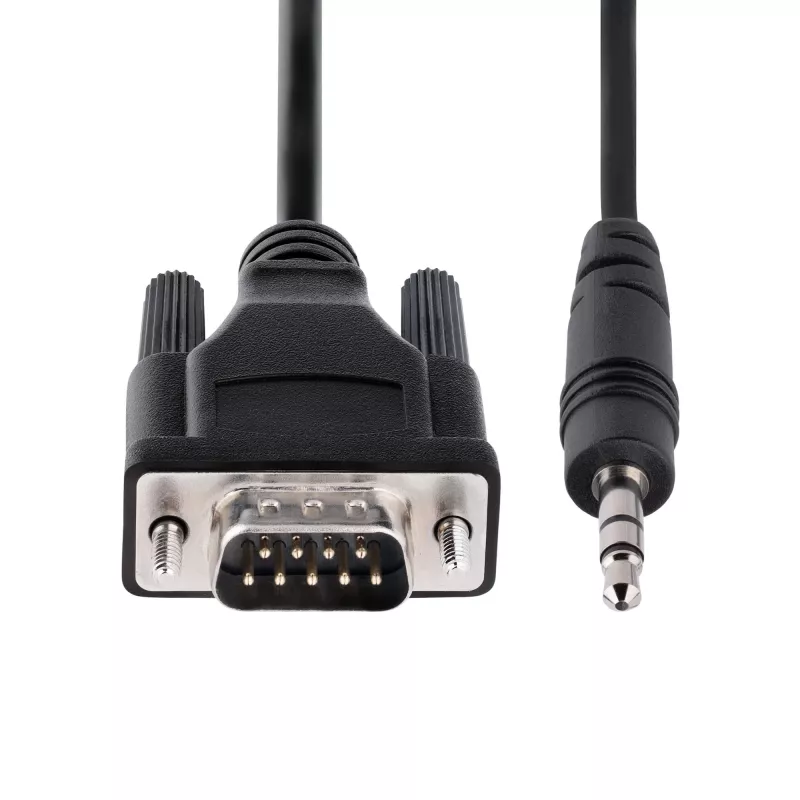

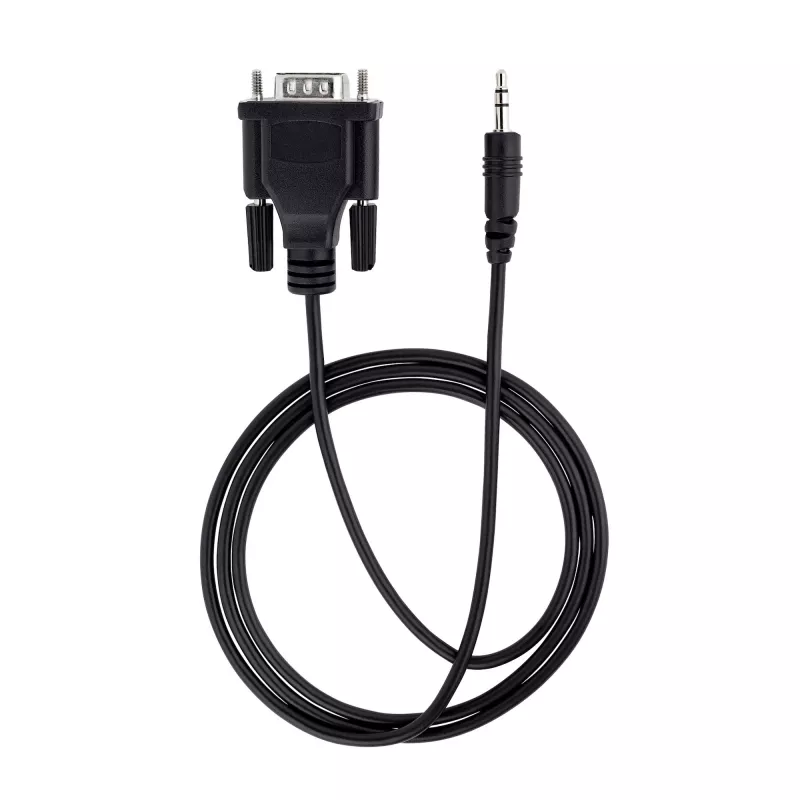

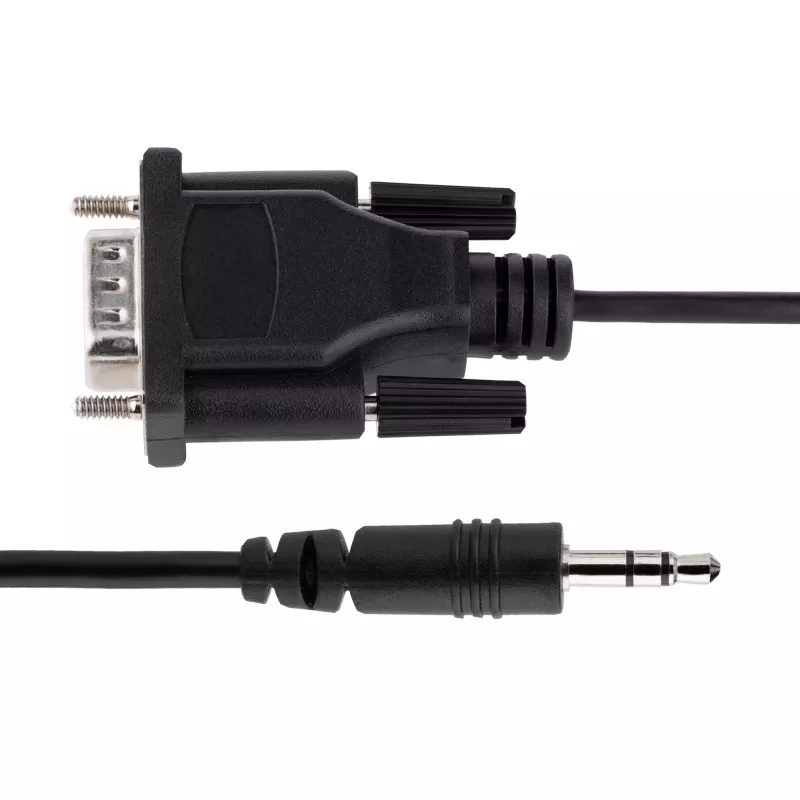

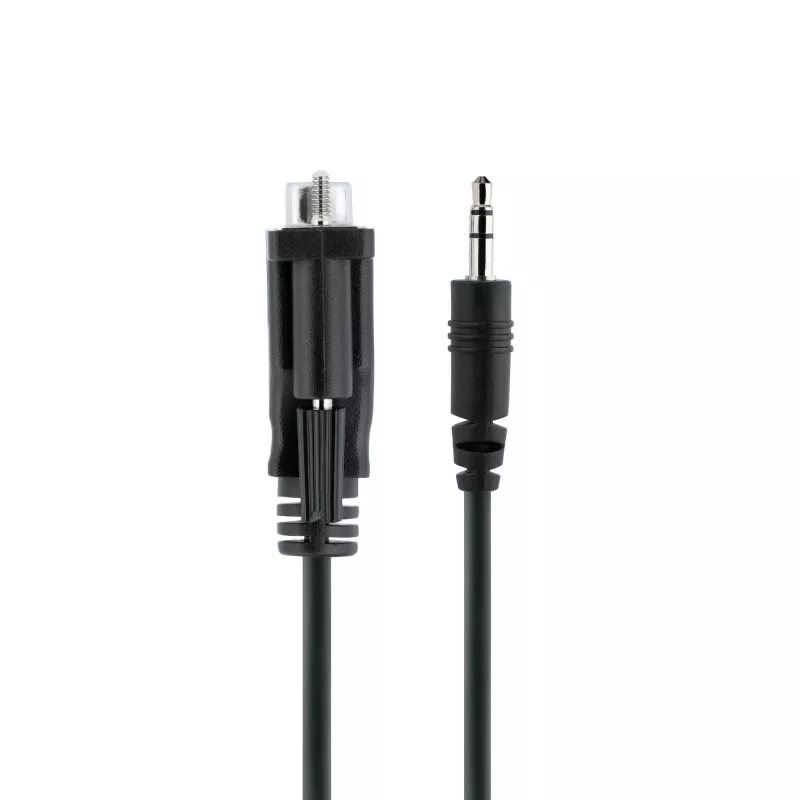

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.

High Quality Construction

The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.

Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.

DB9 Serial to 3.5mm Pinout

DB9 Pin 3 to 3.5mm Tip

DB9 Pin 2 to 3.5mm Ring

DB9 Pin 5 to 3.5mm Sleeve

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 1 m. Product colour: Black
