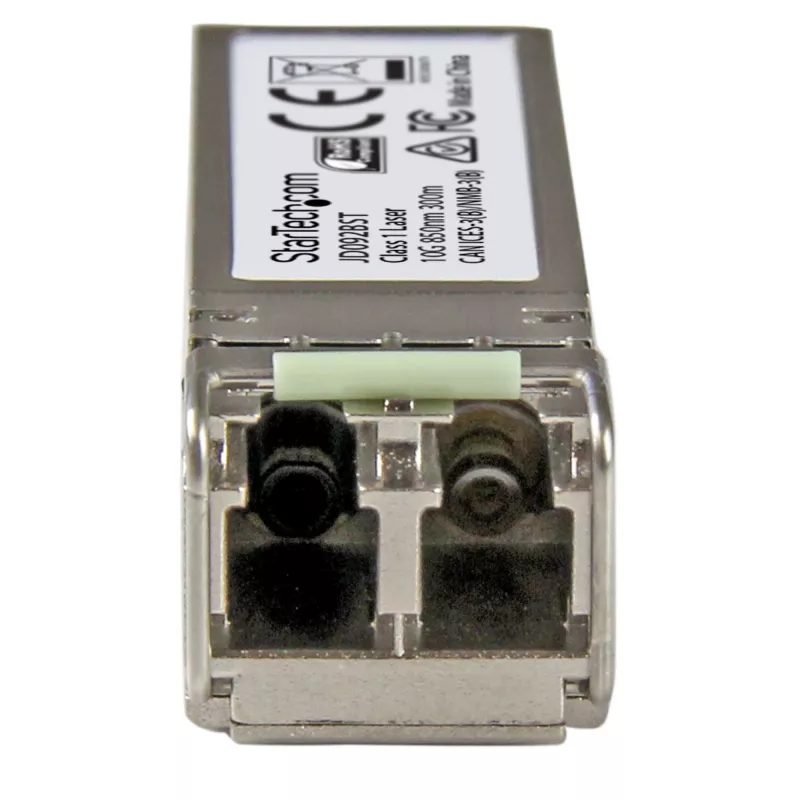

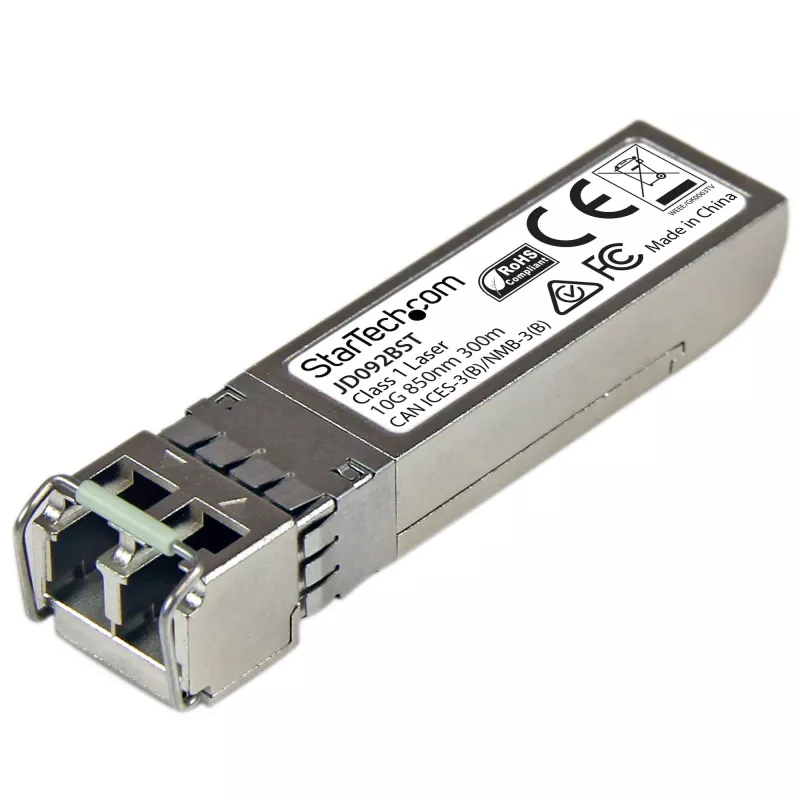

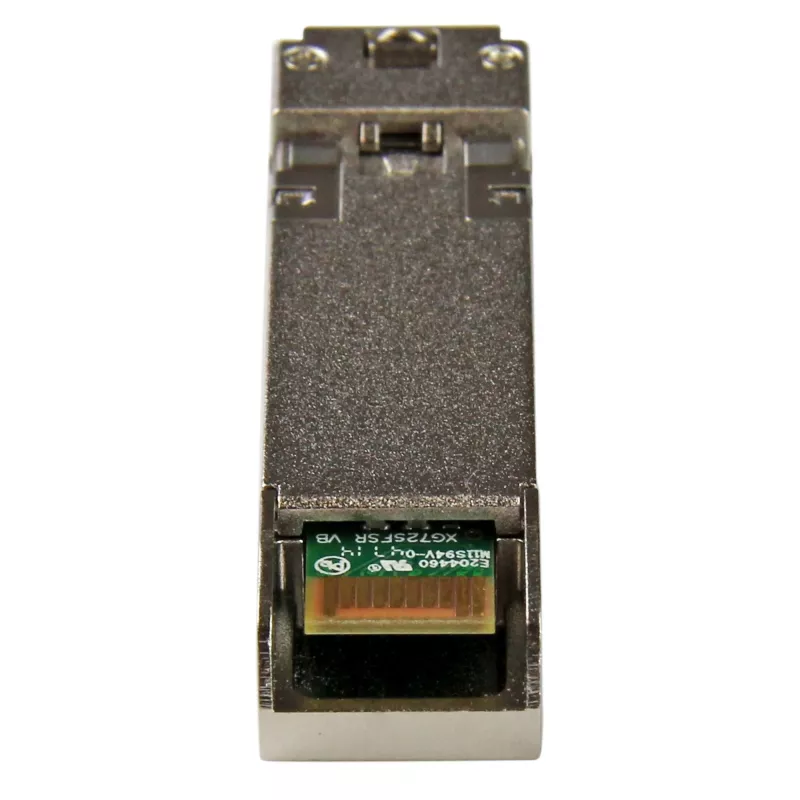

StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR

StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
StarTech.com modulo ricetrasmettitore SFP+ compatibile HP JD092B - 10GBASE-SR
204,55 €
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime WarrantyThe JD092BST is an HP JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR c... Leggi di più
Stock 10 Codice 2392322 Marca StarTech Modello JD092BST Garanzia 2 anni

Spedizioni e resi

Consegna stimata Venerdì, Ottobre 16
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The JD092BST is an HP JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).

Technical Specifications:

Wavelength: 850 nm

Maximum Data Transfer Rate: 11.1 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 300 m (984 ft)

MTBF: 1,967,709 hours

Power Consumption: Less than 1.2 Watts

Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% compatibility with HP JD092B guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards

StarTech.com HP JD092B Compatible SFP+ Transceiver Module - 10GBASE-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 11100 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1967709 h. Power consumption (typical): 1.2 W. Compliance certificates: RoHS, Certification: CE, FCC, UL. Width: 14 mm, Depth: 57 mm, Height: 13 mm

Punti salienti
  • SFP+ Fiber optic 11100 Mbit/s
  • Wavelength: 850 nm
  • Hot-swap
  • Power consumption (typical): 1.2 W
Specifiche
Altezza
13 mm
Altezza cartone esterno
348 mm
Altezza confezione
33 mm
Certificati di conformità
RoHS
Certificazione
CE, FCC, UL
Codice Sistema Armonizzato (HS)
85369010
Colore del prodotto
Silver
Connettore in fibra ottica
LC
Consumo energetico (tipico)
1.2 W
Digital Diagnostics Monitoring (DDM)
Yes
Distanza massima di trasferimento
300 m
Fibra multimodale (MMF) supportata
Yes
Hot-swap
Yes
Larghezza
14 mm
Larghezza cartone esterno
350 mm
Larghezza confezione
118 mm
Lunghezza cartone esterno
411 mm
Lunghezza d'onda
850 nm
Materiale della scocca
Aluminium
Multiplexing a divisione di lunghezza d'onda (WDM)
No
Peso
17 g
Peso confezione
44 g
Prodotti per cartone esterno
100 pc(s)
Profondità
57 mm
Profondità confezione
93 mm
Quantità per confezione
1 pc(s)
Sistema duplex
Full
Standard di rete
IEEE 802.3ae
Standard transceiver SFP
SR
Temperatura di esercizio (T-T)
0 - 70 °C
Temperatura di stoccaggio (T-T)
-40 - 85 °C
Tempo medio tra i guasti (MTBF)
1967709 h
Tipo di interfaccia
SFP+
Tipo di transceiver SFP
Fiber optic
Umidità relativa di esercizio (H-H)
30 - 75%
Velocità massima di trasferimento dati
11100 Mbit/s
