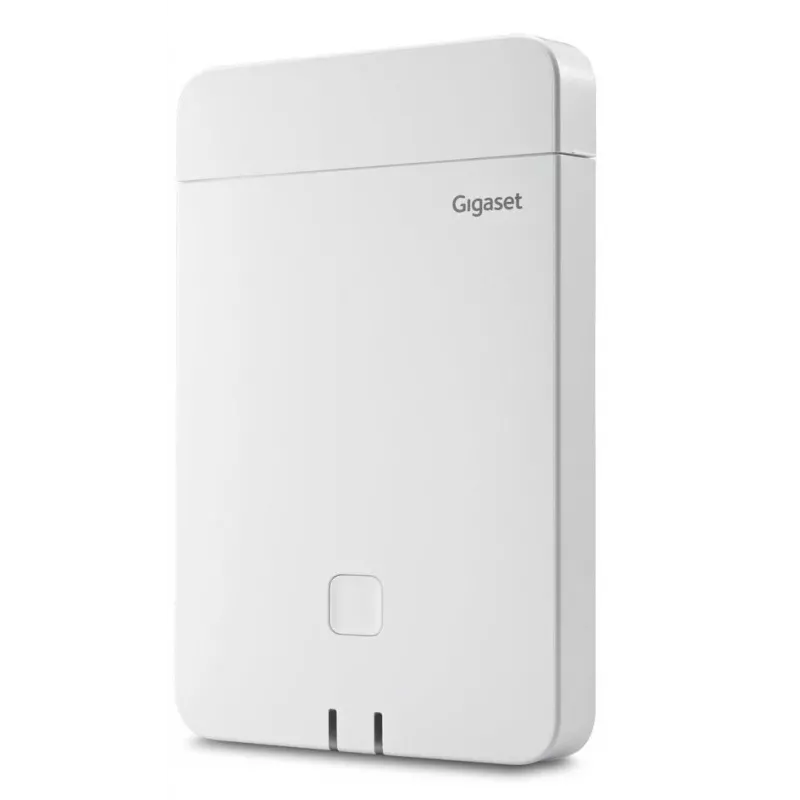

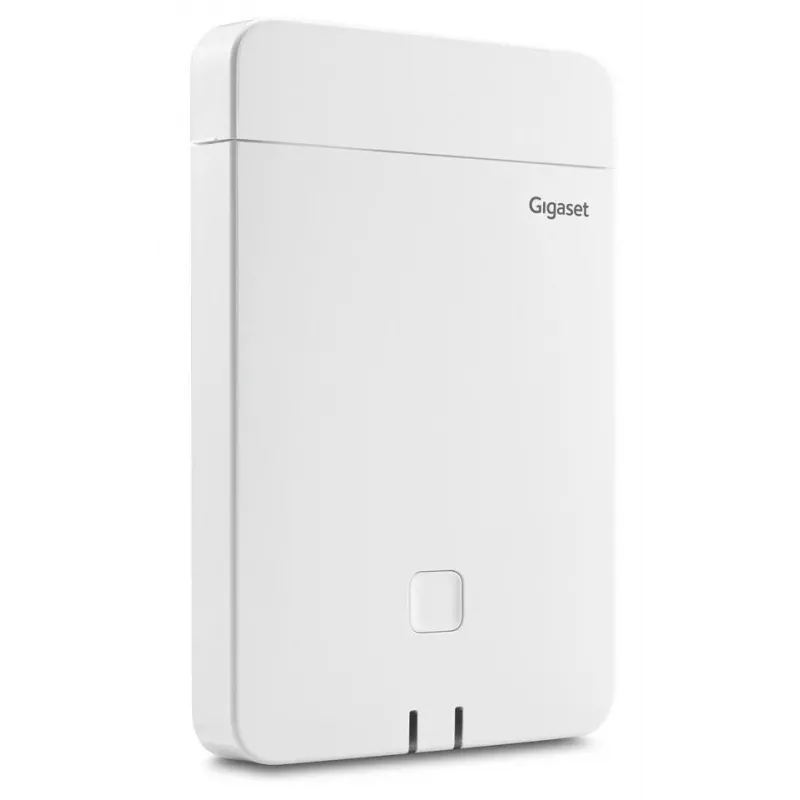

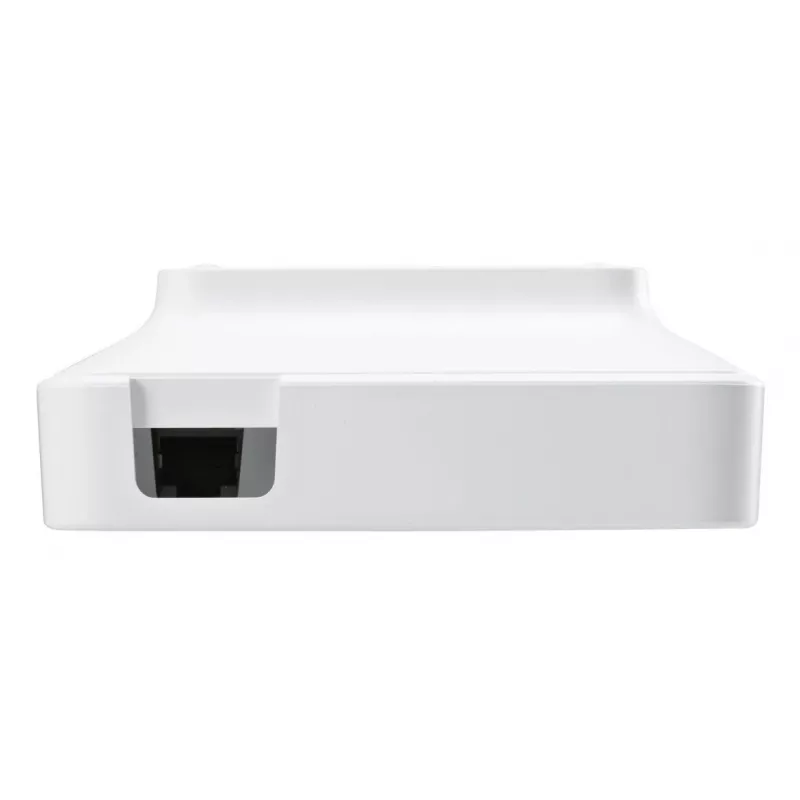

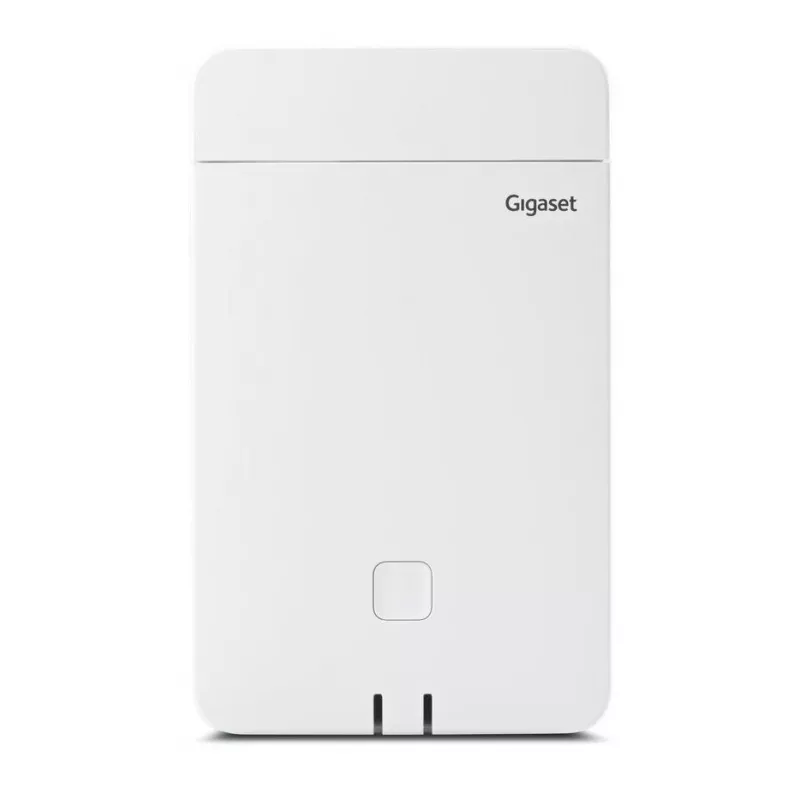

Stazione base DECT Gigaset N770 IP Pro – 120 canali, HTTPS/SIPS/SRTP/SSL/TLS, interno 50 m, esterno 300 m, bianca

The Gigaset N770 IP PRO is a DECT IP multi-cell base station designed for small to medium-sized businesses that need scalable cordless telephony. As an integrator and DECT manager, one N770 IP PRO can manage up to 20 N770 IP PRO base stations and support up to 100 handsets and SIP accounts with up to 30 simultaneous calls. The device supports industry-standard encryption such as SRTP, SIPS and TLS, offers centralized contact management (LDAP, XML, xHTML integration) and is compatible with a wide range of on-premise and cloud telephone systems. Compact and mountable on wall or ceiling, it can be powered via PoE and includes features for Alarm, Messaging and Location (AML) under licence.

Advantages

The Gigaset N770 IP PRO provides scalable multi-cell roaming and seamless handover across up to 20 base stations, enabling wide coverage for growing businesses. It supports a high number of users and concurrent calls (up to 100 handsets, 30 parallel calls) to maintain availability during peak usage. Security is implemented end-to-end with SRTP/SIPS/TLS/HTTPS and encrypted directories, while zero‑touch auto-provisioning and IPUI-based setup simplify deployment and maintenance. Additional licence-based functions such as Alarm, Messaging and Location (AML) extend functionality for demanding environments like healthcare or industry.

Suitable for

• Small and medium-sized offices requiring cordless telephony with roaming
• Industrial sites and warehouses needing reliable handset communication
• Healthcare facilities that require alarm, messaging and location services
• Integrations with on-premise or cloud VoIP telephone systems

Key specifications

• Max number of handsets supported: 100
• Maximum parallel calls/conferences: 30
• Channels: up to 120 DECT channels
• Security protocols: HTTPS, SIPS, SRTP, SSL/TLS
• Directory integration: LDAP, XML, xHTML support

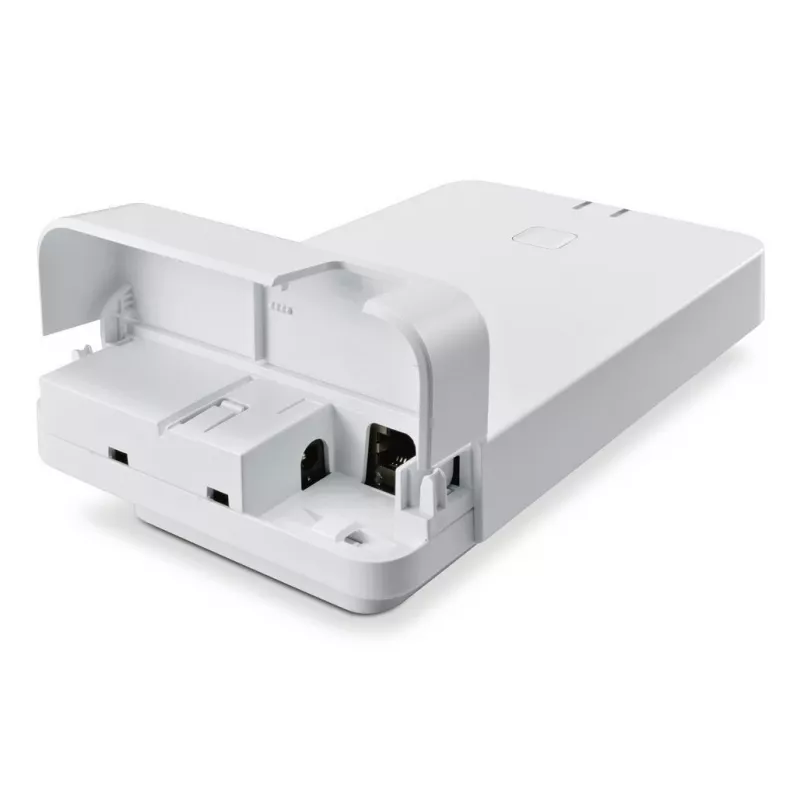

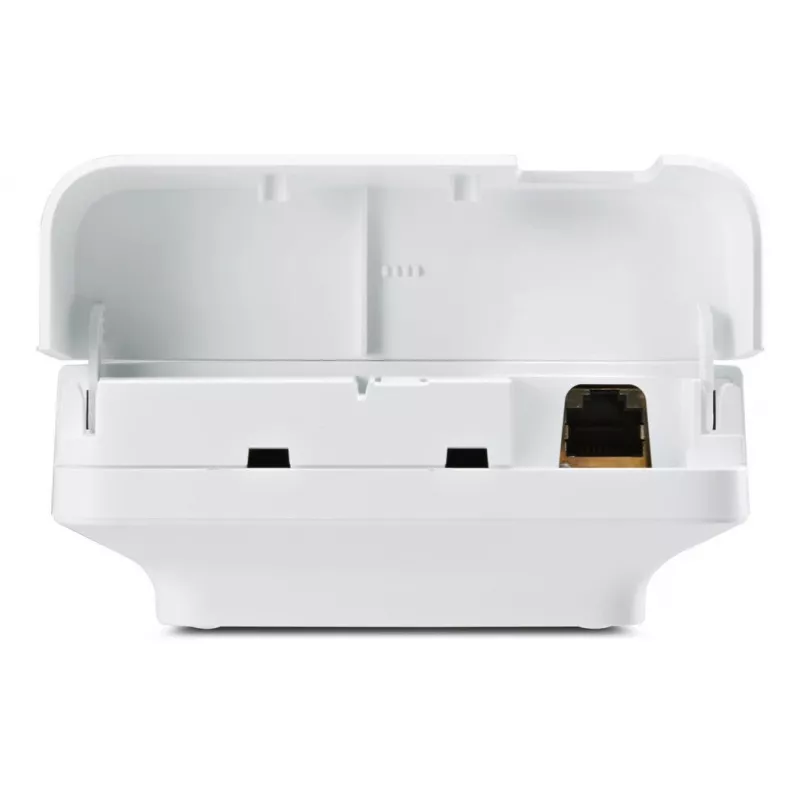

• Power: Power over Ethernet (PoE); optional external PSU
• Range: indoor up to 50 m, outdoor up to 300 m
• Compatibility: compatible with Gigaset S700H PRO, R700H PRO, R700H protect PRO, SL800H PRO and SL850H PRO handsets

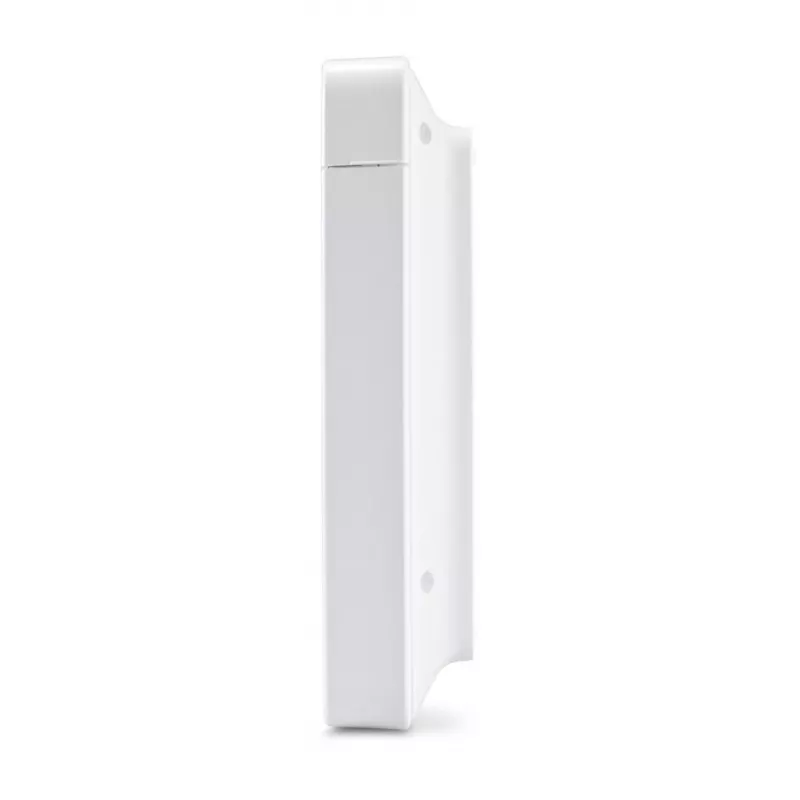

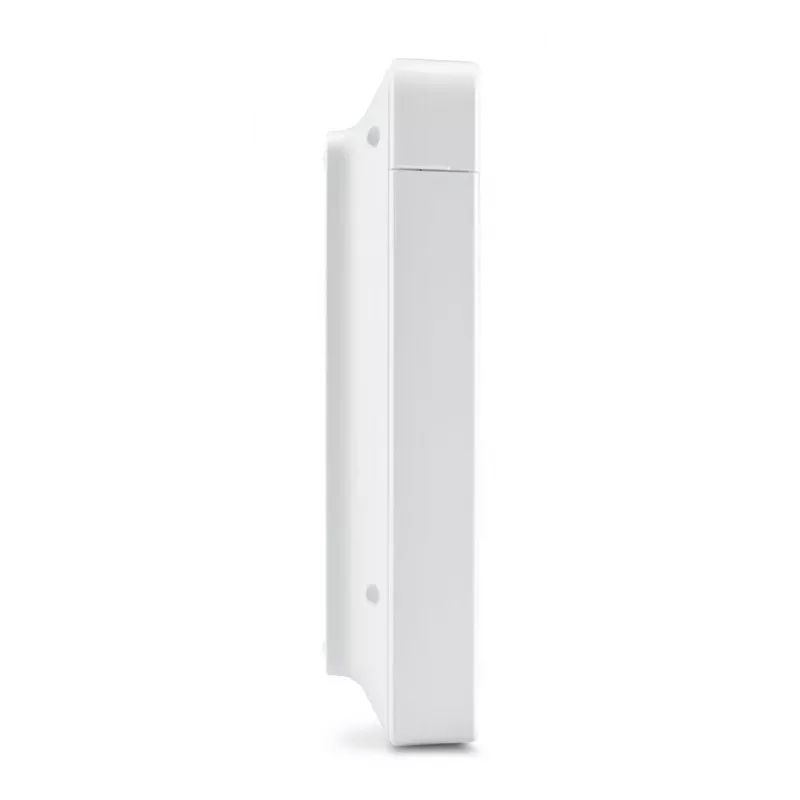

• Physical: colour white; dimensions 110×42×180 mm; weight 220 g

How to use

Install the Gigaset N770 IP PRO on a wall or ceiling to optimise coverage and connect it to your LAN with PoE or an optional power supply. Configure the unit as an integrator+DECT manager to link up to 20 base stations into a single multi-cell network for seamless roaming. Use the auto-provisioning (IPUI) feature or manual provisioning to register SIP accounts and handsets, and integrate central directories via LDAP or XML. Apply licence keys to enable Alarm, Messaging and Location (AML) features when required.

Recommendations

For best performance, deploy base stations with overlapping coverage for seamless handover, keep firmware up to date via the secure provisioning channel, and use LDAP(S) for centralized contact management. Enable SRTP/SIPS/TLS to ensure end-to-end call encryption, and plan capacity to allow up to 30 simultaneous calls for peak periods.
