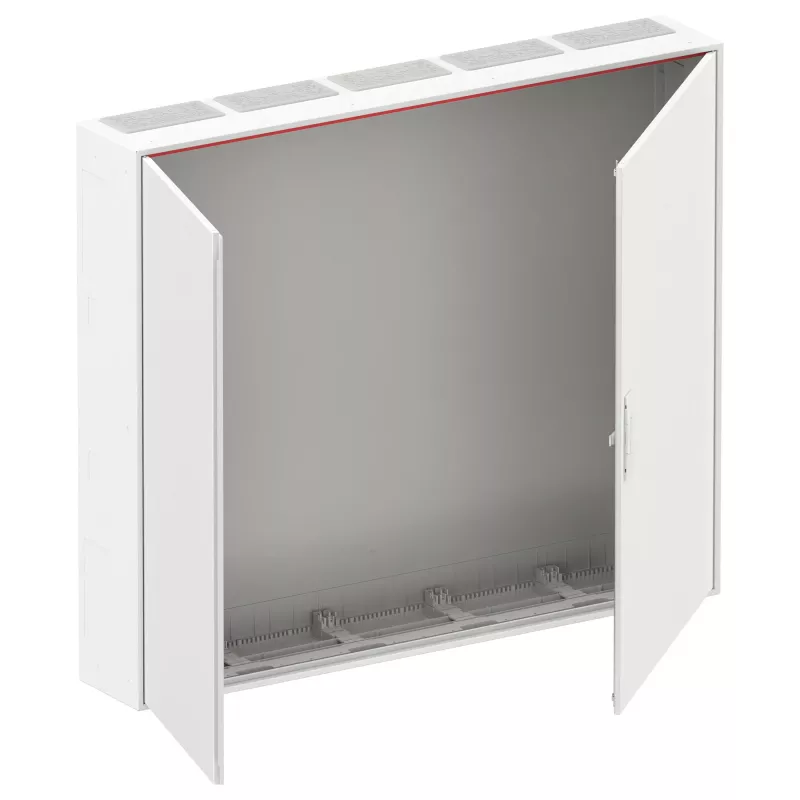

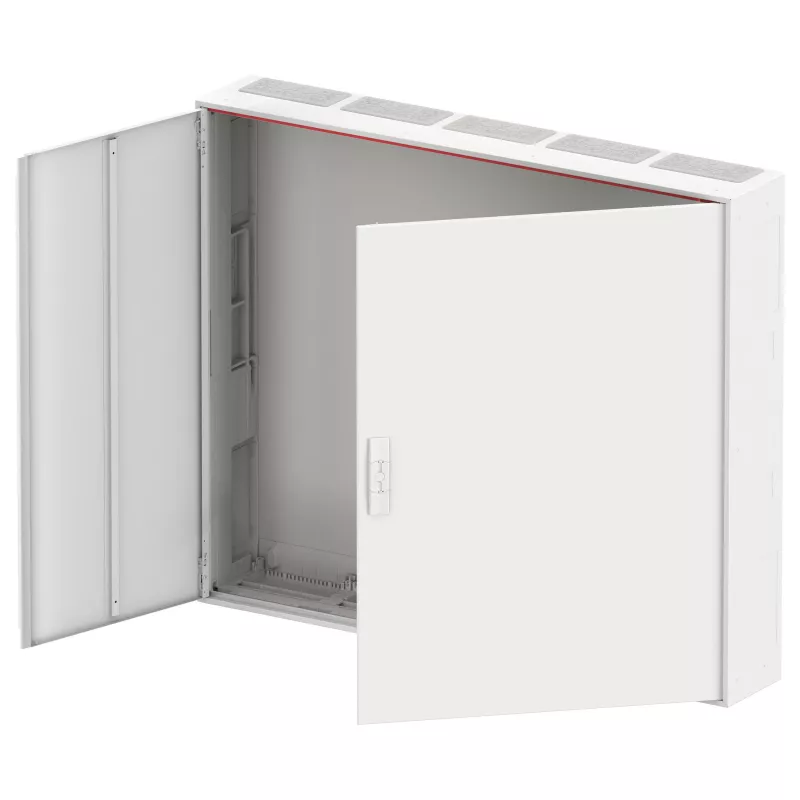

Striebel & John armadio a parete vuoto 5FB 7 file A57

The Striebel & John 2CPX052034R9999 is a high-quality wall-mounted empty cabinet designed for electrical distribution and meter installations. With its robust steel sheet construction and IP44 protection, this cabinet is suitable for indoor use in residential and commercial buildings. The 7-row design offers 504 module units (72 TE per row), providing ample space for modular devices. The cabinet features a white (RAL 9016) finish, a steel door with a reversible right hinge, and a double-bit lock for security. Pre-punched knockouts at the top, bottom, and rear allow for flexible cable entry. This empty enclosure is part of the 5FB series from Striebel & John, ensuring reliability and compliance with DIN VDE and IEC standards.

Advantages

This cabinet offers a spacious interior with 7 rows and 504 module units, making it ideal for large-scale electrical installations. The IP44 protection class provides dust and splash water resistance, while the protection class II ensures safety without the need for an earth connection. The reversible door hinge allows for flexible installation, and the double-bit lock provides secure access. The pre-punched knockouts simplify cable entry, and the surface-mounting design makes installation straightforward.

Suitable for

• Electrical distribution boards
• Meter installations
• Residential and commercial buildings
• Indoor use where IP44 protection is required

Key specifications

• Brand: Striebel & John
• Model: 2CPX052034R9999
• EAN: 4011617520344
• Enclosure type: Wall-mounted cabinet
• Design: Empty enclosure
• Material: Steel sheet
• Colour: White (RAL 9016)
• Protection class (IP): IP44
• Protection class (safety): SKII (Protection Class II)
• Number of module rows: 7
• Module units per row: 72 TE
• Total module units: 504 TE
• Number of fields: 5FB
• Door type: Steel door
• Door hinge: Right (reversible)
• Lock type: Double-bit lock
• Cable entry: Pre-punched knockouts (top, bottom, rear)
• Application: Electrical distribution, meter installations
• Standards: DIN VDE, IEC
• Mounting type: Surface-mounted
• Suitable for: Indoor use

Recommendations

For optimal installation, ensure that the cabinet is mounted on a flat, sturdy wall. Use appropriate cable glands for the knockouts to maintain IP44 protection. This cabinet is designed to accommodate modular devices from Striebel & John and other compatible brands.
