Striebel & John DA37CD Distributore completo, da parete, IP44, 1 posto contatore, 7 campi di distribuzione, bianco

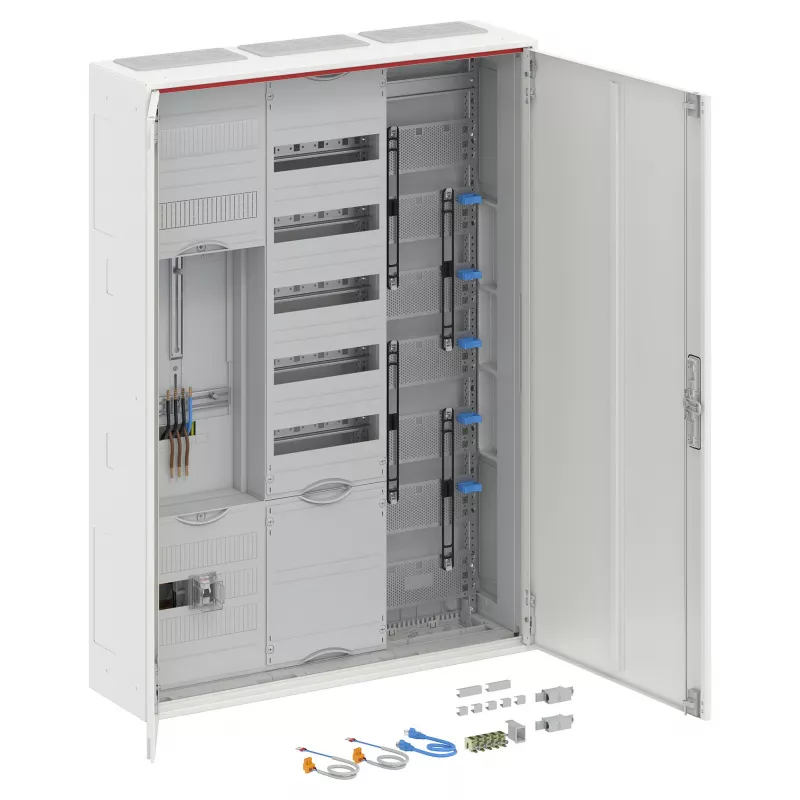

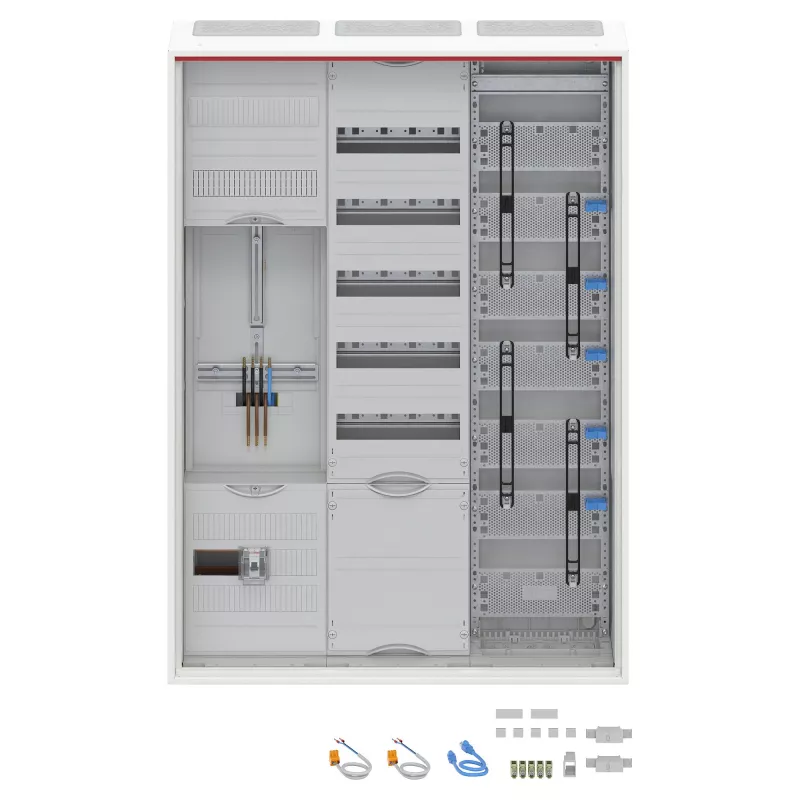

The Striebel & John DA37CD is a high-quality complete distribution cabinet designed for surface-mounted installation. It offers a robust solution for electrical distribution in residential and commercial buildings, complying with VDE-AR-N 4100 standards. The cabinet is pre-wired for meter, distribution, main switch, and APZ fields, ensuring quick and efficient setup.

Advantages

This distribution cabinet provides a compact yet comprehensive solution for electrical distribution. Its IP44 protection class makes it suitable for indoor and outdoor use, while the powder-coated sheet steel construction ensures durability. The lockable steel door with double-bit lock enhances security.

Suitable for

• Residential buildings requiring a single meter and multiple distribution circuits
• Commercial installations needing a surface-mounted distribution board
• Applications where VDE-AR-N 4100 compliance is required

Key specifications

• Product Type: Complete Distribution Cabinet
• Mounting Type: Surface-mounted (AP)
• Number of Meter Positions: 1
• Number of Distribution Fields: 7
• Number of Main Switch Positions: 1
• Number of APZ Fields: 2
• Protection Class: IP44
• Material: Sheet steel, powder-coated
• Colour: White (RAL 9016)
• Door: Steel door, lockable, 2 doors
• Busbar System: 5-pole, 250 A
• Rated Voltage: 230/400 V AC
• Application Standard: VDE-AR-N 4100 compliant
• Cable Entry: Top and bottom, pre-punched
• Lock Type: Double-bit lock

Recommendations

For optimal installation, ensure that the cabinet is mounted on a flat, sturdy surface. Use appropriate cable glands for cable entry. This cabinet is ideal for new constructions or retrofitting in existing buildings.
