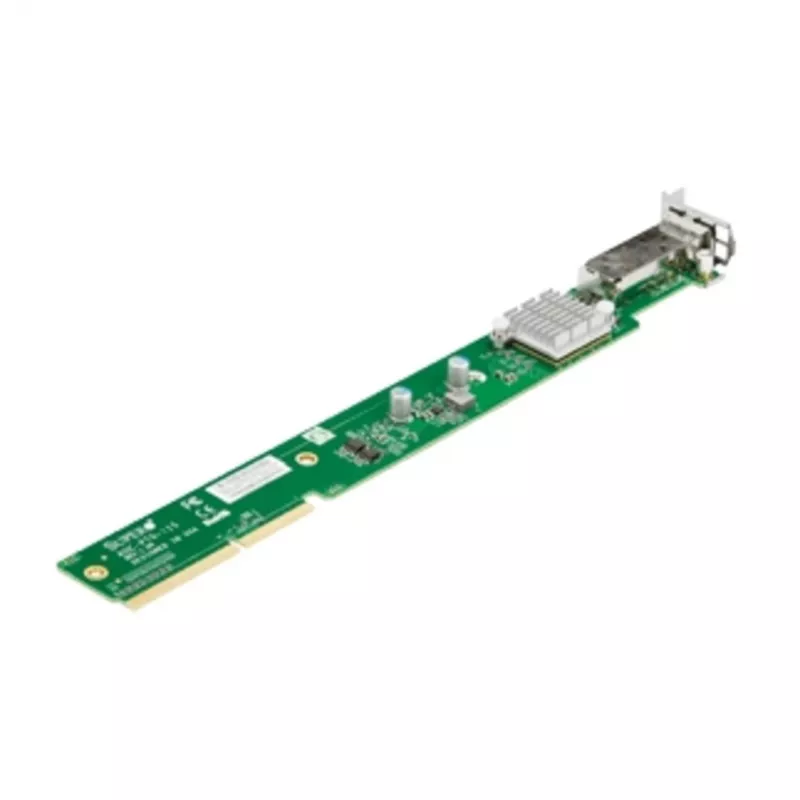

Supermicro AOC-PTG-I1S Adattatore di rete single-port SFP+ 10GbE PCIe 2.0 x8 low-profile

The Supermicro AOC-PTG-I1S is a high-performance single-port SFP+ network adapter designed for select Supermicro 1U servers and motherboards. Leveraging the Intel 82599ES controller, it delivers reliable 10 Gigabit Ethernet connectivity with low power consumption and advanced virtualization features.

Advantages

This proprietary low-profile adapter offers exceptional throughput for bandwidth-intensive applications, supports jumbo frames up to 15.5 KB, and includes PXE boot, VLAN tagging, and teaming capabilities. Its power-efficient design (<10W typical) ensures minimal impact on system thermals.

Suitable for

• Supermicro 1U servers requiring integrated 10GbE connectivity
• Data center environments needing high-speed network links
• Virtualized deployments leveraging SR-IOV and VMDq
• Storage networks using iSCSI or FCoE

Key specifications

• Controller: Intel 82599ES
• Ports: 1 x SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Bus Interface: PCI Express 2.0 x8
• Form Factor: Proprietary 1U Low-Profile
• Jumbo Frame Support: Up to 15.5 KB
• Power Consumption: <10W (Typical)
• LED Indicators: Link/Activity
• Supported Cabling: SFP+ Direct Attach Copper (DAC), Fiber Optic (with SFP+ transceivers)
• Virtualization: Intel VMDq, SR-IOV
• OS Support: Windows Server, Linux, VMware ESXi, FreeBSD

Recommendations

Ensure compatibility with your Supermicro server or motherboard before purchase. This adapter uses a proprietary bracket and is not compatible with standard PCIe slots without proper adapter.
