Supermicro CBL-0118L-02 Cavo breakout Mini-SAS a SATA, 4-lane, 23 cm

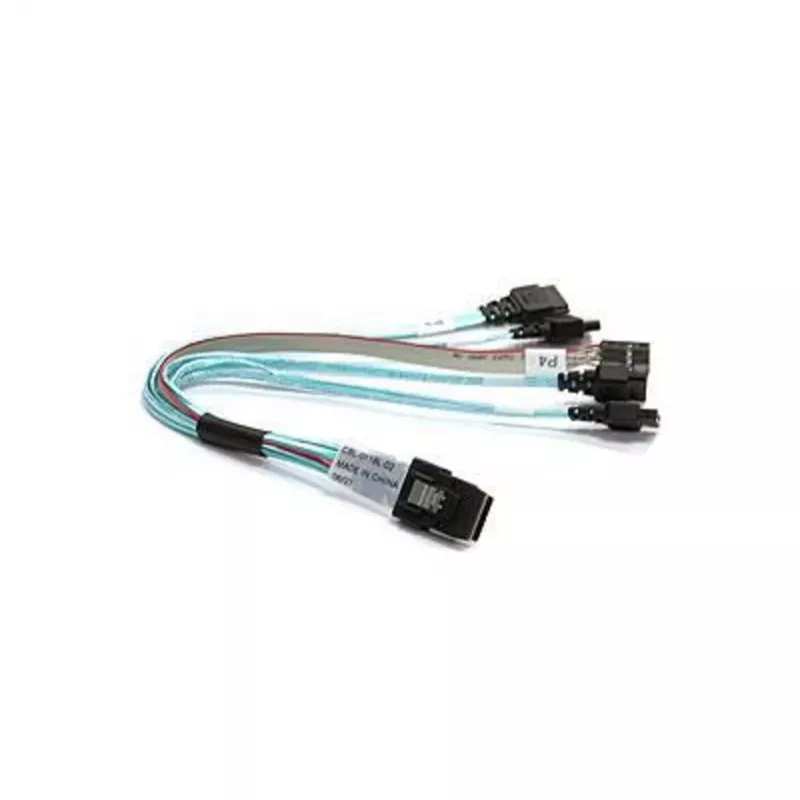

The Supermicro CBL-0118L-02 is a high-quality Mini-SAS to SATA breakout cable designed for internal storage connectivity in servers, workstations, and storage systems. It features a 36-pin Mini-SAS SFF-8087 connector on one end and four 7-pin SATA connectors on the other, enabling connection between SAS/SATA RAID controllers or HBAs and multiple SATA drives. With a length of 23 cm (9.06 inches) and support for data transfer rates up to 6 Gbps per channel, this cable ensures reliable and fast data transmission.

Advantages

Reliable internal storage connectivity with high-speed data transfer up to 6 Gbps per channel. Compact 23 cm length ideal for tight server enclosures. Durable construction with copper conductors and PVC jacket for long-lasting performance. RoHS compliant for environmental safety.

Suitable for

• Connecting SAS/SATA RAID controllers to SATA drives
• Internal storage expansion in servers and workstations
• Storage system backplane connections

Key specifications

• Cable Type: Mini-SAS to SATA Breakout Cable
• Connector A: Mini-SAS SFF-8087 (36-pin)
• Connector B: 4x SATA (7-pin)
• Cable Length: 23 cm (9.06 inches)
• Number of Lanes: 4
• Data Transfer Rate: Up to 6 Gbps per channel
• Application: Internal Storage Connectivity
• Compatibility: SAS/SATA RAID Controllers, HBAs, Backplanes
• Connector Type: Straight on both ends
• Conductor Material: Copper
• Jacket Material: PVC
• RoHS Compliance: Yes

Recommendations

For optimal performance, ensure compatibility with your controller and drives. This cable is designed for internal use only.
