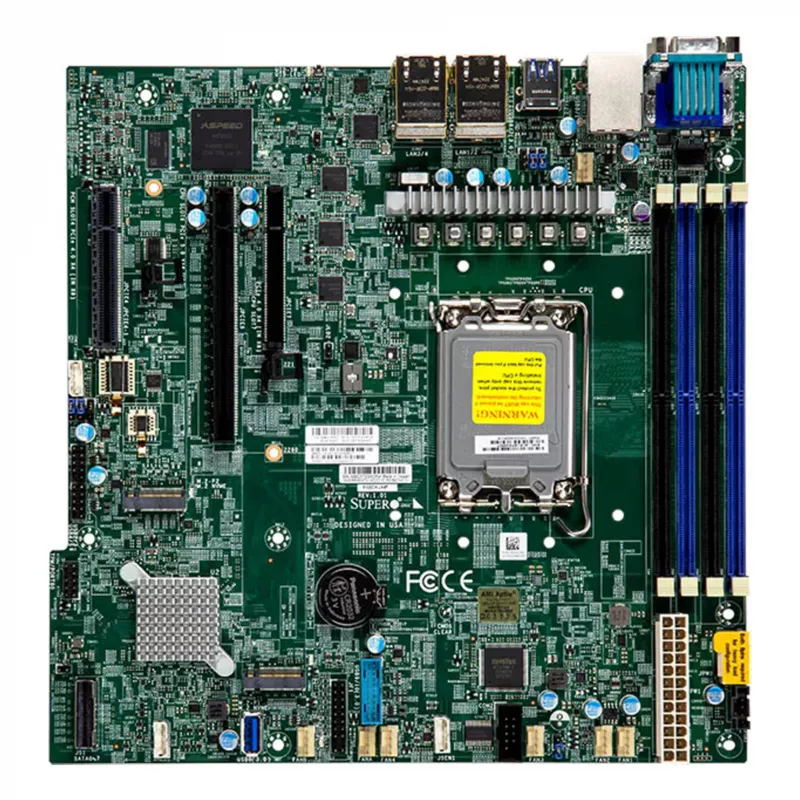

Supermicro MBD-X13SCH-LN4F-O Scheda madre Micro-ATX, LGA1700, Intel C266, DDR5, 4x 1GbE, IPMI

The Supermicro MBD-X13SCH-LN4F-O is a high-performance micro-ATX motherboard designed for Intel Xeon E-2400/E-2300 and 13th/12th Gen Core processors. Featuring the Intel C266 chipset, it supports DDR5 ECC/non-ECC memory, four Gigabit Ethernet ports, and comprehensive management via IPMI 2.0. Ideal for servers and workstations requiring reliability and connectivity.

Advantages

With support for the latest Intel processors and DDR5 memory, this motherboard delivers exceptional performance for demanding applications. The four 1GbE LAN ports provide robust networking capabilities, while IPMI 2.0 with KVM over IP enables remote management. The micro-ATX form factor fits compact chassis without sacrificing expansion options.

Suitable for

• Small to medium business servers
• Workstations for content creation or engineering
• Edge computing and network appliances
• Virtualization and hypervisor hosts

Key specifications

• Form Factor: Micro-ATX
• CPU Socket: LGA 1700
• Chipset: Intel C266
• Memory: 4x DDR5 DIMM slots, up to 128GB, up to 4800MHz
• Expansion: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 (in x8), 1x PCIe 4.0 x4
• Storage: 2x M.2 NVMe (PCIe 4.0 x4), 8x SATA3 (6Gbps)
• Networking: 4x 1GbE LAN (Intel i210-AT)
• Video: 1x VGA (ASPEED AST2600 BMC)
• USB: 2x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 Type-A
• Management: IPMI 2.0 with KVM over IP
• Power: 24-pin ATX, 8-pin EPS

Recommendations

This motherboard is an excellent choice for building a cost-effective server or workstation with Intel Xeon E-2400 or 13th Gen Core processors. Its four LAN ports and IPMI make it ideal for network-intensive environments. Pair with ECC DDR5 memory for maximum reliability.
