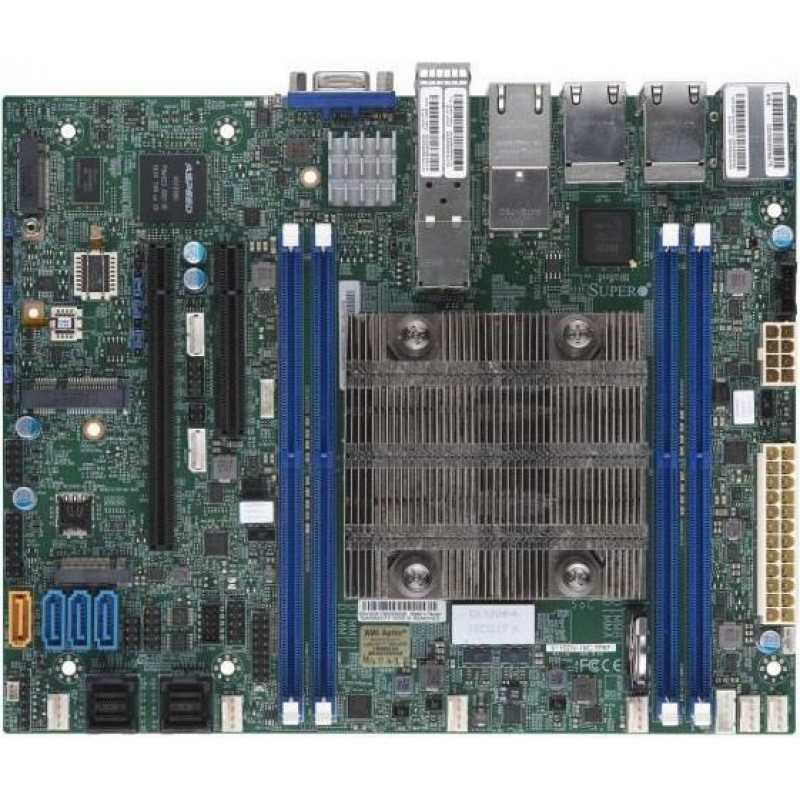

Supermicro scheda madre X11SDV-16C-TP8F Bulk Pack

Deploy edge computing nodes, network appliances, or embedded servers with confidence using the Supermicro X11SDV-16C-TP8F. This Mini-ITX board packs a 16-core Intel Xeon D-2183IT processor, dual 10GbE and dual 1GbE networking, and flexible storage options into a compact 6.7" x 6.7" footprint—ideal for space-constrained environments where performance cannot be compromised.

Key specifications

• Integrated Intel Xeon D-2183IT processor, 16 cores / 32 threads, 2.1 GHz base, 3.0 GHz turbo, 80W TDP
• 4x DDR4 DIMM slots supporting ECC RDIMM/LRDIMM, up to 256GB LRDIMM or 128GB RDIMM, speeds up to 2666 MHz
• Networking: 2x 10GbE (Intel X557-AT2) + 2x 1GbE (Intel I210-AT), plus dedicated IPMI LAN (Realtek RTL8211E)
• Storage: 4x SATA3 (6Gbps), 1x M.2 NVMe (PCIe 3.0 x4, 2280/22110), 1x M.2 SATA/NVMe (PCIe 3.0 x2, 2242/2280), 1x U.2 NVMe (PCIe 3.0 x4)
• Expansion: 1x PCI-E 3.0 x16 slot
• Rear I/O: 2x USB 3.0, VGA (via ASPEED AST2500 BMC)
• Power: 24-pin ATX + 4-pin 12V connectors
• Operating temperature: 0°C to 60°C

Why choose it

This board delivers server-grade reliability and performance in a compact form factor. The integrated Xeon D processor eliminates the need for a separate CPU, simplifying assembly and reducing points of failure. Dual 10GbE ports provide high-speed networking for data-intensive tasks, while IPMI 2.0 with dedicated LAN enables remote management even when the system is powered off.

Ideal use cases

• Edge computing and IoT gateways requiring high core counts and low power
• Network appliances such as firewalls, VPN concentrators, and SD-WAN devices
• Compact virtualization hosts for branch offices or remote sites
• Embedded systems in industrial automation or digital signage

Good to know

The board supports ECC memory for data integrity, and the multiple M.2/U.2 slots allow for fast NVMe storage without sacrificing PCIe expansion. With a wide operating temperature range, it can be deployed in non-climate-controlled environments. Note: This is a bulk pack version without retail packaging.
