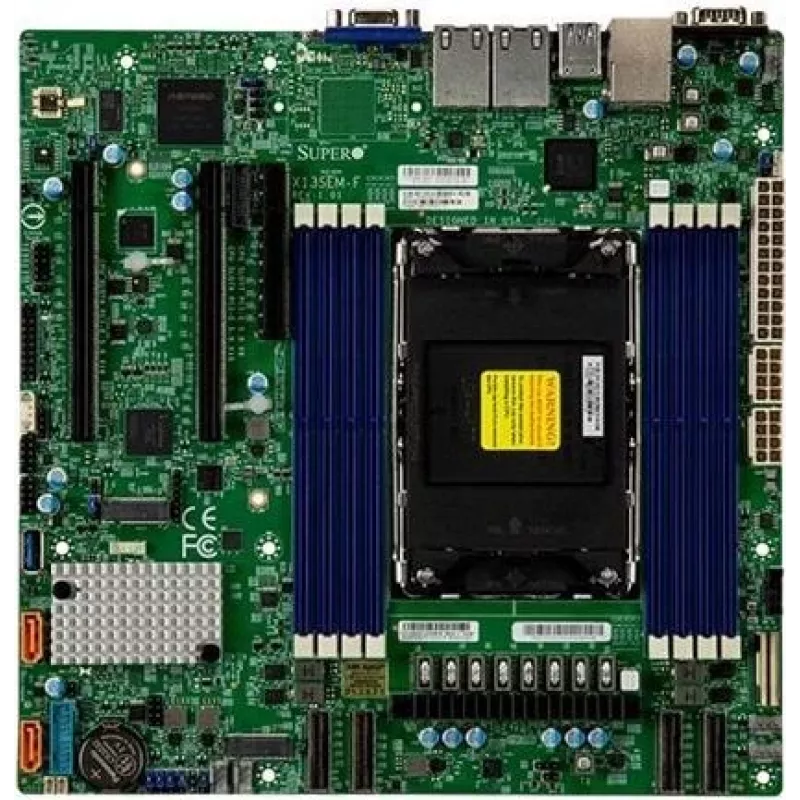

Supermicro X13SEM-F scheda madre Micro ATX, LGA 4677, Intel C741, DDR5, IPMI

The Supermicro X13SEM-F is a high-performance micro ATX motherboard designed for Intel Xeon E-2400 series processors. Featuring the Intel C741 chipset, it supports DDR5 ECC memory, PCIe 5.0, and dual 1GbE LAN with dedicated IPMI management. Ideal for server and workstation applications requiring reliability and scalability.

Advantages

Supports the latest Intel Xeon E-2400 processors with LGA 4677 socket, offering excellent performance for entry-level servers. The micro ATX form factor fits compact chassis while providing extensive expansion options including PCIe 5.0 and multiple storage interfaces. Integrated IPMI 2.0 with KVM over IP enables remote management, reducing downtime and maintenance costs.

Suitable for

• Small to medium business servers
• Edge computing and IoT gateways
• Workstations for data analysis and virtualization
• Network appliances and storage servers

Key specifications

• Form Factor: Micro ATX
• CPU Socket: Single Socket E (LGA 4677)
• Chipset: Intel C741
• Supported CPUs: Intel Xeon E-2400 Series
• Memory: 4x DDR5 DIMM slots, up to 128GB ECC UDIMM, 4800MHz
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 (in x8), 1x PCIe 4.0 x4
• Storage: 8x SATA3 (6Gbps), 2x M.2 NVMe (PCIe 4.0 x4)
• LAN: 2x 1GbE (Intel i210-AT), 1x Dedicated IPMI LAN
• Video: 1x VGA (ASPEED AST2600 BMC)
• USB Rear: 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 Type-A
• Internal USB: 1x USB 3.2 Gen1 header (2 ports), 1x USB 2.0 header (2 ports)
• Management: IPMI 2.0 with KVM over IP
• Power: 24-pin ATX, 8-pin EPS 12V

Recommendations

For optimal performance, pair with Intel Xeon E-2400 processors and DDR5 ECC memory. Use with a compatible micro ATX chassis and power supply. Ideal for building a reliable, remotely manageable server.
