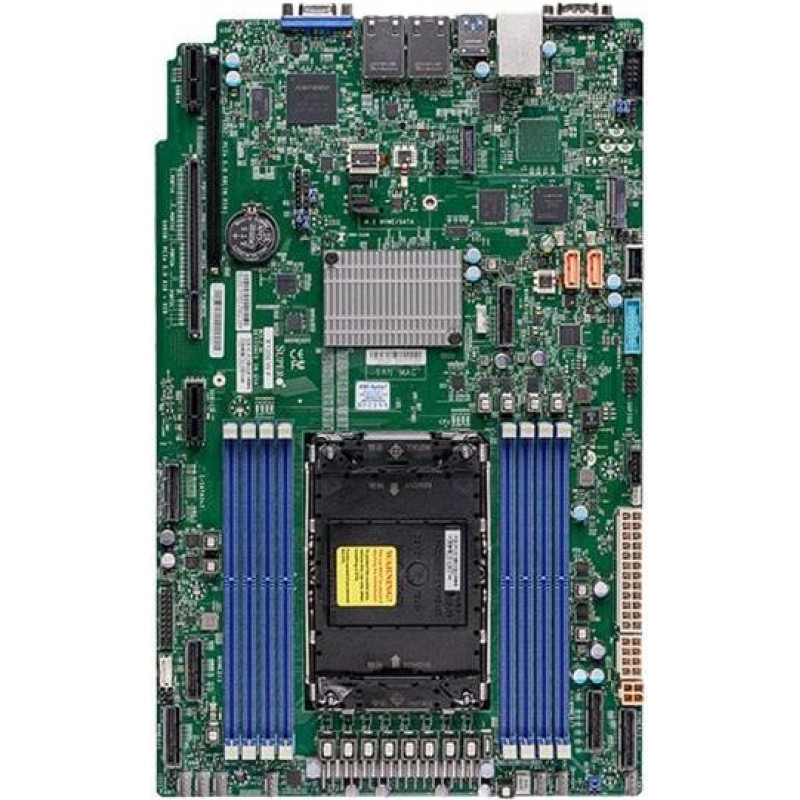

Supermicro X13SEW-F - scheda madre - LGA4677 Socket-E

For workstation builders and IT professionals deploying high-performance computing systems, the Supermicro X13SEW-F motherboard delivers a robust foundation for Intel Xeon W-3400 and W-2400 processors. This E-ATX board is engineered to handle demanding workloads such as 3D rendering, complex simulations, and data analysis, providing the stability and expandability required in professional environments.

Key specifications

• CPU Socket: LGA4677 (Socket E) for Intel Xeon W-3400/W-2400 processors
• Chipset: Intel W790
• Memory: 8 DIMM slots, DDR5 RDIMM/LRDIMM, up to 2TB
• Expansion Slots: 3x PCIe 5.0 x16, 2x PCIe 5.0 x8, 1x PCIe 4.0 x4 (in x8 slot)
• Storage: 4x M.2 NVMe (PCIe 4.0 x4), 8x SATA 3.0 (6Gbps)
• Networking: 2x 10GbE (Intel X710-AT2), 1x dedicated IPMI LAN
• USB Ports (Rear): 2x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A
• Graphics: ASPEED AST2600 BMC
• Form Factor: E-ATX
• Management: IPMI 2.0 with KVM over IP
• RAID Support: Intel RSTe (RAID 0, 1, 5, 10)
• Power Connectors: 24-pin ATX, 2x 8-pin EPS 12V

Why choose it

The X13SEW-F offers exceptional memory capacity and ultra-fast PCIe 5.0 connectivity, ensuring your workstation can handle the most intensive tasks without bottlenecks. Its dual 10GbE LAN ports provide high-speed networking for data-intensive applications, while the dedicated IPMI port allows for remote management and monitoring, reducing downtime and maintenance costs.

Ideal use cases

• Professional workstations for CAD, video editing, and 3D animation
• Data analysis and scientific computing
• Virtualization and server applications requiring high core counts and memory
• High-performance computing clusters

Good to know

This motherboard supports Intel Xeon W processors with up to 56 cores, providing immense parallel processing power. The four M.2 slots enable high-speed NVMe storage arrays for rapid data access. With E-ATX form factor, it fits standard E-ATX chassis and offers excellent expandability for multiple GPUs and add-on cards.
