Supporto a parete InLine per TFT/LED/Plasma 58–107 cm (23–42 inch) inclinabile/orientabile, VESA 100x100–200x200, max 30 kg, nero

InLine wall bracket for TFT, LED and plasma screens with screen sizes from 58 to 107 cm (23–42") supports displays up to 30 kg and is compatible with VESA patterns from 100x100 to 200x200. The bracket is finished in black and provides adjustable mounting distance from the wall for versatile installation in home or office environments.

Advantages

The InLine wall bracket offers tilt adjustment from -20° to 20° and swivel from -90° to 90°, allowing precise positioning of the screen. It supports a maximum load of 30 kg and accommodates common VESA standards (100x100 to 200x200). The mounting depth is adjustable between 10 and 39 cm, enabling flexible placement and easy access to cables.

Suitable for

• Mounting flat-panel TVs and monitors 58–107 cm (23–42")
• Indoor home installations
• Office meeting rooms and workstations
• Retail displays and presentation setups

Key specifications

• Compatible VESA: 100x100 to 200x200
• Maximum weight capacity: 30 kg
• Supported screen size: 58–107 cm (23–42")
• Tilt range: -20° to 20°
• Swivel range: -90° to 90°

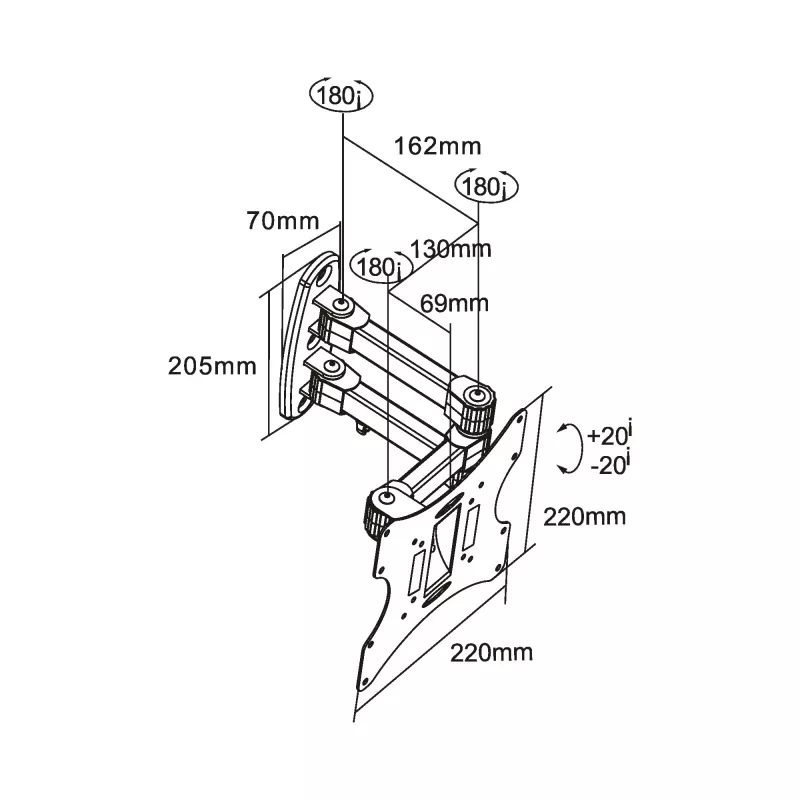

• Adjustable mounting distance from wall: 10–39 cm
• Colour: Black

How to use

Attach the bracket to a load-bearing wall following the supplied template and instructions, ensuring the chosen wall anchors and screws match your wall type and the bracket's weight rating. Fix the mounting plate to the display using screws that match the display's VESA holes (100x100 to 200x200), then hang the screen on the wall bracket and secure it according to the manual. Adjust tilt and swivel to the desired viewing angle and set the mounting distance between 10 and 39 cm as required.

Recommendations

Verify the display's VESA pattern and weight before installation. Use appropriate wall anchors for the wall material and, if uncertain, consult a professional installer to ensure secure mounting and correct cable routing.
