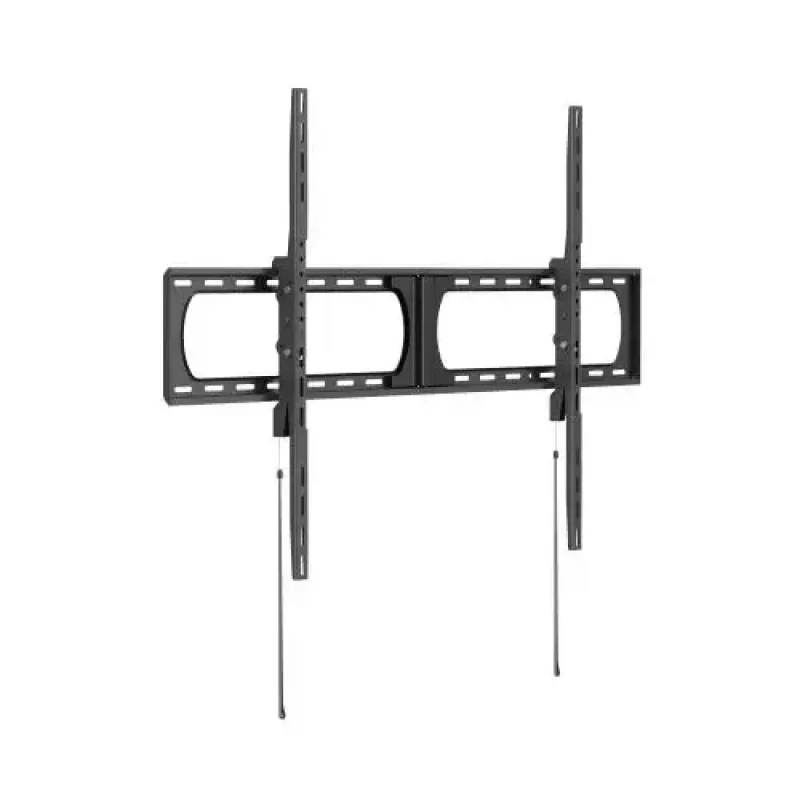

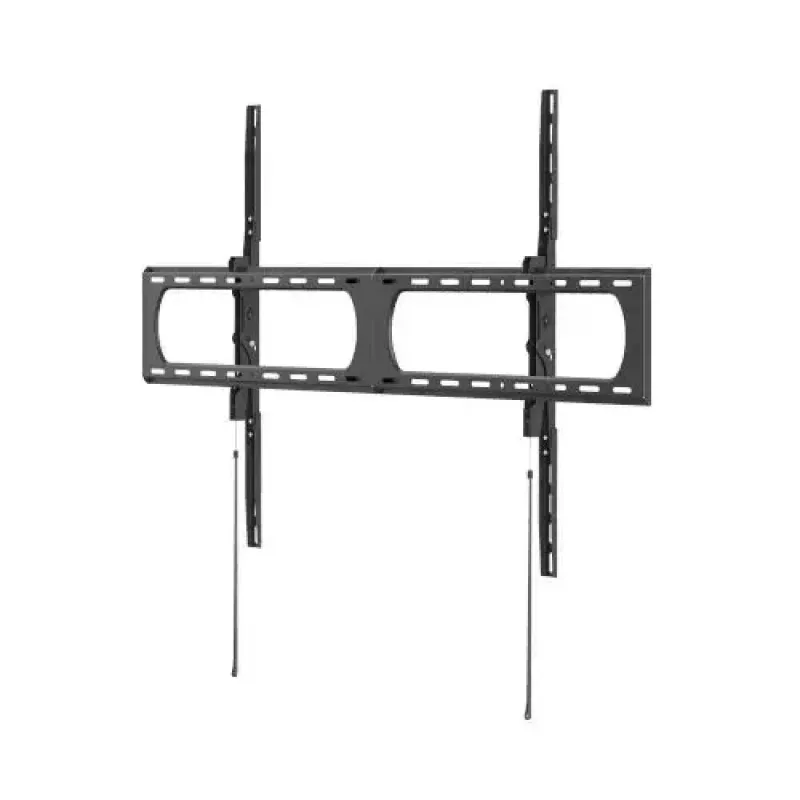

Supporto a parete per TV VivoLink VLMW37140 slim XL

The Vivolink VLMW37140 is a heavy-duty mounting solution designed for large signage screens in public areas such as hotels, shopping malls and trade fairs. It supports a wide range of screen sizes and provides a secure, easy-to-install structure with a reduced-packaging split design for simpler delivery and handling.

Advantages

The mount accommodates large screens and has a high maximum load capacity of 125 kg, ensuring compatibility with most commercial signage displays. Its 32 mm steel profile and click-in spring lock with an easily released cord deliver stable fixation and straightforward installation and removal. The split design reduces packaging volume and simplifies transport and onsite assembly.

Suitable for

• Public spaces: hotels and shopping malls
• Exhibition and trade fair signage
• Large digital information or advertising displays

Key specifications

• Typical screen size: 37"–140"
• Maximum loading capacity: 125 kg
• Material: steel profile, 32 mm

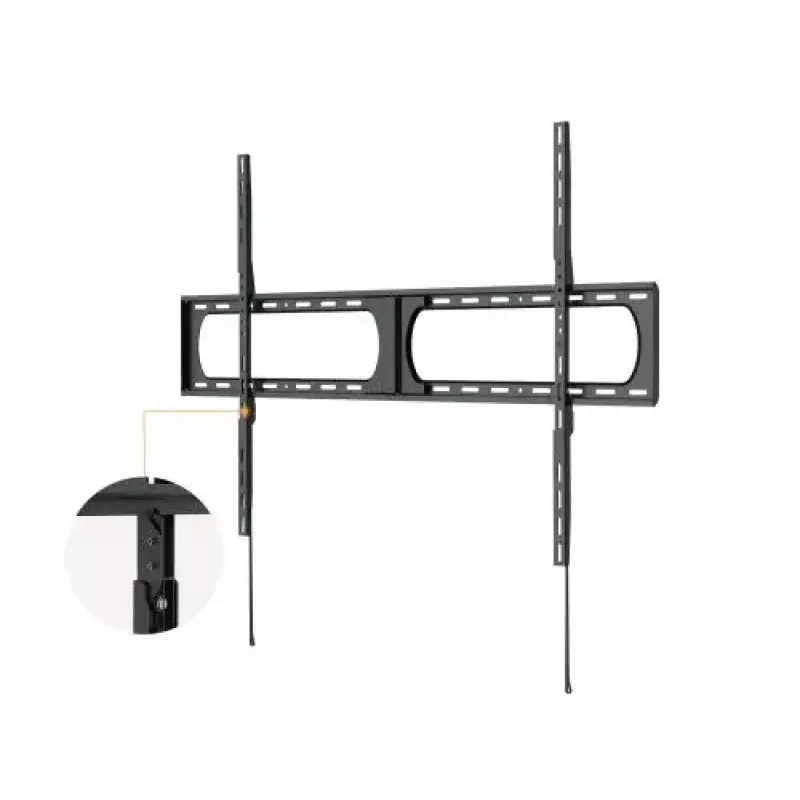

• Locking mechanism: click-in spring lock with release cord

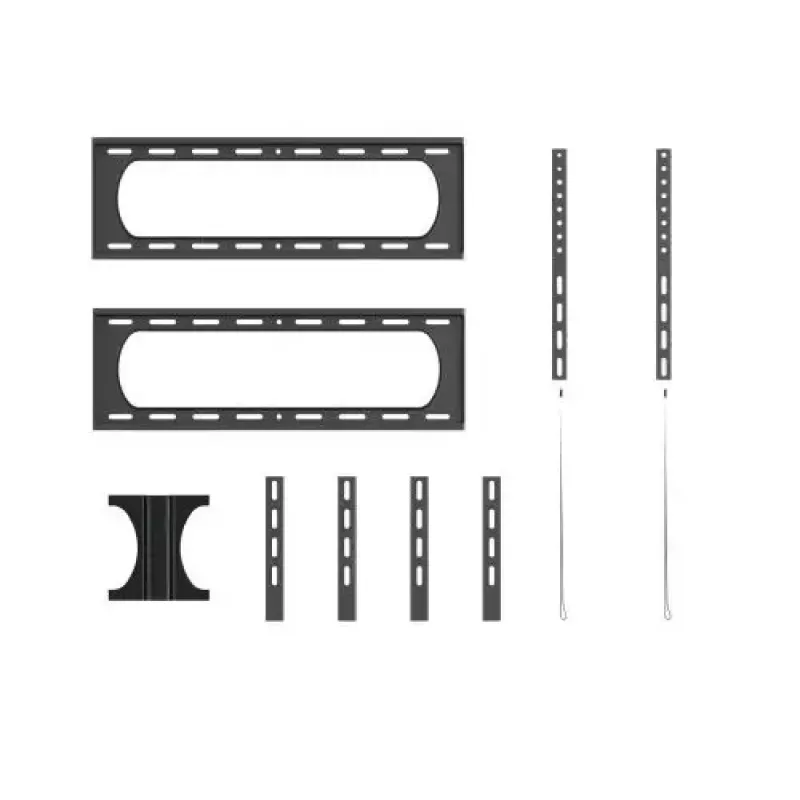

• Design: split design for reduced packaging
• Brand: VivoLink, MPN: VLMW37140, EAN: 5715063798065

How to use

Mount the bracket to a suitable structural surface following local building and safety codes. Attach the screen to the mount using the click-in spring lock; pull the release cord to disengage the lock when removing or repositioning the screen. Use appropriate fixings for the wall or mounting surface and ensure the total weight does not exceed 125 kg.

Recommendations

Installations in public areas should be carried out by qualified personnel. Verify compatibility with the screen VESA pattern and confirm that the mounting surface can safely support the combined weight of the mount and display.
