Supporto a parete per video pop-out Equip da 37" a 70"

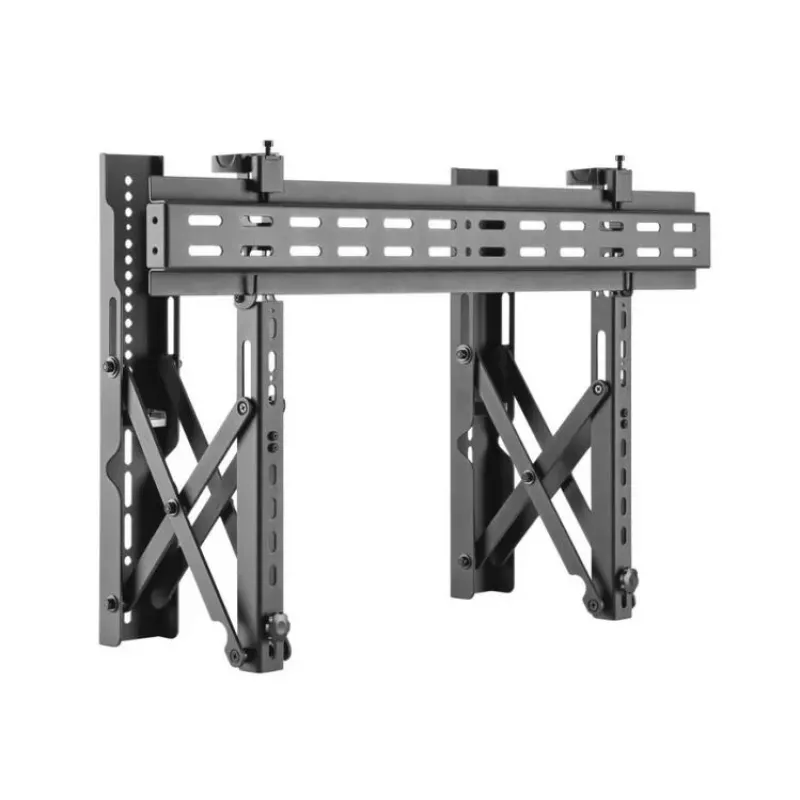

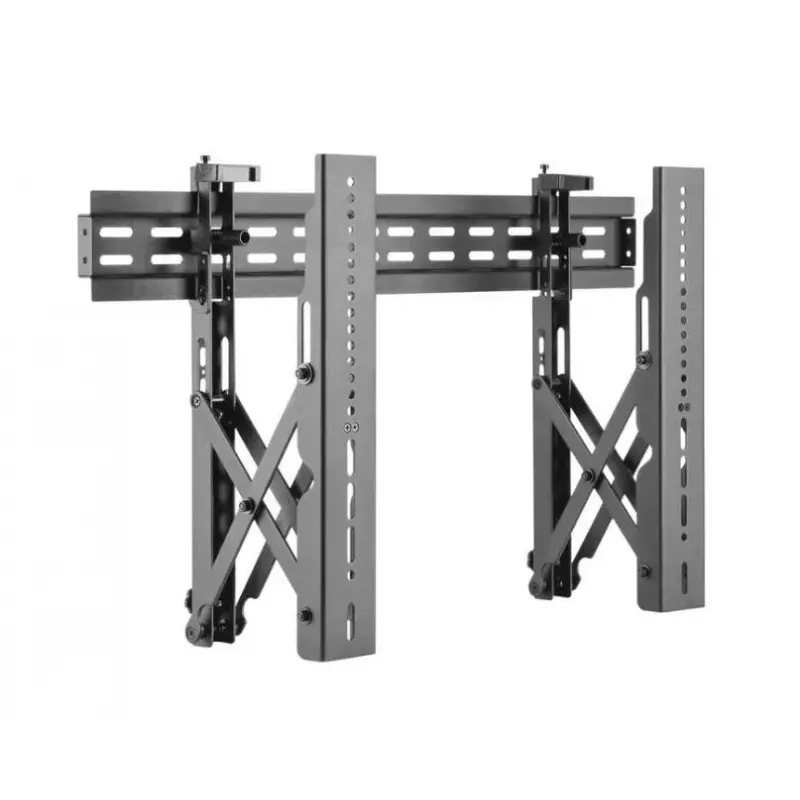

The equip® 650351 Pop-Out TV Video Wall Mount Bracket is a professional mounting solution designed for single-screen and video wall applications. It supports displays from 37" to 70" with a maximum load capacity of 45 kg and accommodates VESA patterns from 200 x 200 mm up to 600 x 400 mm. The black steel construction provides sturdy support while the Push-In Pop-out feature allows quick access to the display for service and maintenance, reducing installation time and cost.

Advantages

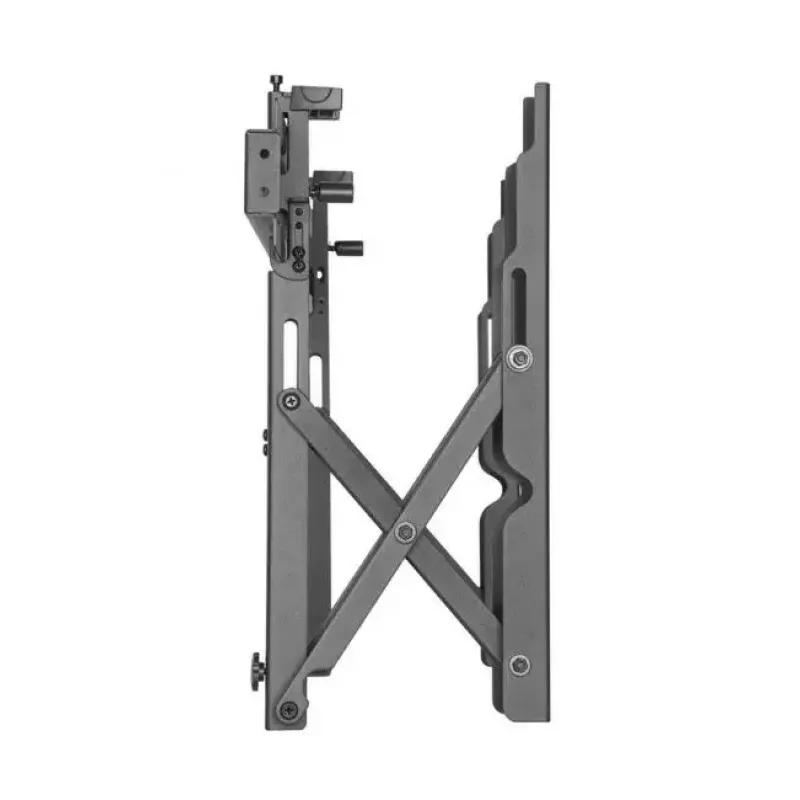

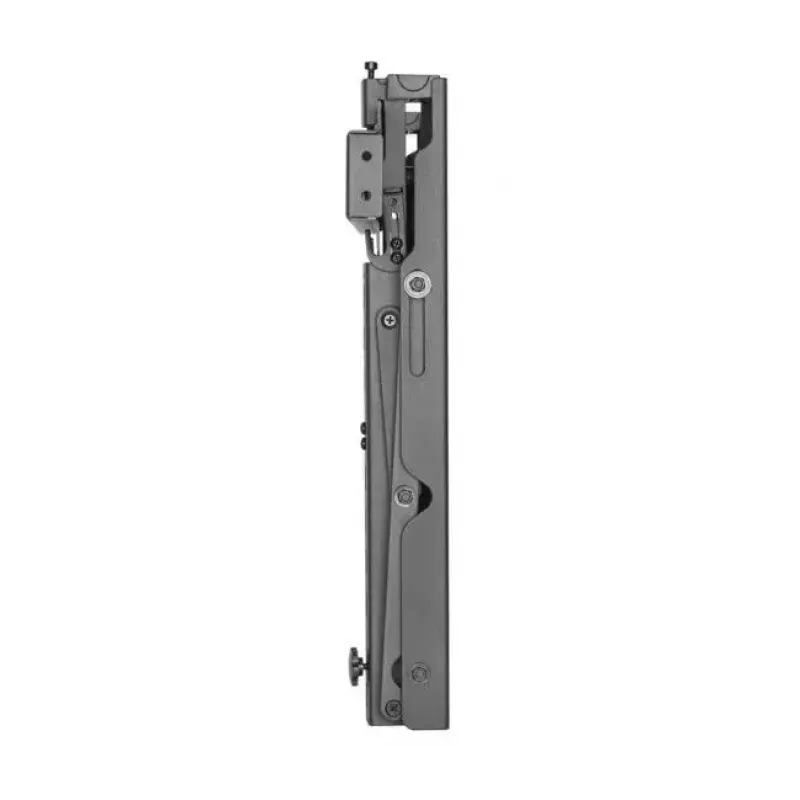

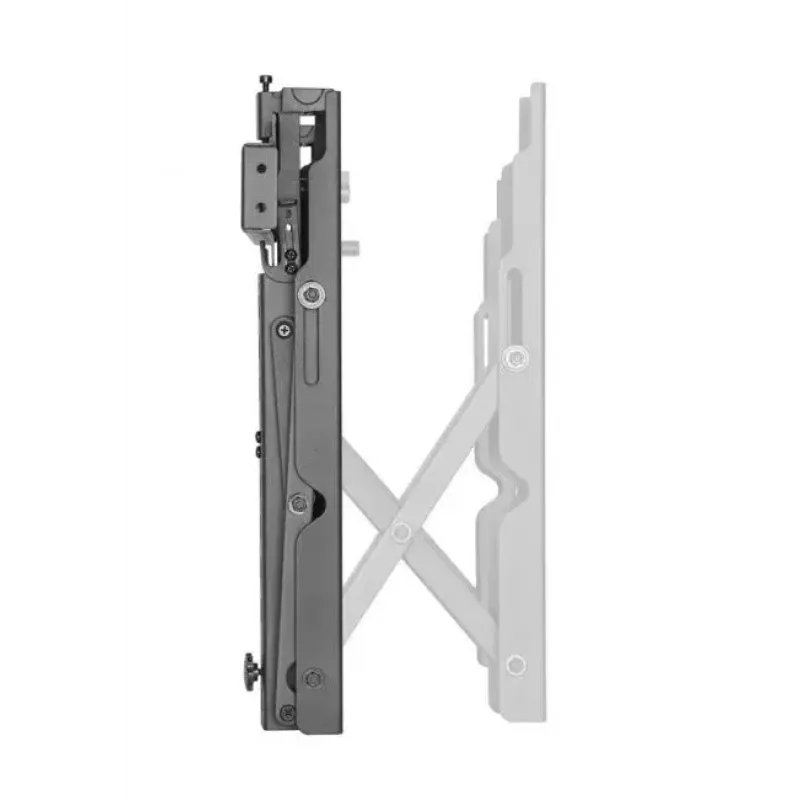

The Pop-Out mechanism lets each display be pushed out from the wall for easy servicing without dismantling the entire video wall. The bracket is quick to install and configure, with compatibility across a wide range of VESA sizes and screen dimensions. Its robust design ensures stable support for screens up to 45 kg while maintaining a slim profile and professional black finish.

Suitable for

• Single-display wall mounting for 37"–70" screens

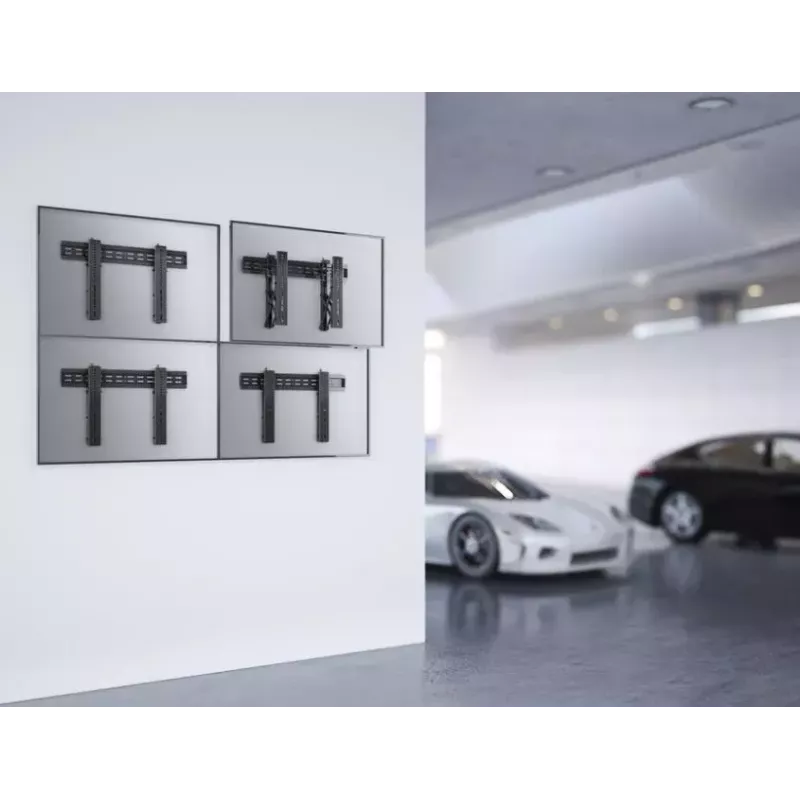

• Modular video wall installations where individual screen access is required
• Public spaces, retail displays, control rooms, and corporate lobbies

Key specifications

• Supported screen size: 37"–70"
• Maximum weight capacity: 45 kg

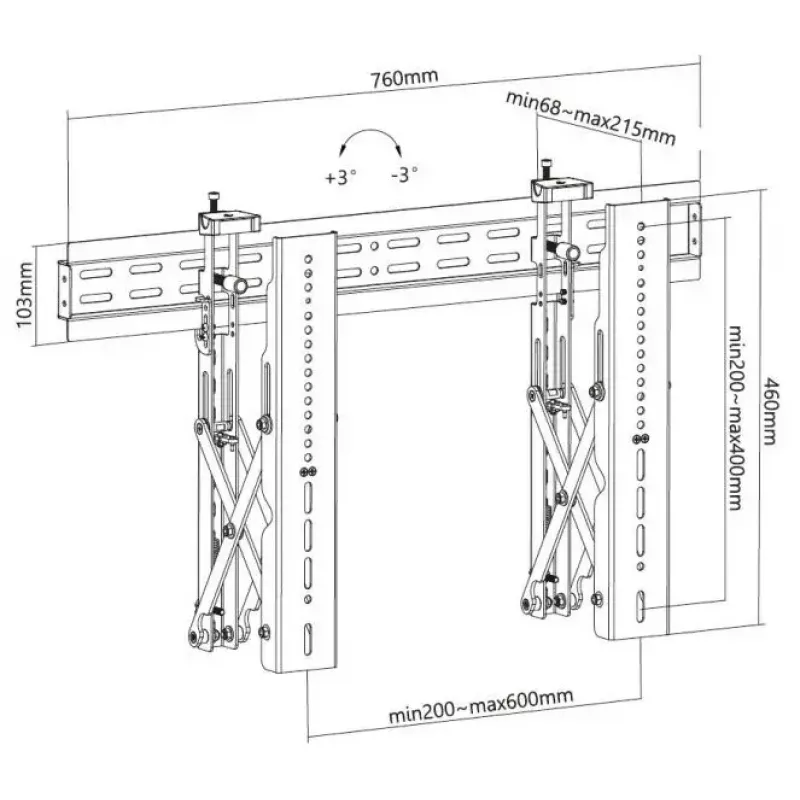

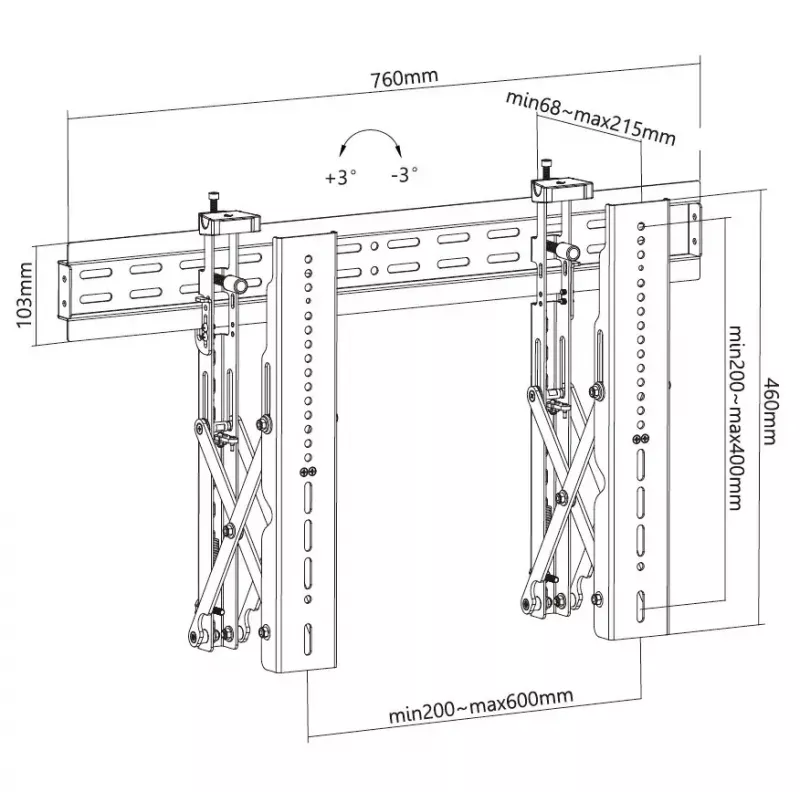

• Maximum VESA mount: 600 x 400 mm; minimum VESA: 200 x 200 mm
• Product weight: 7.06 kg
• Number of displays supported: 1
• Colour: Black
• Manufacturer model (MPN): 650351
• EAN: 4015867228289

How to use

Mount the wall plate securely to a suitable load-bearing surface following local building codes and using appropriate anchors and fasteners. Attach the bracket arms to the display using the compatible VESA holes, then hang the display on the wall plate. Use the Push-In Pop-out function to release the display for service access: push the display in or pull it out as required for maintenance. Verify level and secure all fasteners after installation.

Recommendations

Ensure the mounting surface and fixings can support the combined weight of the bracket and display (up to 45 kg). Check VESA compatibility before installation and allow sufficient clearance around the display for ventilation and cable routing.
