Supporto a soffitto Kindermann Premium 60

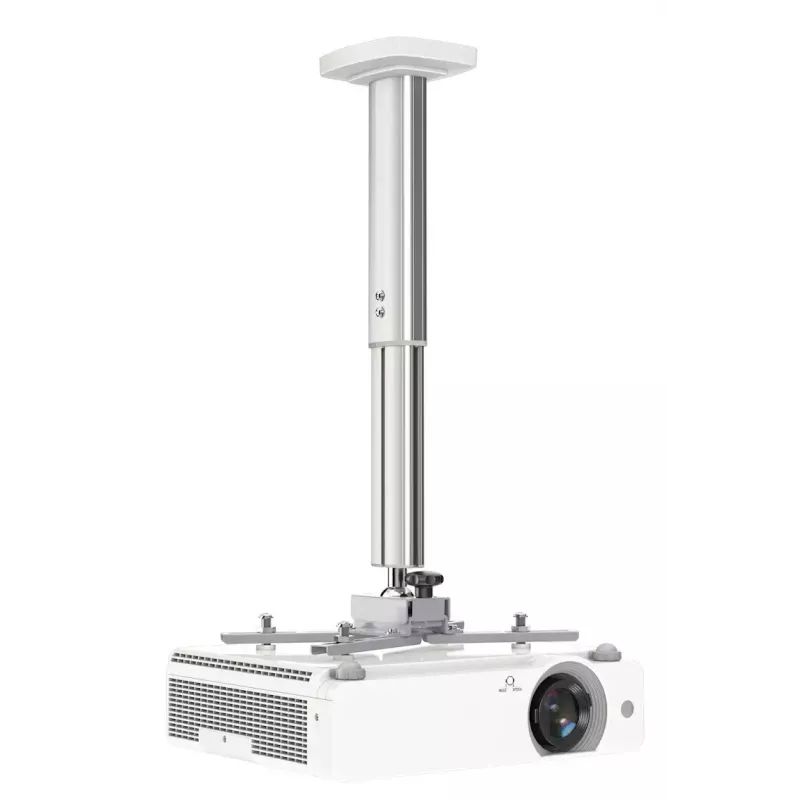

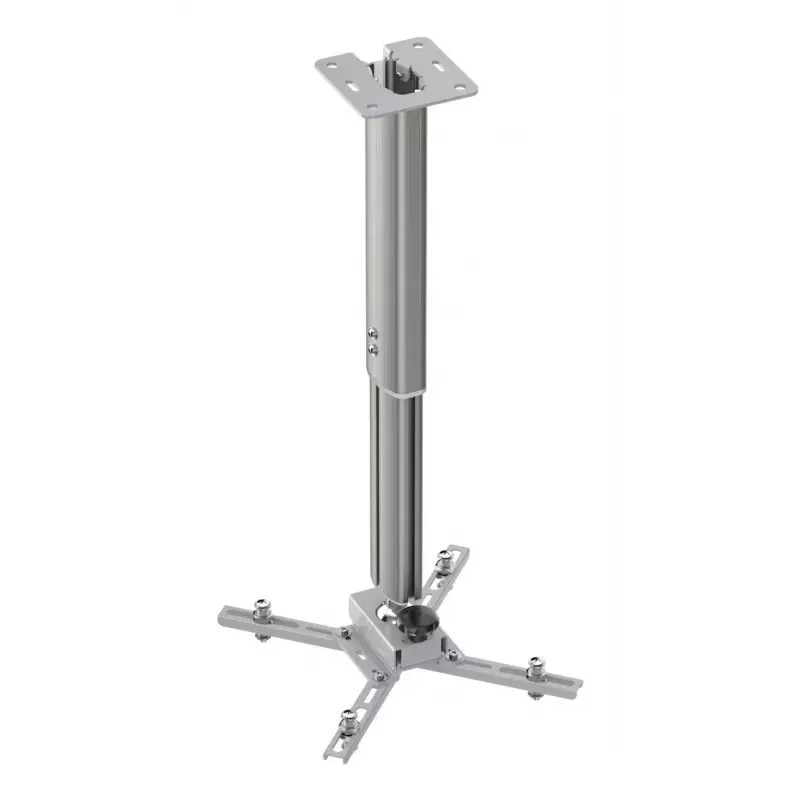

The Kindermann Premium 60 ceiling mount is a high-quality aluminium mount designed for secure installation of data and video projectors. It supports projectors at a distance of 41–61 cm from the ceiling and has a maximum load capacity of 25 kg. The mount features an anodized aluminium profile with a fully covered internal cable channel and comes pre-assembled for faster installation.

Advantages

The mount offers stepless telescopic height adjustment and an aluminium ball-joint with a quick-change system that allows tilting the projector ±20° in all directions and rotating ±180°. Fixing points can be set between 138 and 378 mm. Custom-made columns up to 300 cm are available on request. The product is TÜV/GS certified and includes a screw set (M3, M4, M5, M6) with height-adjustable distance elements.

Suitable for

Key specifications

How to use

Mount the pre-assembled ceiling bracket to a suitable ceiling substrate using appropriate fasteners (not included for ceiling fixation). Attach the projector to the supplied screw set (M3, M4, M5, M6) and height-adjustable distance elements, then connect the projector to the mount. Adjust the telescopic column to the desired 41–61 cm distance and secure the locking mechanism. Use the aluminium ball-joint quick-change system to tilt and rotate the projector for accurate alignment, then tighten all fastenings.

Recommendations

Ensure the ceiling structure can support the combined weight of the mount and projector and use suitable ceiling fixings. For installations above the stated load or custom column lengths, consult the manufacturer or a qualified installer. Periodically check fastenings and alignment to maintain safe operation.
