Supporto a soffitto per monitor/TV Neomounts FPMA-C200 10-40 pollici - h 64-104 cm

The Neomounts FPMA-C200 ceiling mount is a tilt- and swivel mount designed for flat screens up to 40" (102 cm). It provides a compact alternative when wall mounting or floor stands are not suitable and features an integrated cable management column to conceal and route cables from the ceiling to the screen. The mount is finished in silver and fits both residential and professional interiors.

Advantages

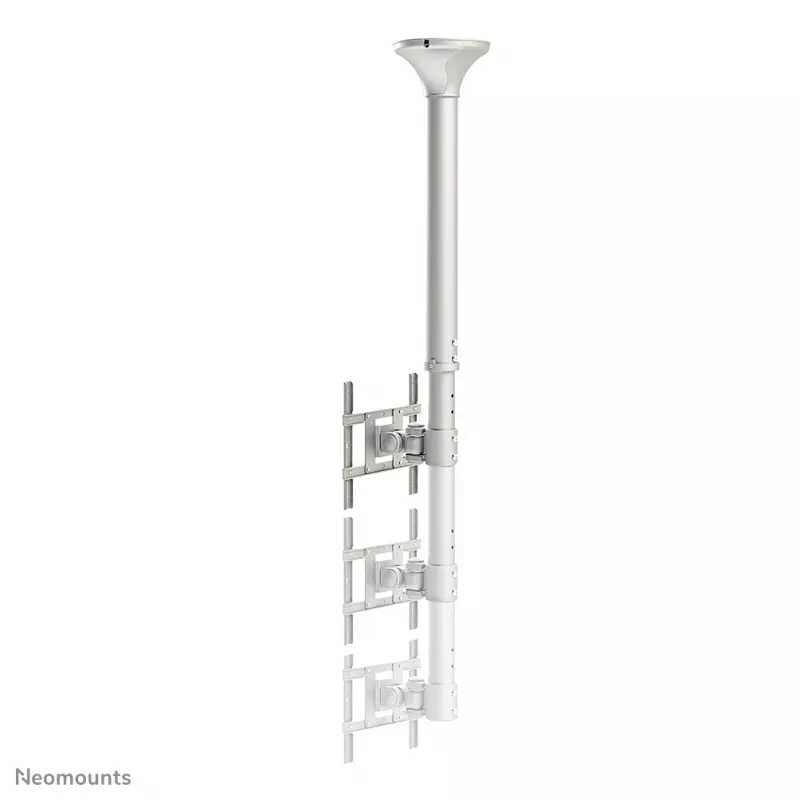

The FPMA-C200 offers wide movement options with 0–180° tilt, 0–180° swivel and 360° rotation so the screen can be adjusted to nearly any viewing angle. Height is continuously adjustable between 64 and 104 cm to position the display at the desired level. It supports VESA patterns from 75x75 mm to 200x200 mm and accepts screens up to 40" with a maximum load of 20 kg. All necessary installation hardware is included.

Suitable for

• Mounting a single flat screen up to 40" in rooms without suitable walls
• Space-saving installations in living rooms, kitchens or small offices
• Ceiling-mounted displays in meeting rooms, reception areas or retail spaces

Key specifications

• Model: Neomounts FPMA-C200
• Maximum screen size: 40" (102 cm)
• Maximum weight capacity: 20 kg

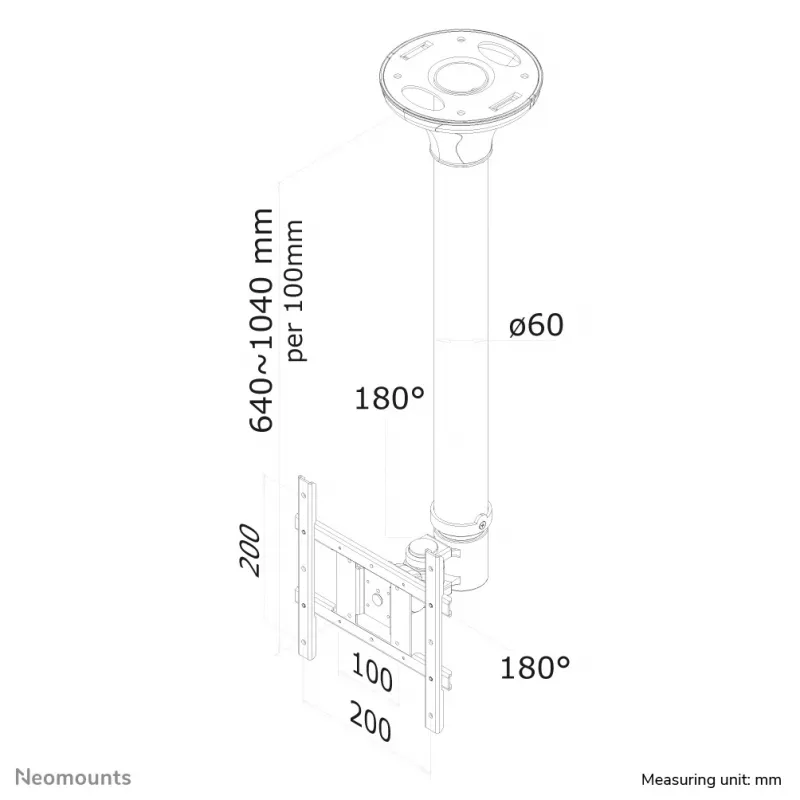

• Height adjustment range: 640–1040 mm
• Tilt: 0–180°; Swivel: 0–180°; Rotation: 360°
• VESA compatibility: 75 x 75 mm up to 200 x 200 mm
• Number of displays supported: 1
• Product colour: Silver
• Included: Installation material

How to use

Secure the ceiling mounting plate to a suitable ceiling structure using the supplied installation hardware and appropriate fixings for the ceiling material. Attach the VESA bracket to the back of the screen, optionally use a VESA adapter plate for non-standard hole patterns, then hang the screen on the mount and fasten the safety screws. Adjust the height within the 64–104 cm range and set tilt, swivel or rotation to the preferred viewing angle. Route power and signal cables through the cable management column to keep them concealed.

Recommendations

Check the ceiling structure and use suitable anchors or install into beams to ensure the mount’s 20 kg load capacity is supported. For screens with non-standard VESA patterns, use Neomounts VESA adapter plates. Regularly verify fastenings and cable routing after installation.
