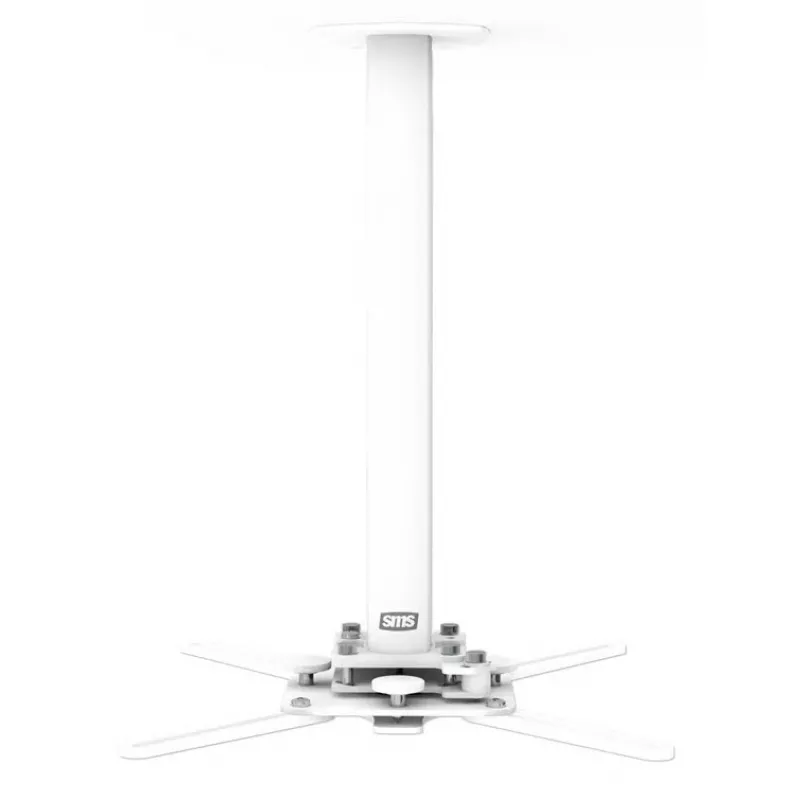

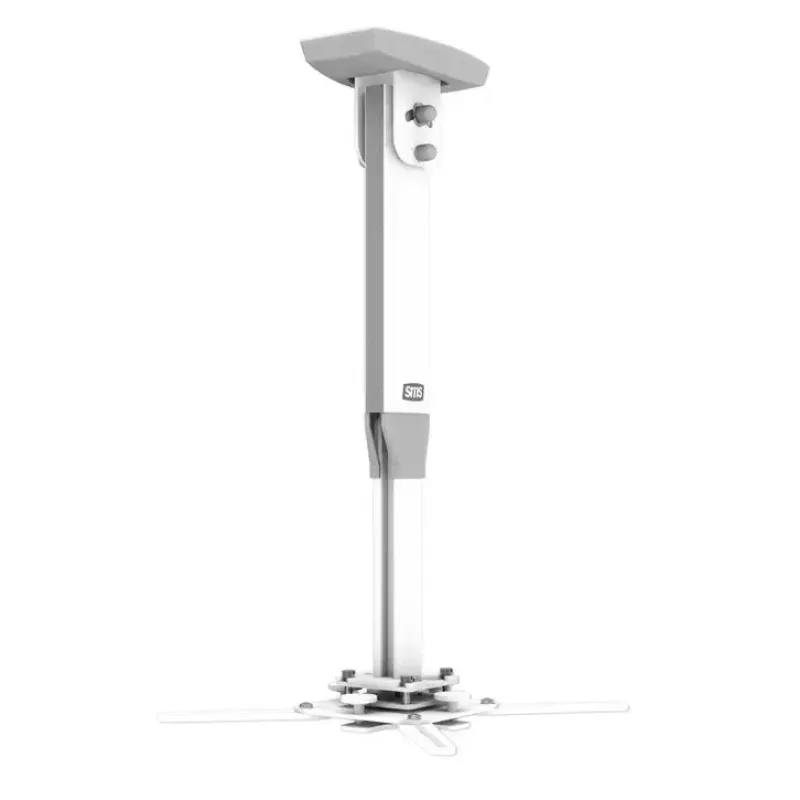

Supporto a soffitto SMS Smart Media Solutions CMV485-735

The SMS Smart Media Solutions CMV485-735 ceiling mount provides a stable, adjustable support for heavy projectors. The telescopic arm extends to a freely chosen length and the built‑in joint holds the projector securely in the selected position. Cables can be routed and concealed within the column’s cable holder. The mount is supplied with a universal slide compatible with most heavy projectors and is finished in white.

Advantages

Fine adjustment and tilt are performed directly at the projector bracket without tools, reducing the need for image correction from the projector itself and enabling faster, simpler installation. The construction is very stable and designed for easy servicing. The cable holder keeps wiring neat and out of sight.

Suitable for

• Home cinema projectors
• Office and classroom projectors
• Conference room installations
• Permanent AV setups requiring a load capacity up to 20 kg

Key specifications

• Model: CMV485-735 (SMS Smart Media Solutions)
• Maximum load: 20 kg
• Mounting type: Ceiling
• Finish: White
• Telescopic extension options (fully extended): 535 mm, 735 mm, 1235 mm, 1735 mm (this variant 735 mm)

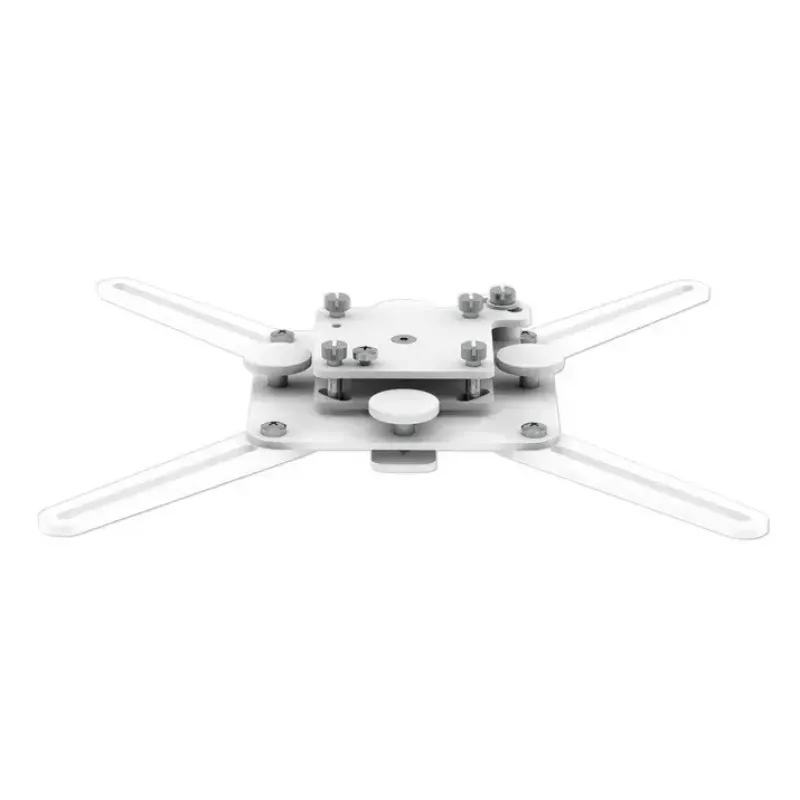

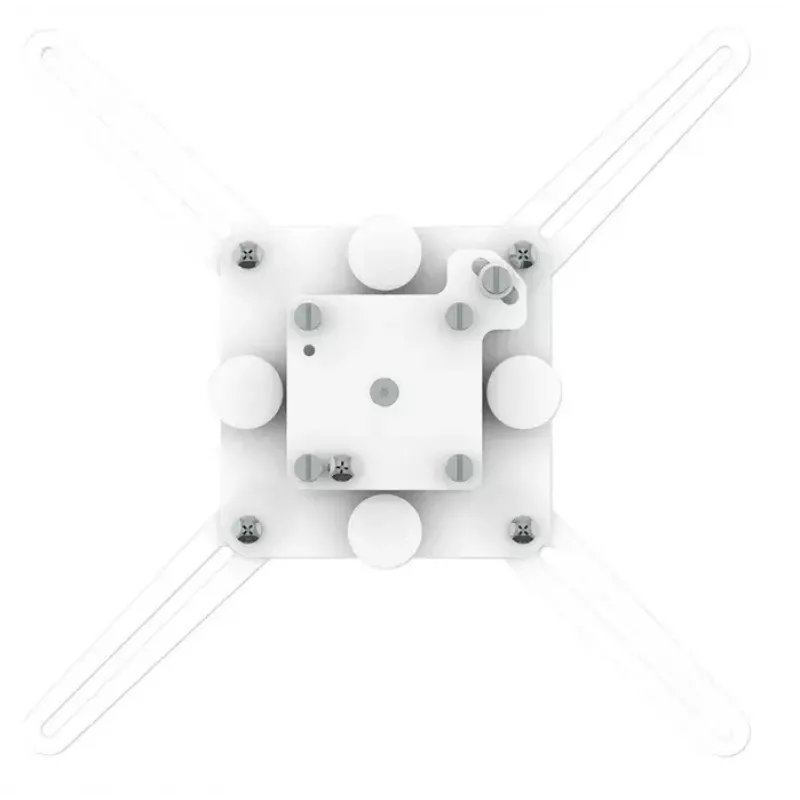

• Includes universal slide for most heavy projectors

How to use

Install the ceiling plate to a suitable structural surface following applicable building and safety regulations. Extend the telescopic arm to the required length and secure the arm using the integrated mechanism. Attach the projector to the universal slide and perform fine adjustment and tilt directly at the projector bracket until the image is aligned. Route cables through the column and into the cable holder to conceal wiring.

Recommendations

Ensure the ceiling structure and fasteners can support the combined weight of the mount and projector (up to 20 kg). Use appropriate fixings for the ceiling material and check alignment after installation. For safety and optimal performance, professional installation is recommended when mounting heavy projectors or when uncertain about structural load-bearing capacity.
