Supporto Axis TP1001-E universale bianco capacità 40kg

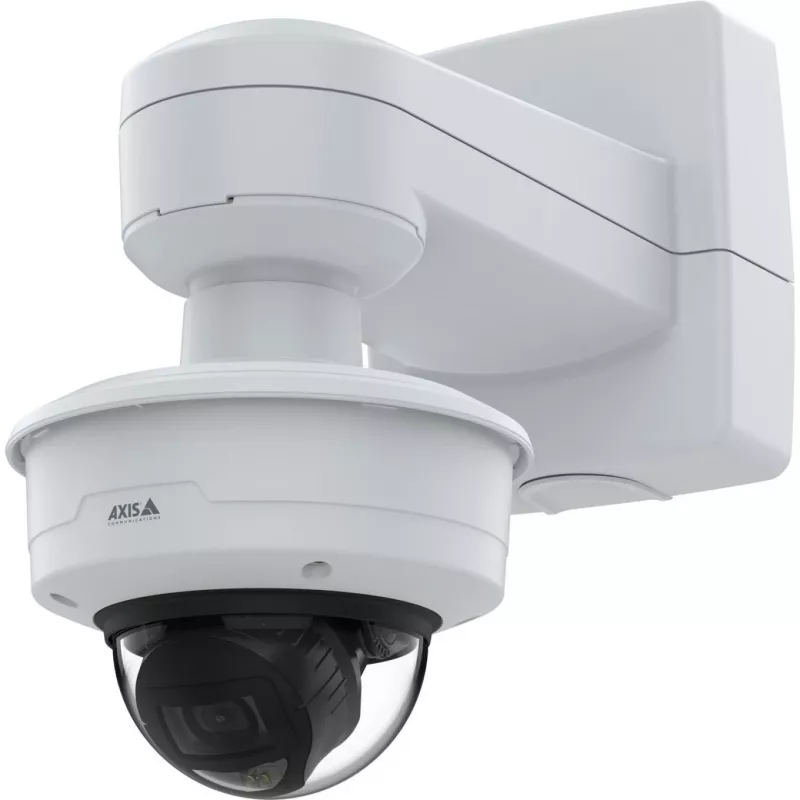

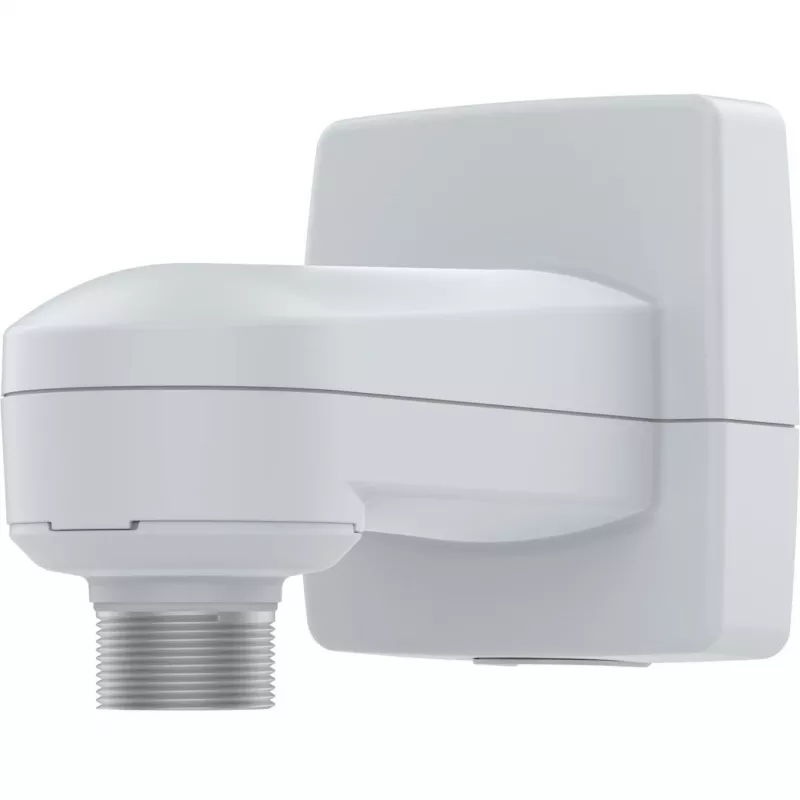

AXIS TP1001-E Wall-and-Pole Mount is designed for Axis dome cameras and provides flexible installation options with either an RJ45 or an IDC connector. The mount includes a built-in cable with an IP66-rated RJ45 connector to protect the connection from water and dust, and it is made of impact-resistant materials suitable for indoor and outdoor use. By flipping the mounting bracket, the unit can be converted from a wall mount to a pole mount (requires AXIS Steel Straps TX30). The mount can also be adapted for corner installation with an optional accessory.

Advantages

The mount supports both RJ45 and IDC (insulation-displacement contact) connectors, giving installers a choice of connection method. An integrated IP66-rated RJ45 connector simplifies installation and helps prevent ingress of water and dust. Durable, impact-resistant construction ensures reliability in outdoor environments. The bracket can be reversed to enable pole mounting, and compatibility with optional accessories allows corner installation.

Key specifications

• Compatibility: Designed for Axis dome cameras
• Connectors: Built-in cable with IP66-rated RJ45; supports IDC connector
• Mounting options: Wall mount, pole mount (requires AXIS Steel Straps TX30), corner mount (with optional accessory)
• Material: Impact-resistant, outdoor-ready construction
• Ingress protection: RJ45 connector rated IP66

How to use

Attach the mount to a suitable wall surface using appropriate fixings, or flip the mounting bracket and secure it around a pole using AXIS Steel Straps TX30 for pole installation. Connect the camera using either the integrated IP66 RJ45 connector or an IDC connector according to the camera and cable setup. If corner installation is required, fit the optional corner accessory before mounting. Ensure all connections are sealed and fastened to maintain IP protection.

Recommendations

Use AXIS Steel Straps TX30 for pole mounting and the compatible corner accessory for corner installations; follow Axis installation guidelines to ensure correct sealing and secure mounting.
