Supporto da parete per TV Neomounts WL35-350BL12 24-55 pollici - inclinabile - bloccabile - installazione semplice

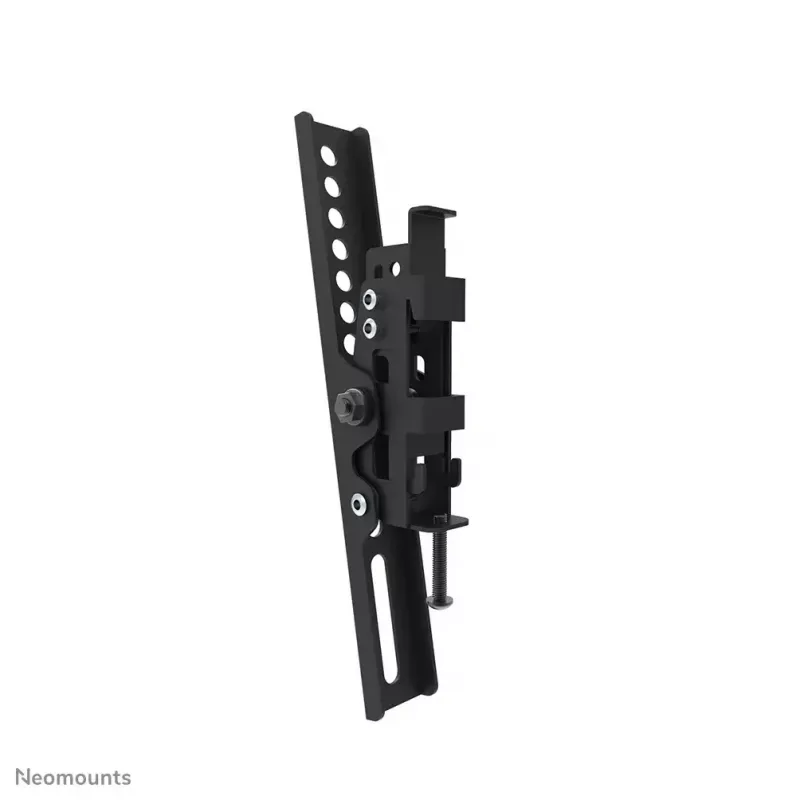

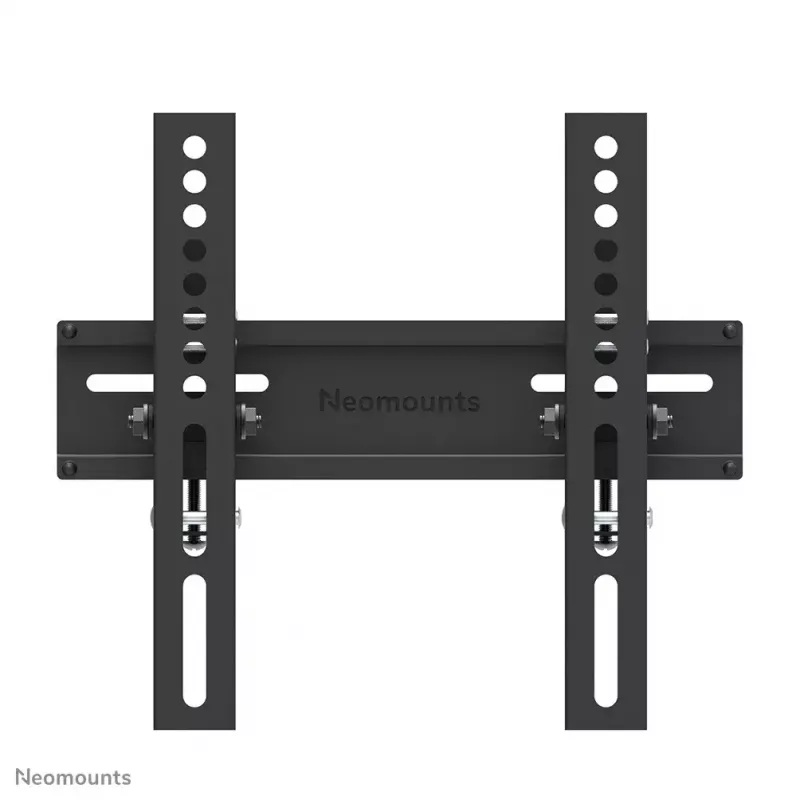

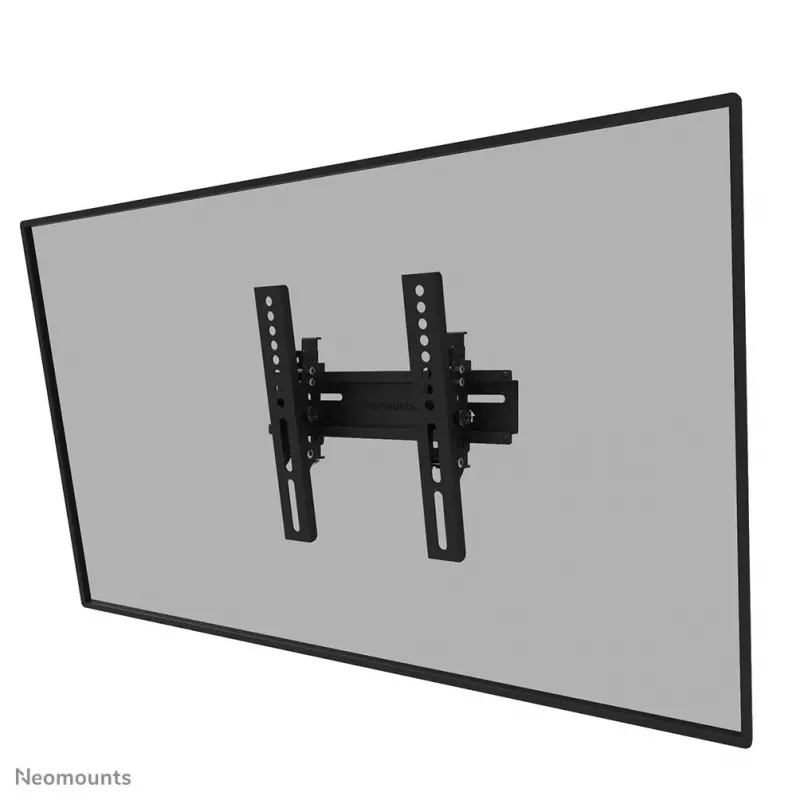

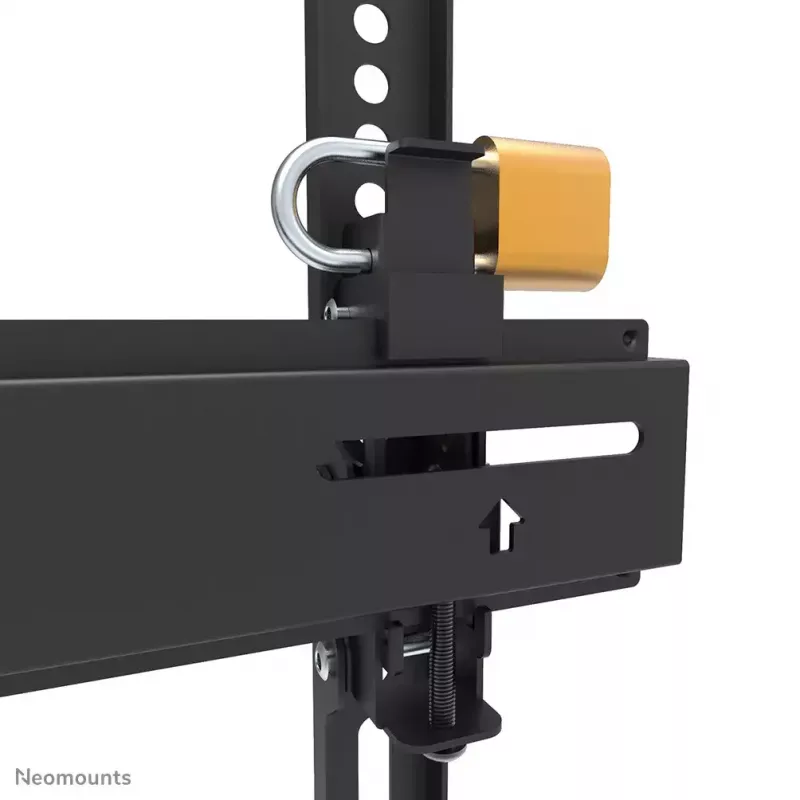

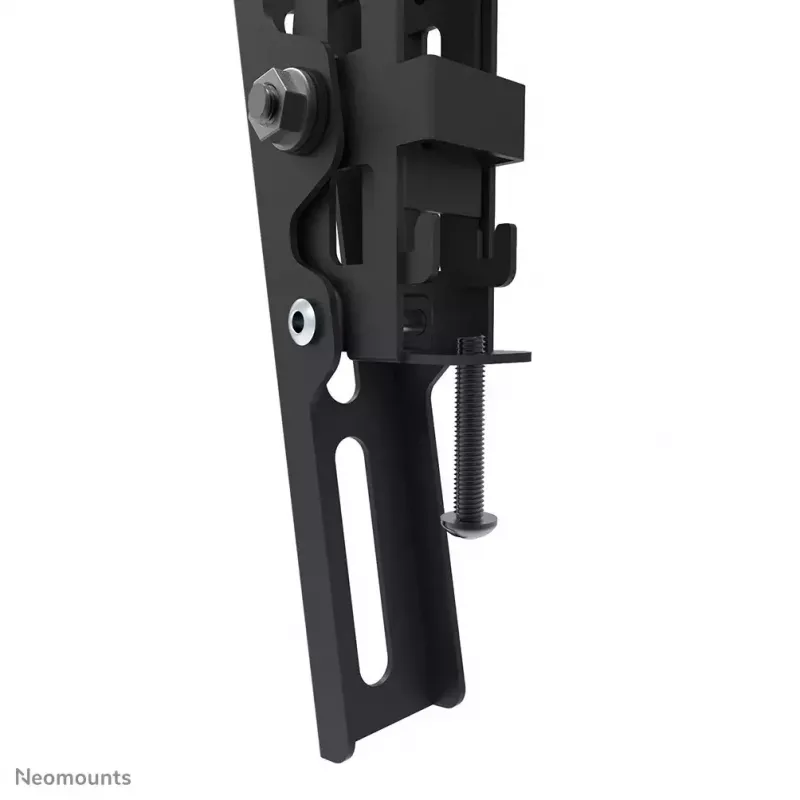

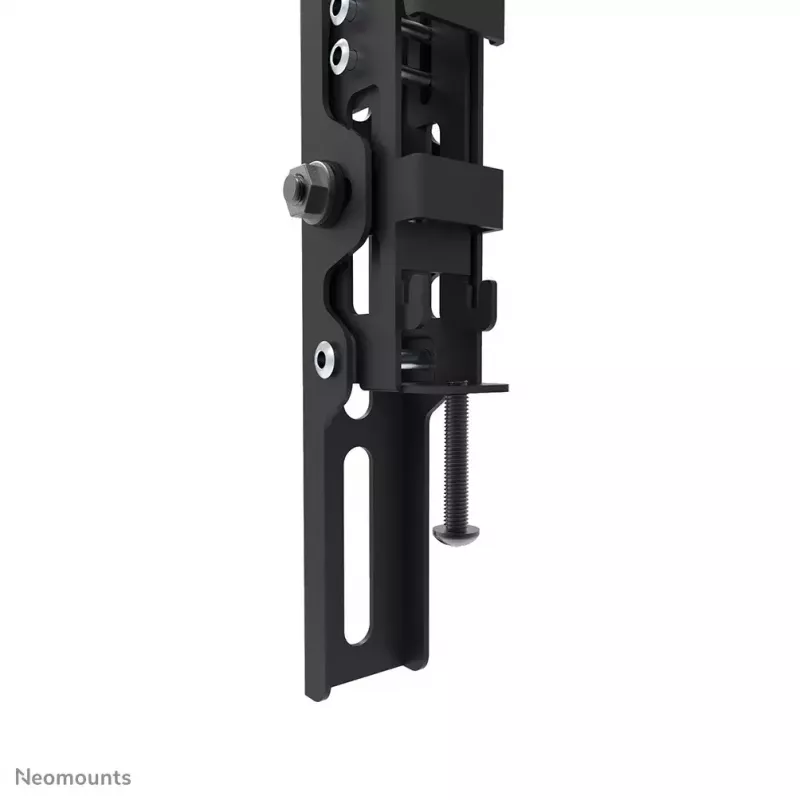

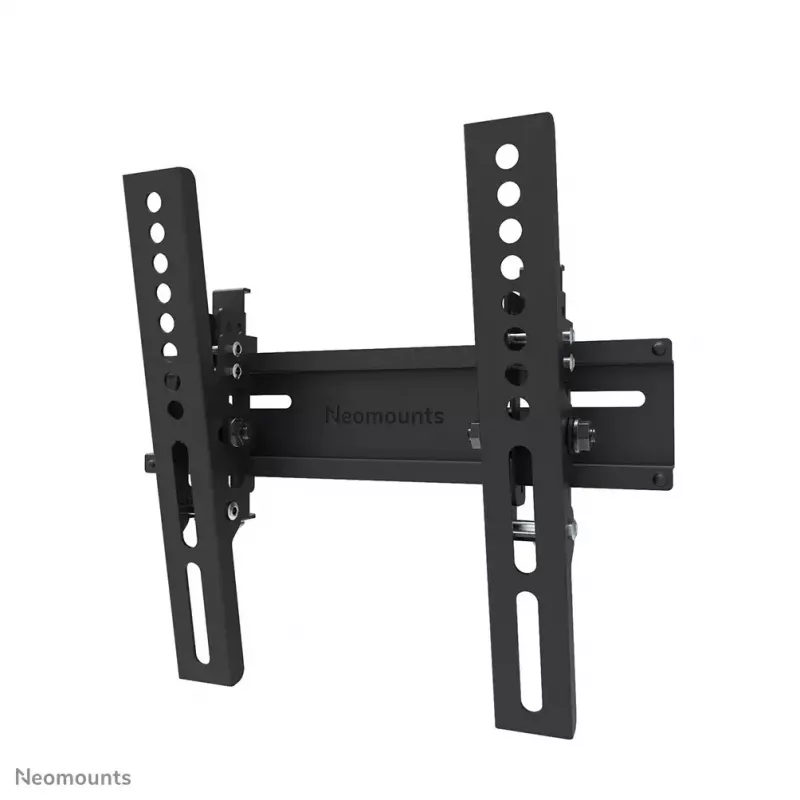

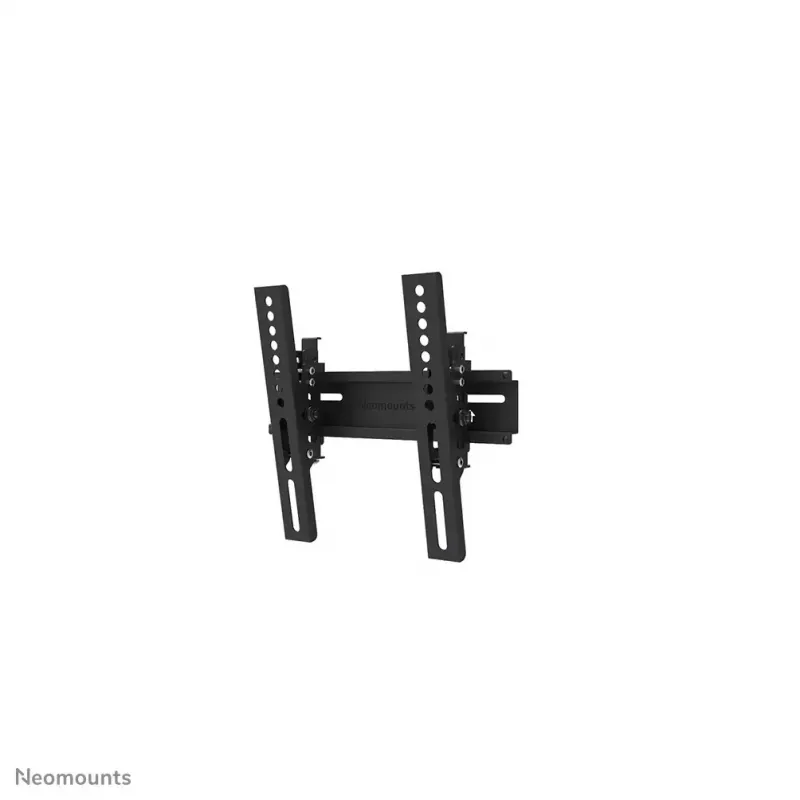

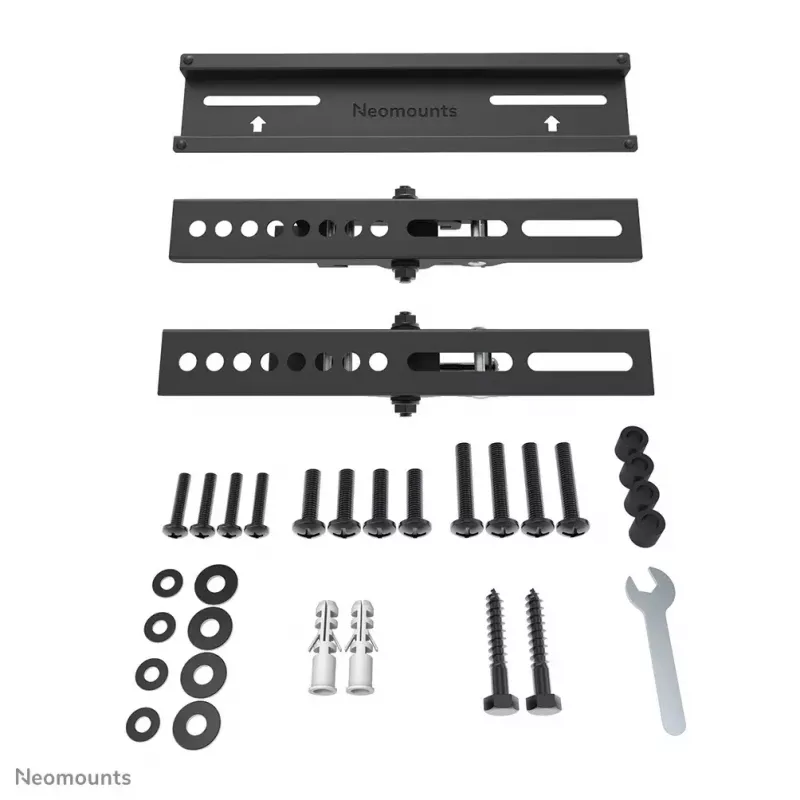

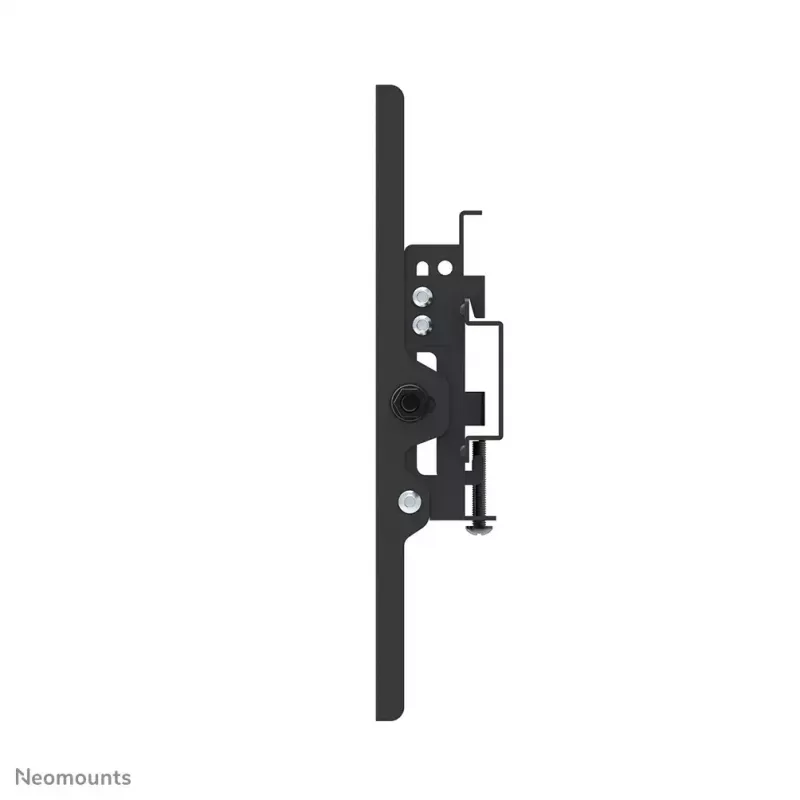

The Neomounts WL35-350BL12 is a tiltable wall mount designed for flat screens from 24" up to 55" with a maximum load capacity of 25 kg. It supports VESA hole patterns from 50 x 50 mm to 200 x 200 mm and features a low-profile design with a mounting depth of 4.6 cm. The mount offers a tilt range for adjusting the viewing angle and includes a bolt bag with the necessary hardware for installation; a padlock can be used to lock the individual brackets (padlock not included).

Advantages

The WL35-350BL12 provides a compact, sturdy mounting solution with adjustable tilt technology to optimise screen viewing. Its broad VESA compatibility covers most small to mid-size televisions and monitors, while the shallow depth keeps the screen close to the wall. Included installation hardware simplifies setup, and the option to secure the brackets with a padlock adds an extra level of safety.

Suitable for

• Mounting 24"–55" TVs and monitors

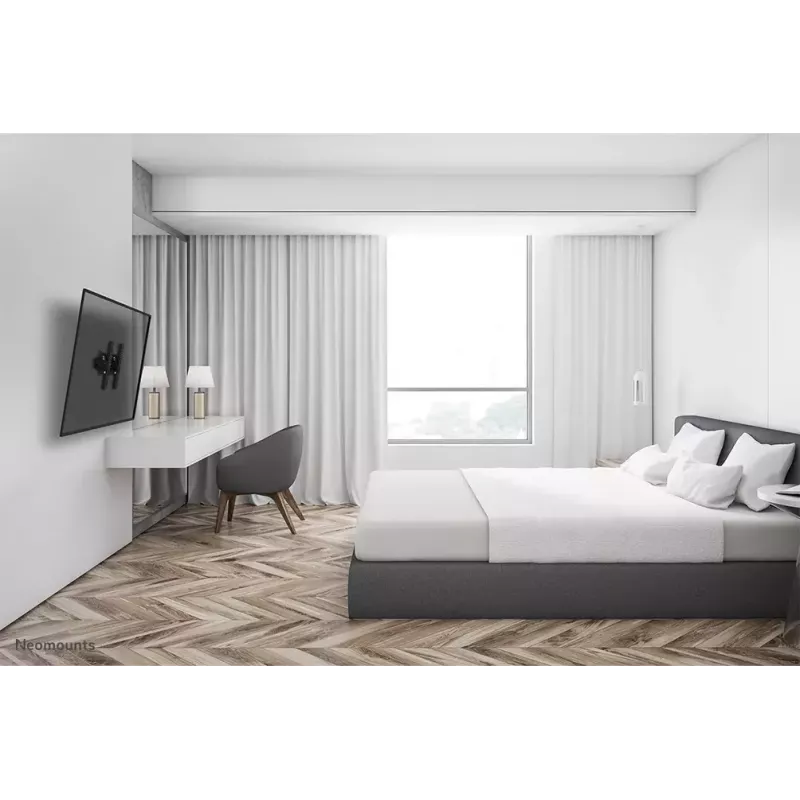

• Rooms where a low-profile wall mount is preferred
• Applications requiring a small tilt adjustment to reduce glare
• Installations using VESA patterns 50x50 mm to 200x200 mm

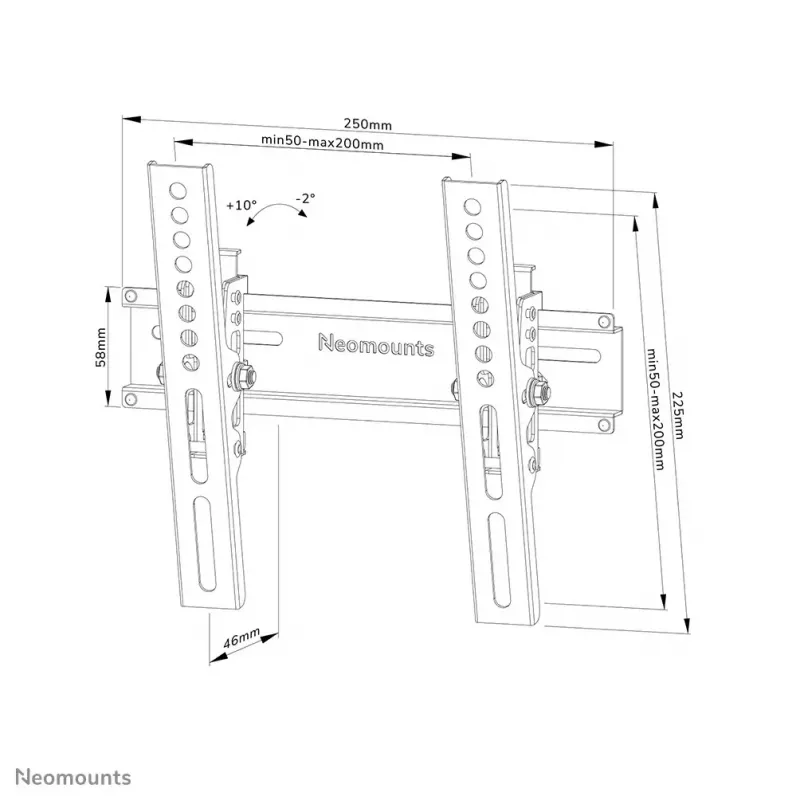

Key specifications

• Maximum screen size: 55"
• Maximum weight capacity: 25 kg
• Supported VESA: 50 x 50 mm to 200 x 200 mm

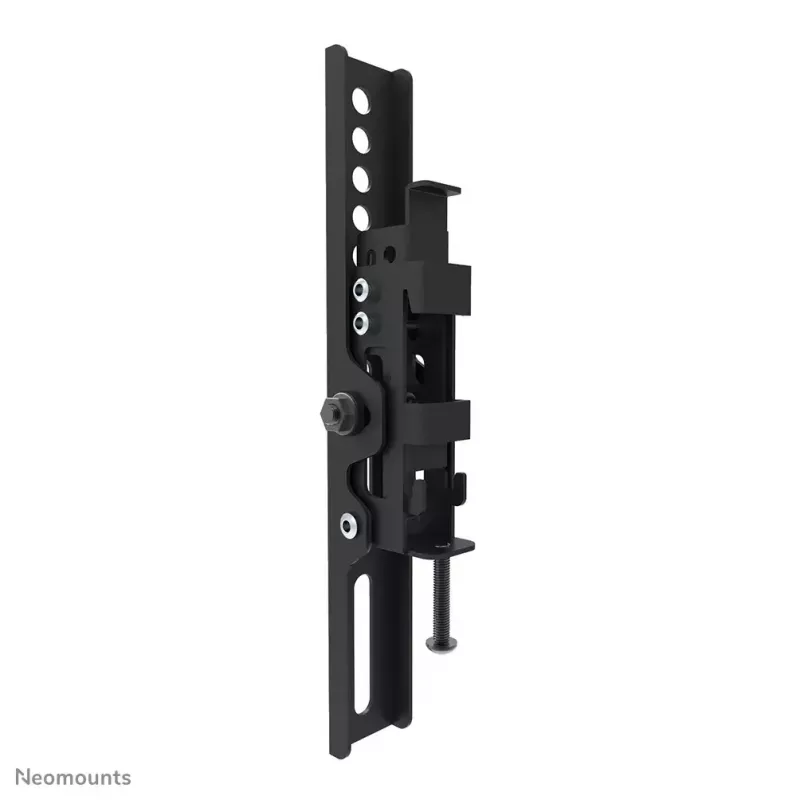

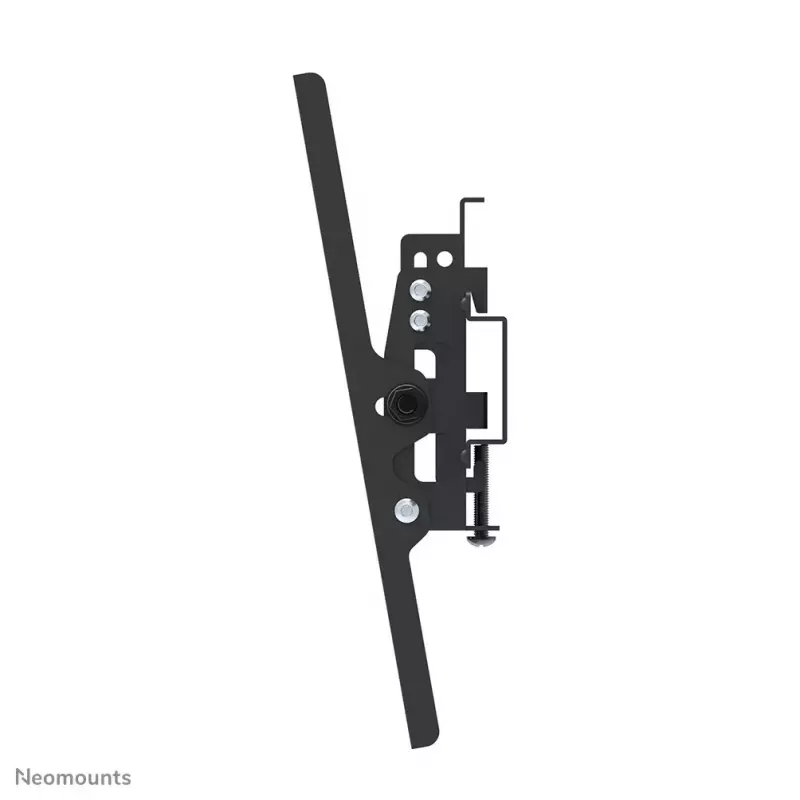

• Tilt range: -2° to 10° (approx. 12° total tilt capability)
• Mounting depth from wall: 4.6 cm
• Product colour: Black
• Number of displays supported: 1
• Net product weight: 0.65 kg

How to use

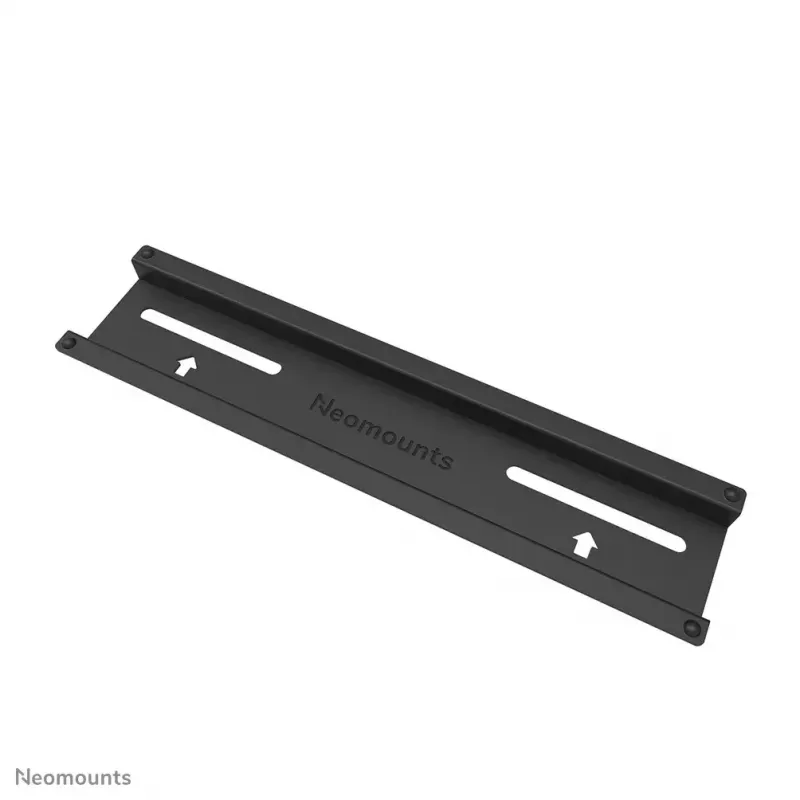

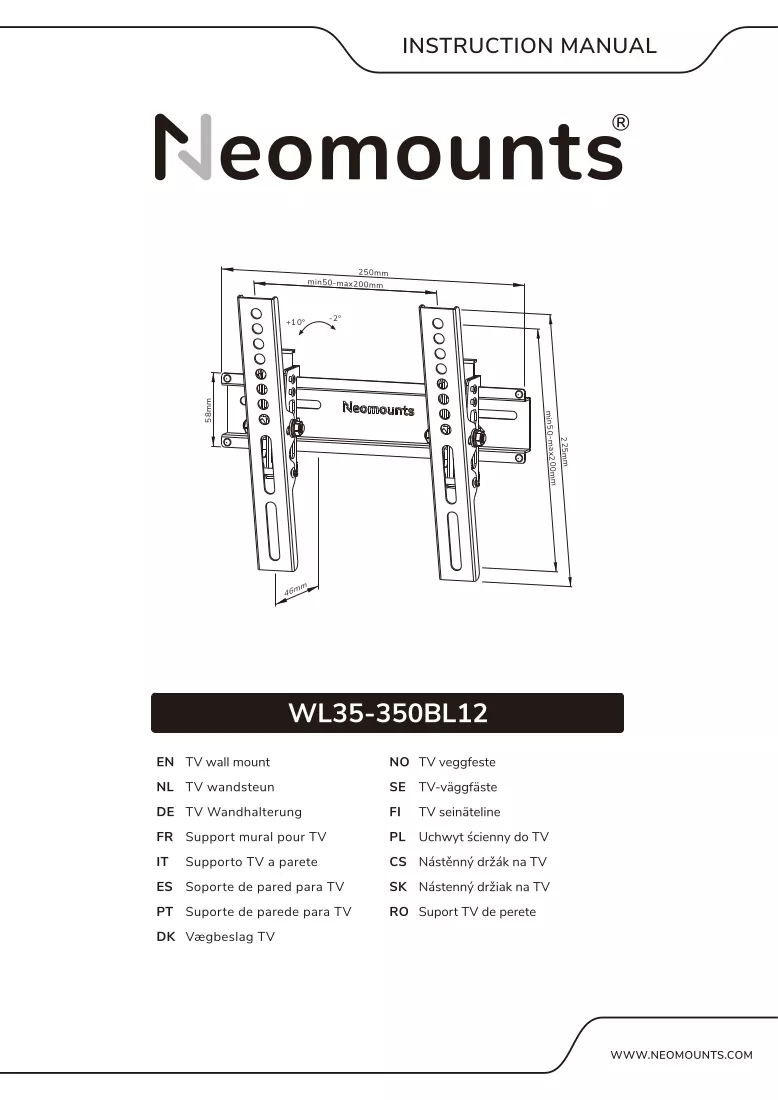

Fix the wall plate to a suitable load-bearing surface following the included template and hardware. Attach the brackets to the screen using the correct VESA hole pattern and secure them to the wall plate. Adjust the tilt to the preferred viewing angle and, if desired, lock the individual brackets with a padlock (not supplied). Ensure all fasteners are tightened and verify the installation supports the screen weight before final use.

Recommendations

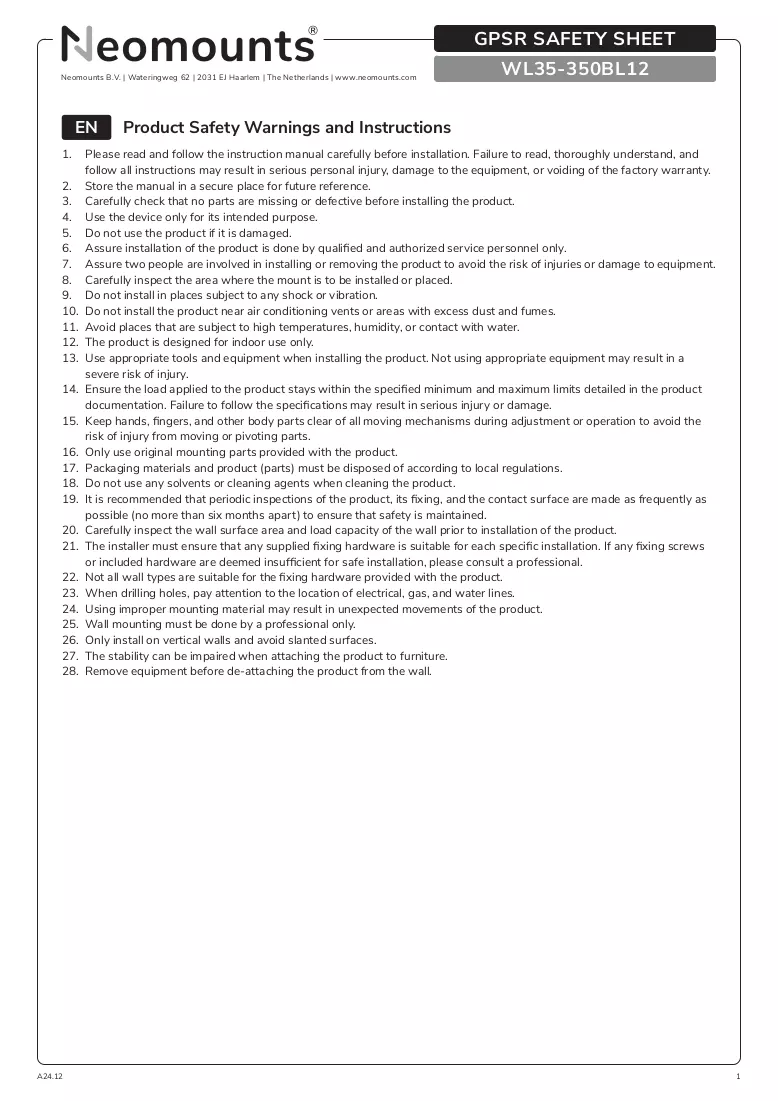

Verify that the wall material and mounting location can safely support the combined weight of the mount and screen. Use the correct screws and anchors for your wall type, follow the included installation instructions, and consider professional installation if you are unsure about structural suitability.
