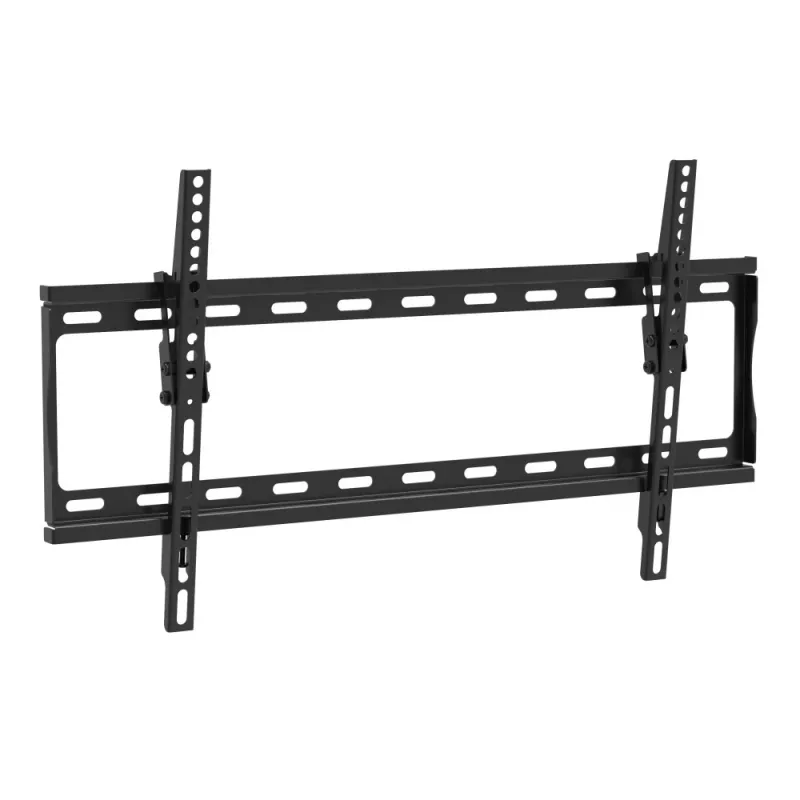

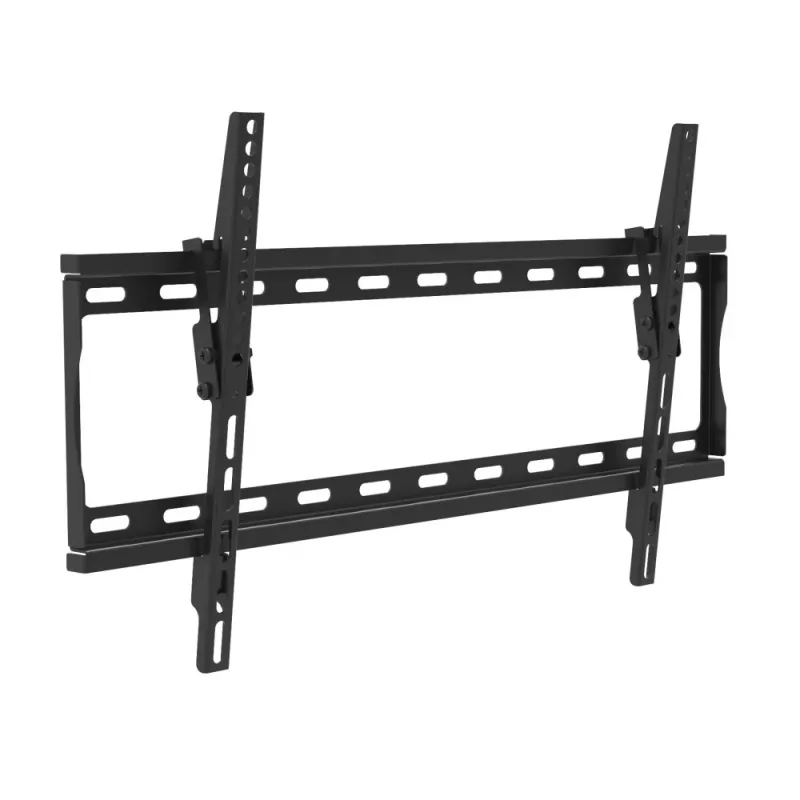

Supporto da parete per TV Techly ICA-PLB 261L 177,8 cm (70") nero

The Techly ICA-PLB 261L is a universal wall mount for LED and LCD TVs supporting screens from 30" up to 70" with a maximum load capacity of 60 kg. It features a foldable design and an open-frame structure that improves ventilation and provides easier access to cable connections. The bracket allows a shallow installation with a minimum distance to the wall of 2.5 cm and supports a range of VESA patterns for compatibility with many TV models.

Advantages

The foldable mechanism enables the display to be positioned close to the wall or extended as needed, while the open structure reduces heat build-up behind the screen and makes routing cables simpler. The mount accepts VESA sizes from 200 x 200 mm to 600 x 400 mm and offers a slight tilt range of -10° to 0° for optimal viewing alignment. A provision for a safety padlock is included to help secure the display (padlock not included).

Suitable for

• Mounting LED or LCD TVs in living rooms and bedrooms
• Wall installation in offices and meeting rooms
• Use in receptions, waiting areas or public displays where access to cables is required

Key specifications

• Supported screen size: 30"–70"
• Maximum weight capacity: 60 kg
• VESA compatibility: 200 x 200 mm up to 600 x 400 mm
• Tilt range: -10° to 0°
• Minimum distance to wall when folded: 2.5 cm
• Color: Black

How to use

Secure the wall plate to a suitable load-bearing surface using appropriate fasteners for your wall type, align the mounting arms to match the TV's VESA holes, and attach the TV to the bracket according to the manufacturer's instructions. Adjust the tilt within the -10° to 0° range and fold the mount toward the wall or extend it as needed. If desired, install a padlock through the provided security point to limit unauthorized removal (padlock not supplied).

Recommendations

Verify wall structure and use appropriate anchors for the rated 60 kg load, have two people handle the TV during installation, and periodically check fasteners and cable routing for safety and stability.
