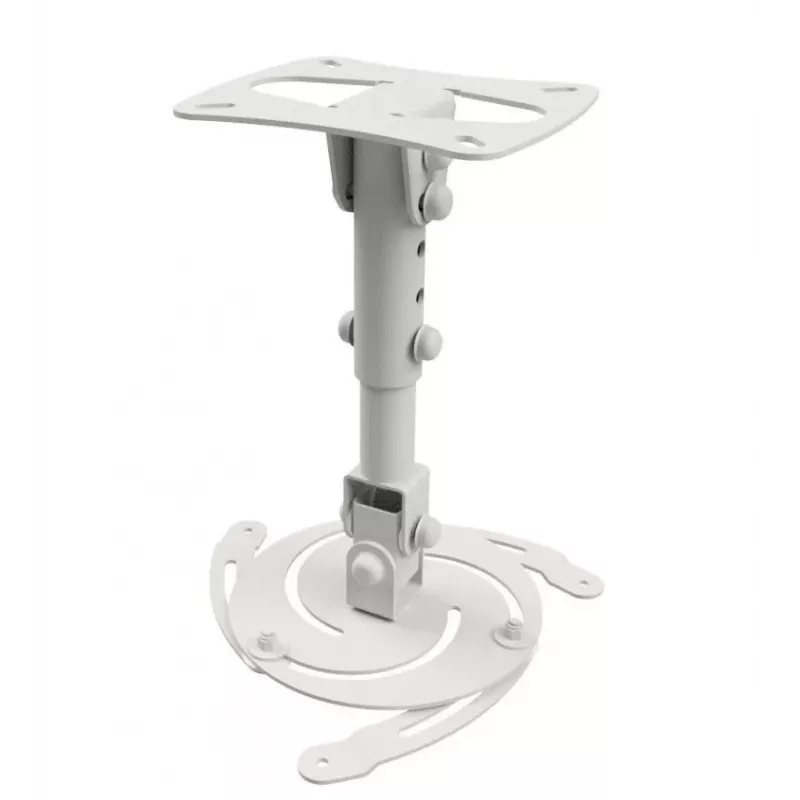

Supporto da soffitto Edbak PM3w-B

The Edbak PM3w-B ceiling mount is a universal, solidly built support designed for installing projectors in residential and commercial audiovisual setups. It provides a stable, secure connection between the projector and ceiling while keeping a low visual profile in white finish. The mount fits devices with three mounting holes and includes features that prevent accidental detachment.

Advantages

The PM3w-B offers a compact footprint and robust construction with a 15 kg load capacity suitable for most small and medium projectors. It includes a stepped adjustment for setting the distance from the ceiling and a safety design that reduces the risk of the projector falling out. The white colour and modest dimensions (175 mm width, 250 mm height, 142 mm depth) allow it to integrate unobtrusively into various interiors.

Suitable for

• Mounting small to medium projectors up to 15 kg
• Home cinema rooms and classrooms
• Conference rooms and meeting spaces
• Permanent audiovisual installations where a secure ceiling mount is required

Key specifications

• Brand: EDBAK
• Model: PM3w-B
• Maximum load capacity: 15 kg
• Dimensions (W×H×D): 175 × 250 × 142 mm
• Weight: 2.2 kg
• Mounting type: Ceiling
• Colour: White
• Compatible mounting pattern: 3 mounting holes
• MPN: PM3w-B
• EAN: 5902841103948

How to use

Position the PM3w-B on the chosen ceiling location and mark mounting points according to the mount base. Secure the mount to a suitable ceiling structure using appropriate anchors or fasteners for the ceiling material and expected load. Attach the projector to the mount using the three mounting holes and the supplied or compatible screws. Adjust the stepped distance to set the projector at the desired height and ensure all fasteners are tightened. Verify stability and alignment before completing the installation.

Recommendations

Install the mount on ceiling joists or use certified anchors for solid support. Use screws and fixings rated for at least the projector weight plus a safety margin. If unsure about ceiling structure or installation, consult a qualified installer to ensure safe and compliant mounting.
