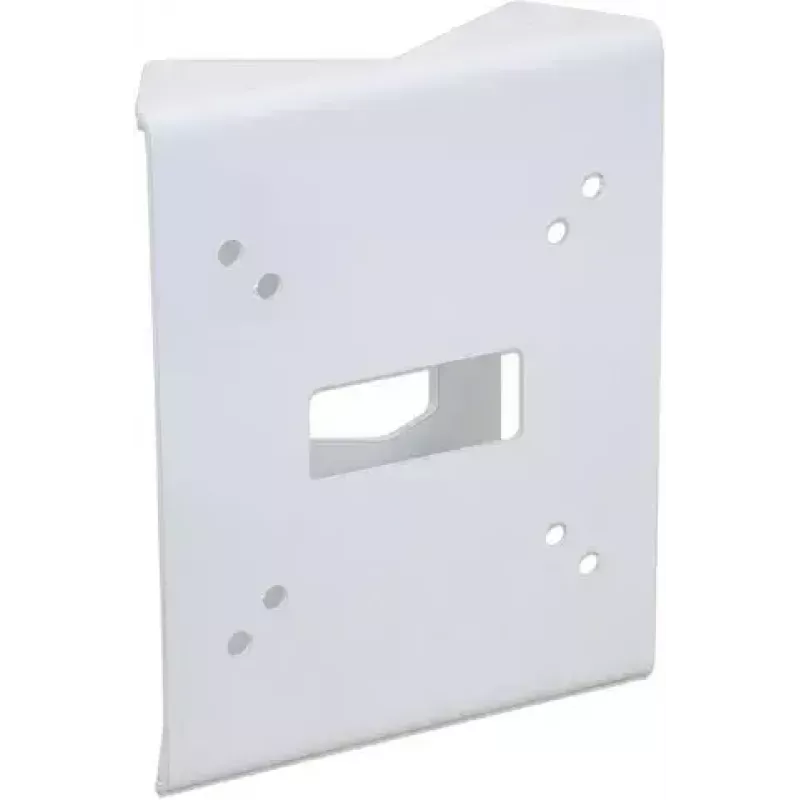

Supporto Mobotix MX-MH-SECUREFLEX-ESWS

The Mobotix MX-MH-SECUREFLEX-ESWS is a durable outdoor mount designed specifically for Mobotix security cameras. Finished in white, the mount provides a discreet appearance while delivering stable mechanical support for wired camera installations. Constructed from corrosion-resistant 3 mm stainless steel and supplied with metal mounting bands and fittings, it secures cameras to masts and poles with a reliable, long-lasting fit. The mount includes a grommet to protect cabling and is suitable for a wide range of pole diameters.

Advantages

This mount is made from 3 mm stainless steel for enhanced durability outdoors and resistance to corrosion. The white finish allows it to blend into residential and commercial environments. It supports mast or pole installation and accommodates pole circumferences from 60 to 180 mm, providing installation flexibility. Supplied metal mounting bands, fittings and a grommet simplify the mounting process and protect the cable entry, while the wired design ensures a stable connection for surveillance cameras.

Suitable for

• Mounting Mobotix wired security cameras on masts and poles
• Outdoor surveillance installations on residential and commercial properties
• Environments requiring corrosion-resistant mounting hardware

Key specifications

• Material: 3 mm stainless steel
• Color: white
• Mounting method: mast / pole mount
• Supported pole circumference: 60–180 mm
• Includes: 2 metal mounting bands, fittings and cable grommet

How to use

Position the mount at the desired height on the mast or pole and wrap the supplied metal mounting bands around the pole and mount. Tighten the bands with the included fittings to secure the bracket firmly in place. Feed the camera cable through the grommet to protect the cable from abrasion and weather exposure, then attach the Mobotix camera to the mount according to the camera’s mounting interface and wiring requirements. Ensure all fittings are tightened and the camera is correctly aligned before completing the installation.

Recommendations

For long-term outdoor use, periodically inspect the mounting bands and fittings for tightness and signs of wear. When installing on larger or irregular poles, verify the circumference range (60–180 mm) before mounting. Use appropriate tools to achieve secure fastening and seal cable entry points as required to maintain weather resistance.
