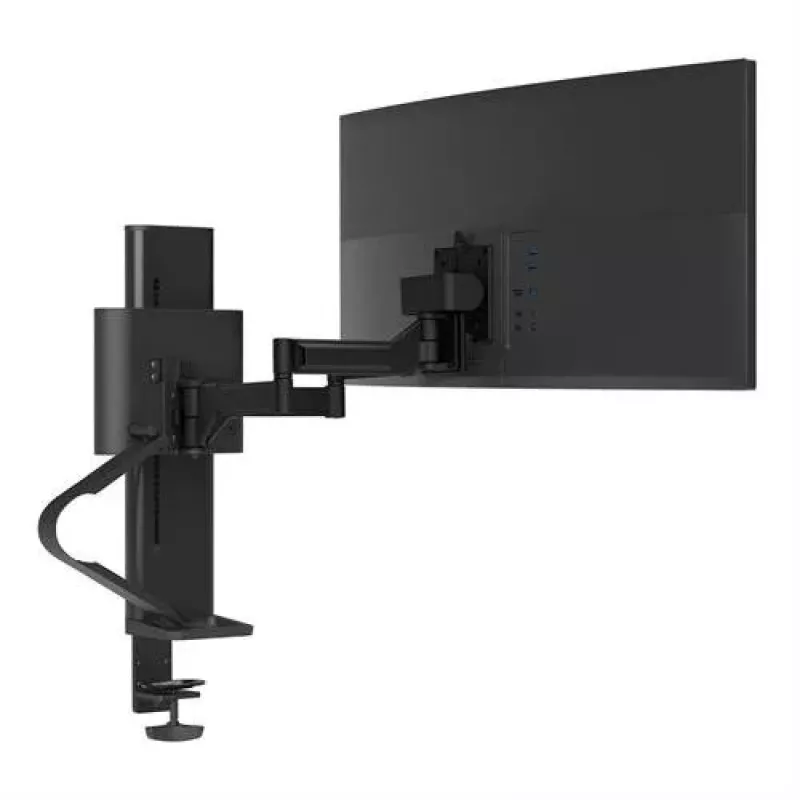

Supporto monitor Ergotron TRACE 45-630-224

The ERGOTRON TRACE 45-630-224 monitor mount supports a single display up to 96.5 cm (38") and a maximum weight of 9.8 kg. It offers smooth height adjustment and a wide tilt range to accommodate different postures and tasks. The mount accepts VESA patterns from 75 x 75 mm to 100 x 100 mm and installs via an easy clamp mechanism. Its modular construction and durable black finish are designed for long-term use and workplace integration.

Advantages

The TRACE mount adapts intuitively between sitting and standing positions and returns to a natural home position, promoting ergonomic movement and collaboration. Its modular design simplifies installation and future upgrades, while the product is backed by a premium 15-year warranty. The clamp mounting system provides a secure attachment without permanent desk modification.

Suitable for

• Home and office workstations with desk edges suitable for clamp mounting
• Users who need frequent height and tilt adjustments for ergonomic comfort
• Single-monitor setups up to 38" and 9.8 kg
• Environments requiring VESA 75 x 75 mm or 100 x 100 mm compatibility

Key specifications

• Model: ERGOTRON TRACE 45-630-224
• Maximum screen size: 38" (96.5 cm)
• Maximum weight capacity: 9.8 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm

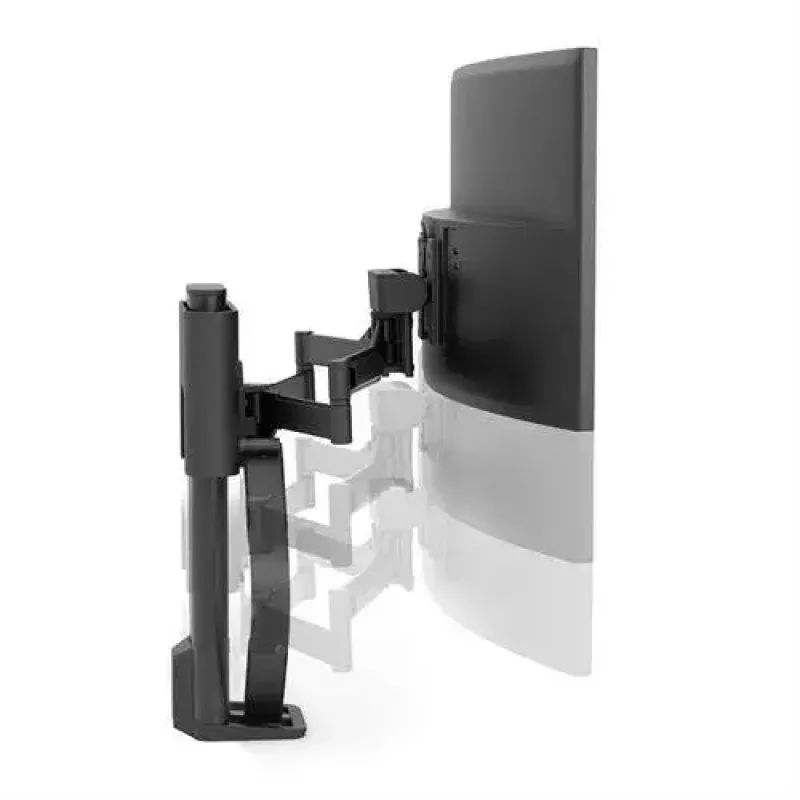

• Tilt range: 0°–80°
• Mounting type: Clamp
• Colour: Black
• Number of displays supported: 1
• Warranty: 15 years (manufacturer)

How to use

Attach the clamp to a compatible desk edge following the supplied instructions and secure the mounting arm. Fit the monitor to the VESA plate (75 x 75 mm or 100 x 100 mm) and fasten using the appropriate screws. Adjust monitor height and tilt to the preferred ergonomic position; the mechanism allows smooth transitions and will return to a neutral home position when released.

Recommendations

For optimal ergonomics, set the top of the screen at or slightly below eye level and position the monitor about an arm's length away. Confirm your desk thickness is compatible with the clamp range before installation and use the manufacturer-supplied fasteners for secure mounting.
