Supporto per monitor Manhattan 461566

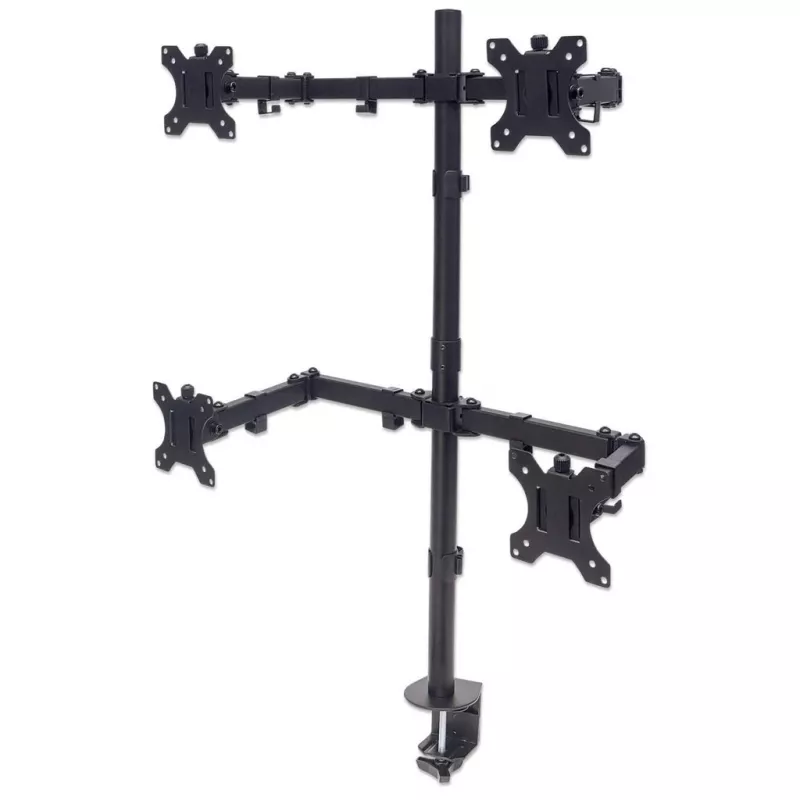

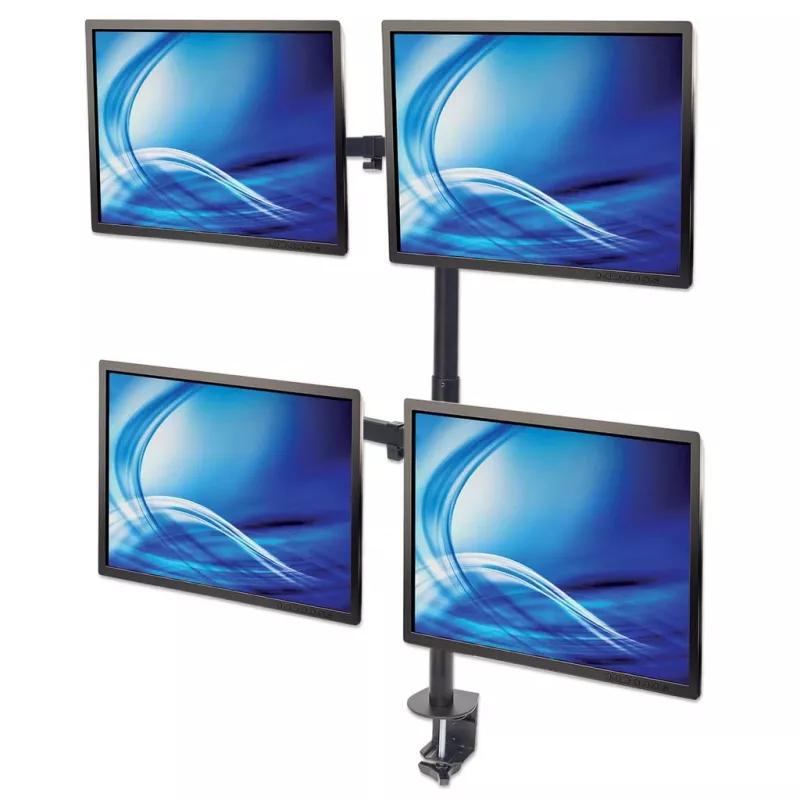

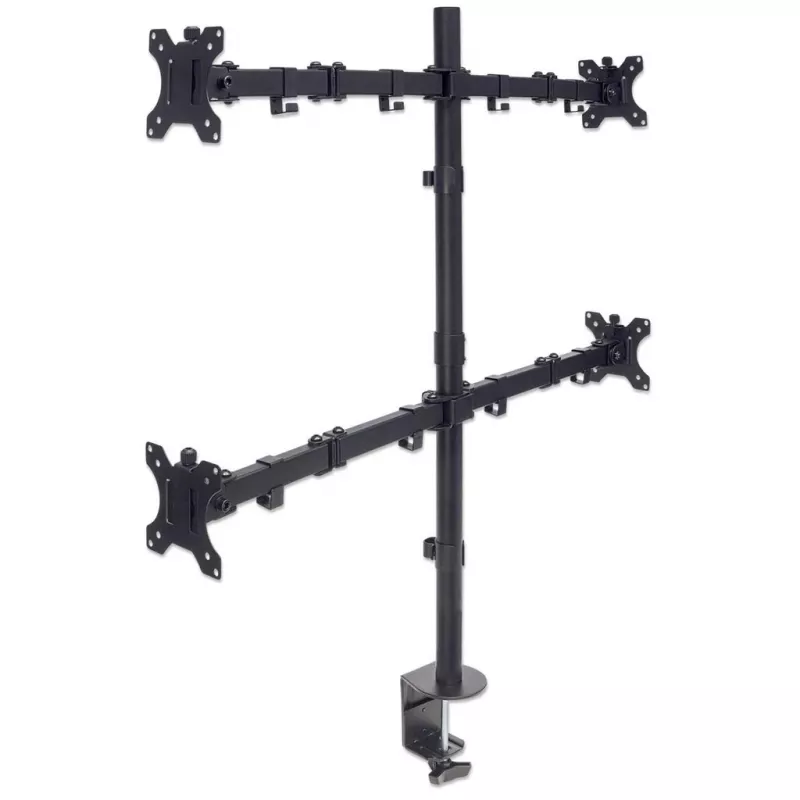

The Manhattan Monitor Mount 461566 is a heavy-duty mounting solution designed to hold up to four monitors above the desktop, helping organize workspace and increase productivity. Constructed from die-cast metal and finished in black, the mount supports screens from 10" to 32" with VESA compatibility from 75 x 75 mm to 100 x 100 mm and a combined maximum weight capacity of 32 kg. It offers clamp or stand mounting options and includes double-link swing arms for flexible positioning.

Advantages

This four-monitor mount provides stable, durable support thanks to its die-cast metal construction and secure clamp. Fully adjustable tilt (‑45° to 45°), rotation, side-to-side, height and tension controls allow precise positioning for comfortable viewing. The mount pole permits easy rotation of monitors to share presentations or media with others. Installation does not require drilling when using the included clamp, and the product is backed by a lifetime warranty.

Suitable for

• Multiscreen workstation setups for trading, programming, or data analysis
• Offices and home workspaces where desk surface must be freed
• Collaboration areas and meeting rooms for shared screen viewing

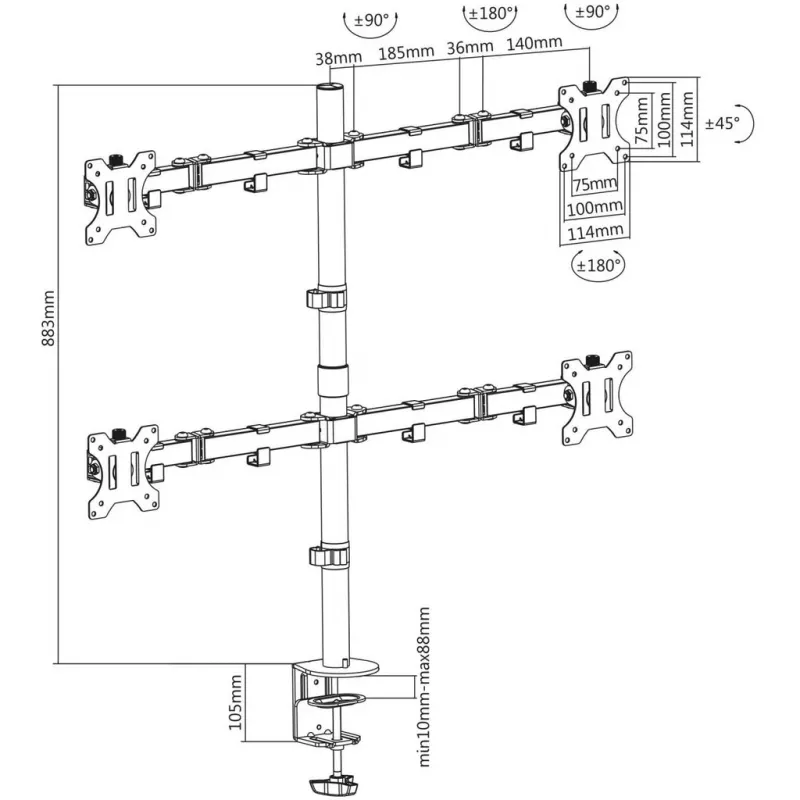

Key specifications

• Model: Manhattan 461566
• Number of displays supported: 4
• Screen size range: 10"–32"
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Maximum weight capacity: 32 kg (total)
• Weight: 7.73 kg
• Mounting options: desk clamp or stand
• Tilt range: -45° to 45°; rotation and height adjustable
• Colour: Black

How to use

Attach the mount to the desk using the clamp or install the stand base according to your workspace and the included instructions. Secure each monitor to the VESA plate (75 x 75 or 100 x 100 mm) and tighten the fixing screws. Adjust tilt, rotation, side-to-side position, height and arm tension to achieve the desired viewing angles. When necessary, rotate the monitors around the pole to share the display with others.

Recommendations

Ensure total combined weight of all attached monitors does not exceed the 32 kg capacity. Periodically check and re-tighten clamp and VESA fastening screws to maintain stability. Adjust arm tension so monitors hold position without drifting but can still be repositioned safely.
