Supporto per TV LogiLink BP0017 177,8 cm (70") nero

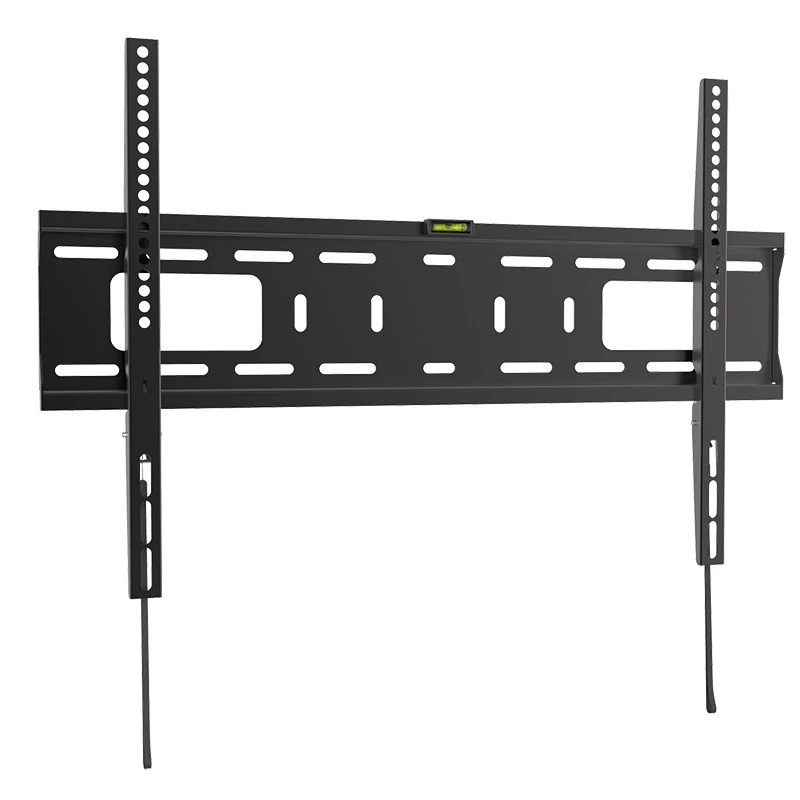

The LogiLink BP0017 TV mount supports flat-screen TVs from 94 cm (37") to 177.8 cm (70") and holds up to 50 kg. Designed for a minimal distance to the wall (2.5 cm), this black mount provides a slim, space-saving installation and is compatible with VESA patterns from 200 x 200 mm to 600 x 400 mm for secure attachment of a single display.

Advantages

The mount offers a very slim profile with only 2.5 cm distance to the wall, saving space and giving a flush appearance. It supports a wide range of VESA standards (200 x 200 to 600 x 400 mm) and up to 50 kg weight, covering most 37"–70" TVs. Its black finish is neutral and fits common interiors.

Suitable for

• Mounting 37"–70" flat-screen TVs
• Living rooms and bedrooms where a slim wall fit is required
• TVs with VESA 200 x 200 mm up to 600 x 400 mm

Key specifications

• Maximum screen size: 177.8 cm (70")
• VESA compatibility: 200 x 200 mm — 600 x 400 mm
• Maximum weight capacity: 50 kg
• Distance to wall: 2.5 cm
• Colour: Black
• Number of displays supported: 1

How to use

Select a suitable mounting location on a load-bearing wall and confirm that the TV's VESA pattern is within the supported range (200 x 200 to 600 x 400 mm) and that the TV weight does not exceed 50 kg. Attach the mounting plate to the wall using appropriate anchors and screws for your wall type, then fasten the TV brackets to the display and hang the TV on the wall plate. Ensure all fasteners are tightened and check the TV is secure and level.

Recommendations

Use suitable wall anchors for concrete, brick, or stud walls and follow the TV manufacturer's instructions for bracket attachment. If unsure about wall strength or installation, consult a professional installer to ensure safe and stable mounting.
