Supporto/piedistallo per TV Vivolink VLFS70120 3,05 m (120 pollici) nero

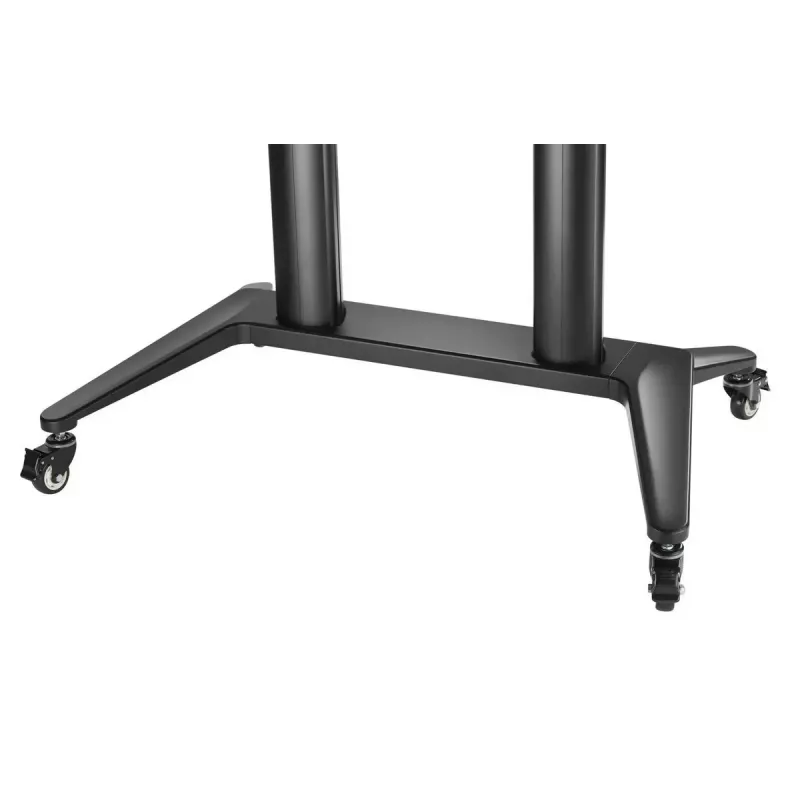

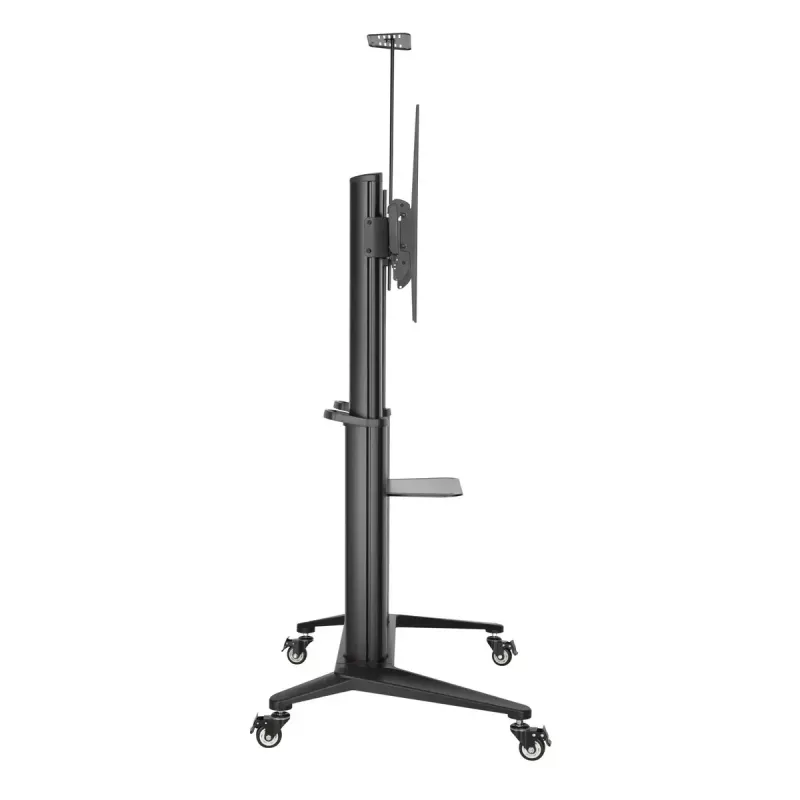

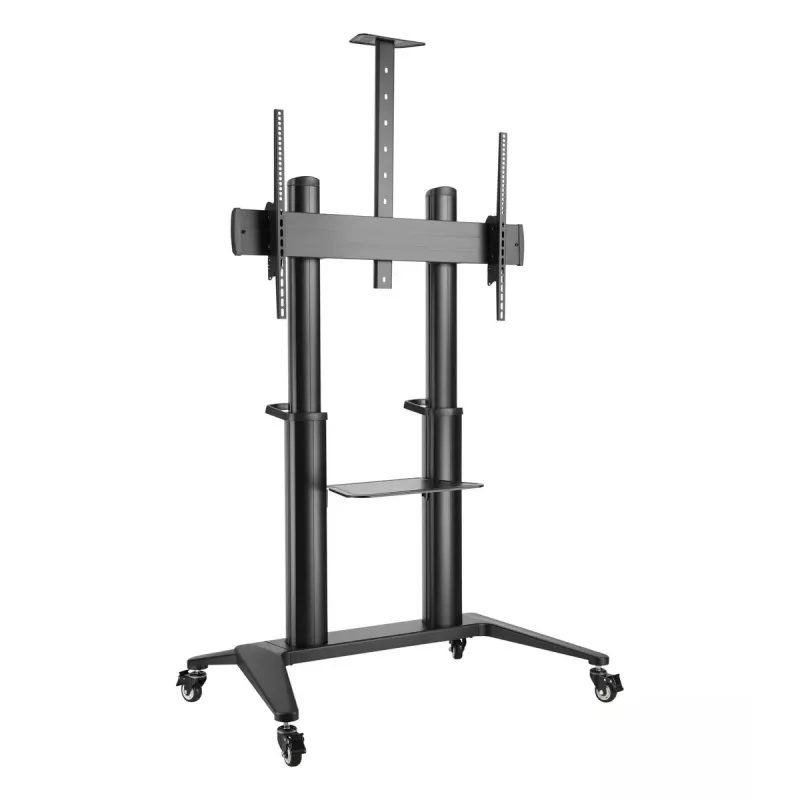

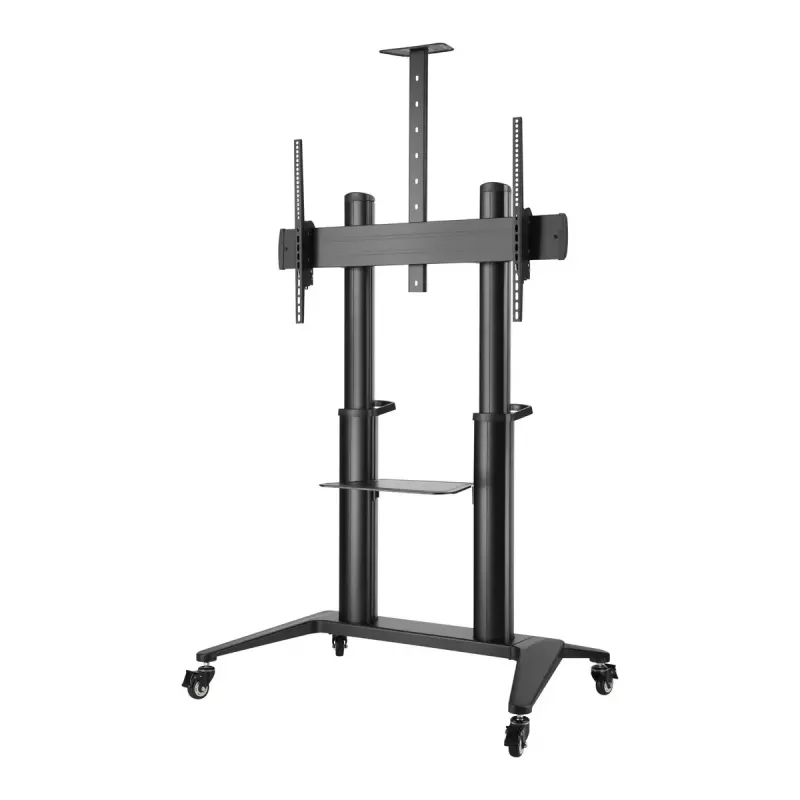

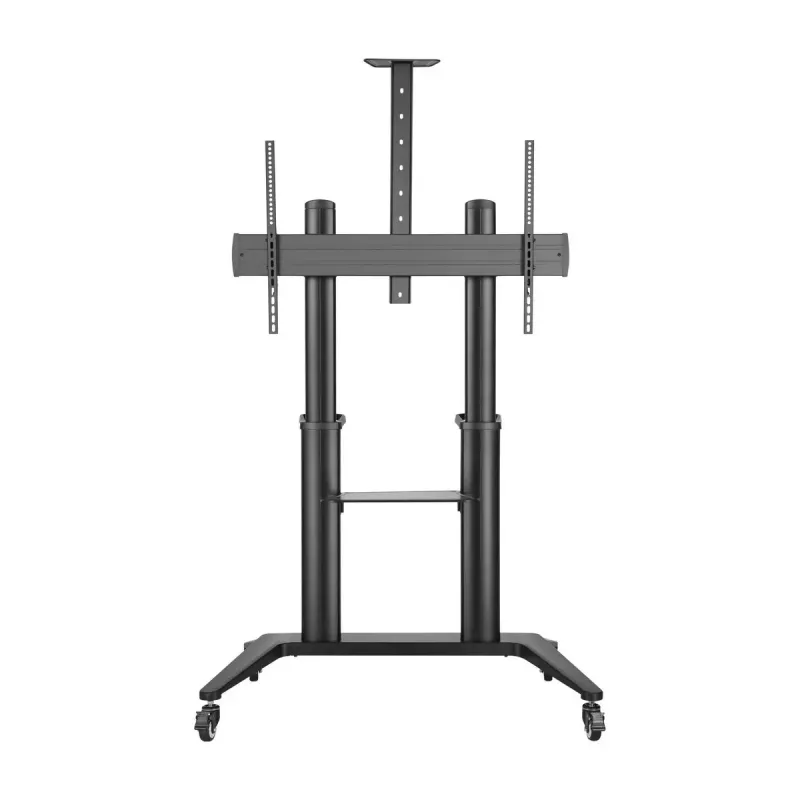

The Vivolink VLFS70120 TV mount is a mobile aluminium cart designed for large screens from 70" up to 120" with a maximum load capacity of 140 kg. The enhanced supporting column and sturdy base improve stability while vertical height adjustment and a height-adjustable equipment shelf allow flexible positioning of displays and accessories. Heavy-duty lockable casters and handles enable safe, quick relocation.

Advantages

The mount combines a reinforced aluminium column with a broad base to reduce wobble and provide reliable support for large displays. Height-adjustable shelves for equipment and camera, integrated cable management and a tilt range of -10° to 5° add installation flexibility. Locking casters and ergonomic handles make moving and securing the cart simple and safe.

Suitable for

• Meeting rooms and conference spaces
• Classrooms and lecture halls
• Reception areas and public displays
• Temporary events, trade shows and presentations

Key specifications

• Model: Vivolink VLFS70120
• Suitable screen size: 70"–120"
• Maximum weight capacity: 140 kg
• Maximum VESA: 1000 x 600 mm
• Height adjustment range: 1250–1600 mm
• Tilt range: -10° to 5°
• Colour: Black
• Net weight: 34.9 kg
• Number of displays supported: 1

How to use

Position the cart on a suitable flat surface and lock the casters before mounting. Attach the display to the VESA-compatible bracket following the screen manufacturer’s mounting instructions, ensuring the screen weight does not exceed 140 kg and that the VESA pattern matches 200 x 200 mm up to 1000 x 600 mm. Adjust the column height between 1250 and 1600 mm and set the tilt between -10° and 5° to the desired viewing angle. Use the equipment shelf and camera shelf for peripheral devices, and route cables through the built-in cable management system.

Recommendations

Check the display’s VESA pattern and weight before installation, lock the casters after positioning, and secure cables to prevent tripping or strain on connectors. For permanent installations, verify floor load limits and follow local safety regulations when moving or configuring large screens.
