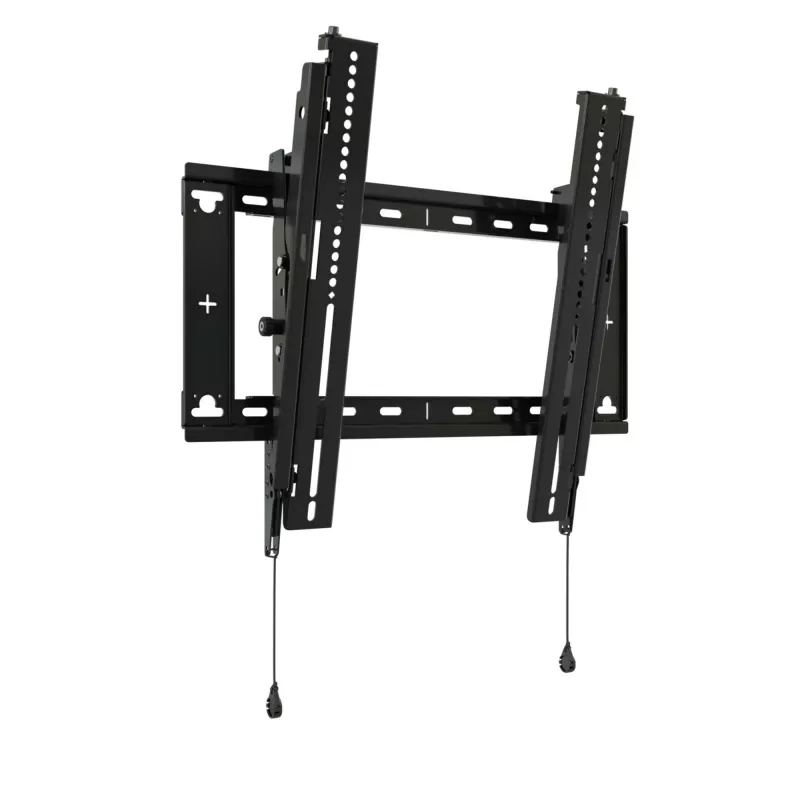

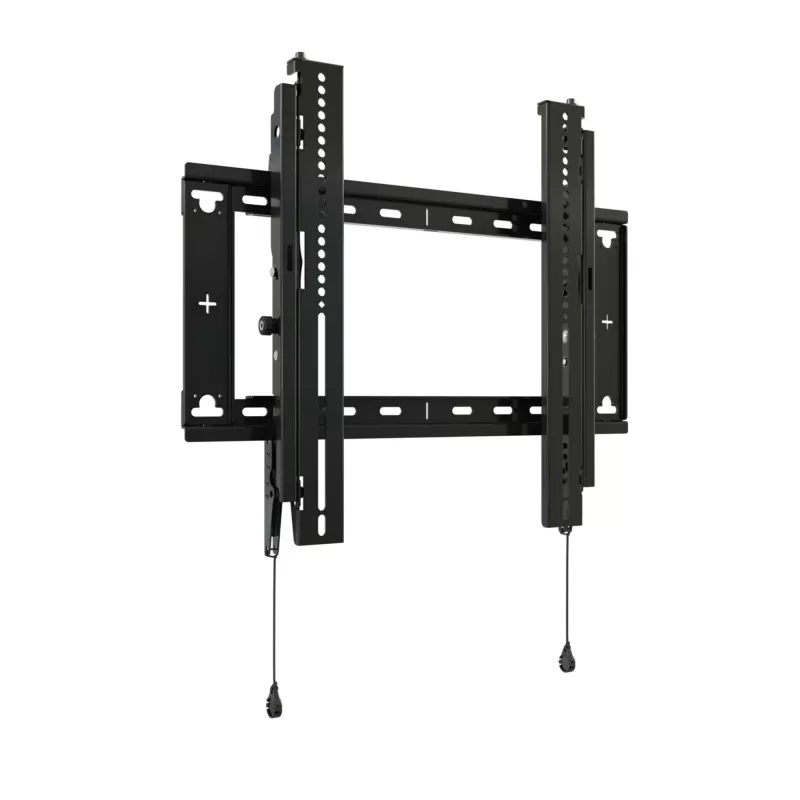

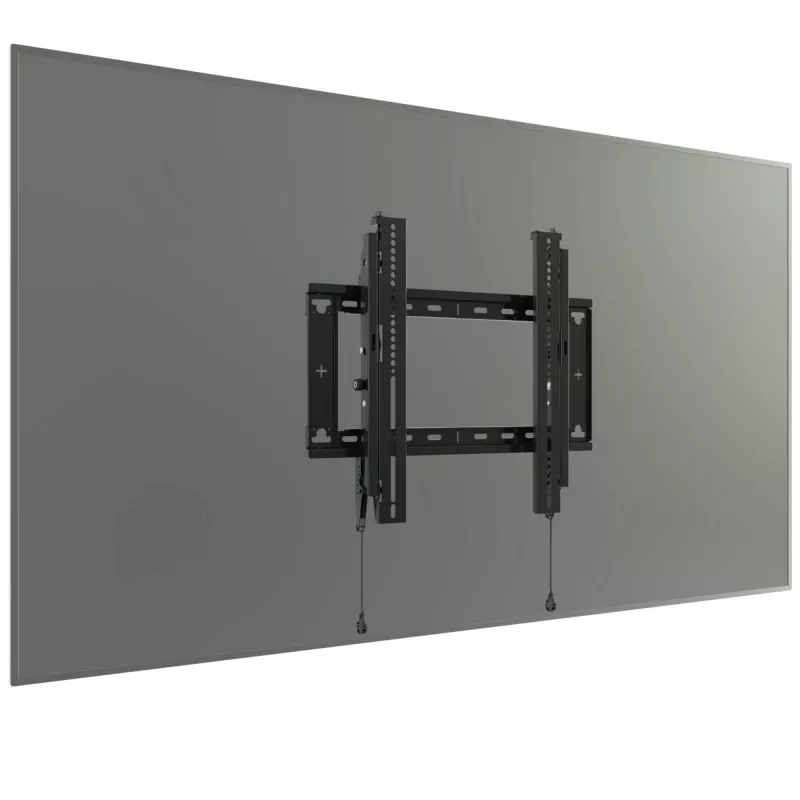

Supporto/stand TV Chief RMT3 165,1 cm (65") nero

The Fit series RMT3 is a medium-tilt wall mount designed for 32" to 65" displays and supports VESA mounting patterns up to 508 x 450 mm. The mount provides a low-profile installation with a 2" (51 mm) depth and a maximum load capacity of 56.7 kg (125 lbs). It is engineered to meet UL and TUV safety standards and offers up to 12° of tilt plus post-installation leveling.

Advantages

The Chief RMT3 mount combines a compact 2" low-profile depth with a robust wall plate capable of supporting up to 56.7 kg. Post-installation leveling of 0.75" (19 mm) simplifies alignment after mounting. The design supports common VESA patterns up to 508 x 450 mm and provides a tilt range of up to 12° for improved screen angle control. UL and TUV approvals confirm compliance with recognized safety standards.

Suitable for

• Mounting 32" to 65" LED/LCD screens
• Single-display installations in homes and offices
• Displays requiring VESA compatibility up to 508 x 450 mm
• Applications needing a low-profile, tilt-capable wall mount

Key specifications

• Maximum screen size: 65"
• Maximum weight capacity: 56.7 kg (125 lbs)
• Maximum VESA mount: 508 x 450 mm
• Depth from wall: 2" (51 mm)
• Tilt range: up to 12° (tilt -12° to 0°)
• Post-installation leveling: 0.75" (19 mm)
• Colour: Black
• Supported displays: 1

How to use

Locate suitable wall studs or a structural surface and mark mounting points according to the VESA pattern of the display. Secure the wall plate to the wall using appropriate fasteners for the wall type and rated for the mount's load capacity. Attach the display to the mount using the correct VESA screws and verify the connection. Adjust the tilt up to 12° as needed and perform up to 0.75" (19 mm) of post-installation leveling to achieve correct screen alignment.

Recommendations

Use appropriate anchors and hardware for the wall material and ensure total installed weight does not exceed 56.7 kg. Follow the display manufacturer’s instructions for screw sizes and mounting points. For safety and compliance, follow local codes and consider professional installation for heavy displays or complex wall structures.
