Supporto Techly per montaggio su palo TV LED/LCD 17–32 pollici nero

The Techly ICA-LCD-110BK TV mount is a compact, low-profile wall bracket engineered for flat-panel screens from 17" to 32". It supports common VESA patterns from 75 x 75 mm up to 100 x 100 mm and accommodates displays up to 8 kg. The bracket provides adjustable tilt from -30° to 30° and swivel from -90° to 90°, enabling precise positioning for comfortable viewing while maintaining a discreet black finish that blends with most interiors.

Advantages

This TV mount offers a combination of adjustability and compact design: tilt and swivel ranges allow fine tuning of viewing angle, while the slim profile keeps the screen close to the wall. Constructed to hold a single display up to the stated weight, the mount is straightforward to install and suitable for small to medium-sized rooms. Its black colour provides a neutral appearance that reduces visual distraction around the screen.

Suitable for

• Mounting 17"–32" flat-panel TVs or monitors in living rooms and bedrooms
• Wall-mounting displays in offices, meeting rooms and reception areas
• Space-saving installations where a low-profile bracket is required
• Situations requiring frequent viewing angle adjustments via tilt or swivel

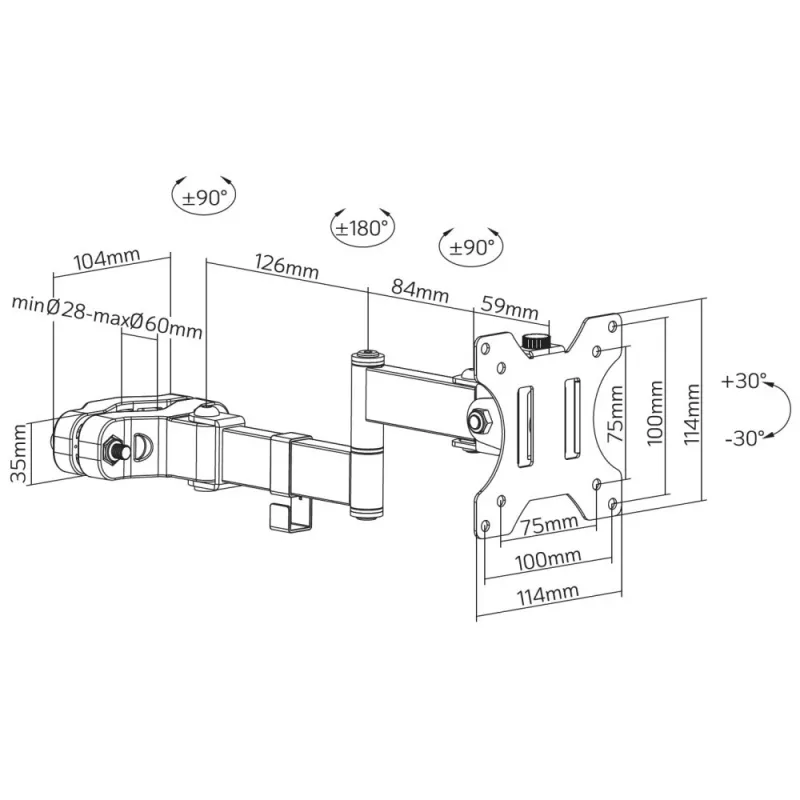

Key specifications

• Supported screen size: 17"–32"
• Supported VESA: 75 x 75 mm, 100 x 100 mm
• Maximum load capacity: 8 kg

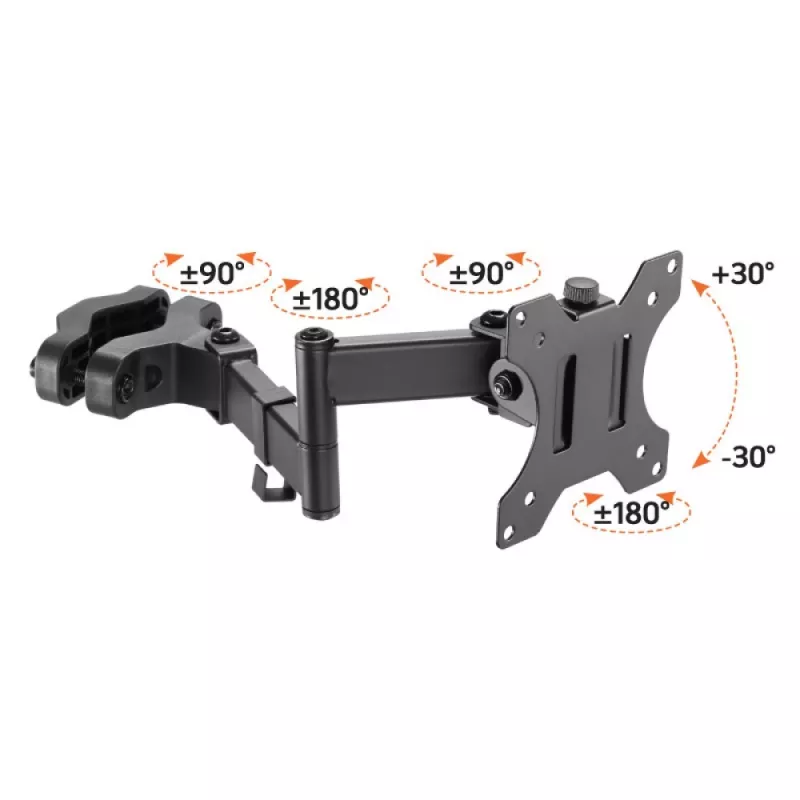

• Tilt range: -30° to 30°
• Swivel range: -90° to 90°
• Weight of mount: 1.372 kg
• Finish: black
• Number of displays supported: 1

How to use

Determine the desired mounting height and check that the display's VESA pattern is compatible with the bracket. Secure the wall plate to a suitable surface using appropriate anchors or fixings for the wall type, then attach the adapter plate to the display using the correct mounting screws. Lift the display onto the wall plate and engage the safety features according to the included instructions. Adjust tilt and swivel to achieve the preferred viewing angle and tighten any locking mechanisms to maintain position.

Recommendations

Before installation, verify wall strength and use appropriate fixings for drywall, concrete or brick. Do not exceed the maximum load capacity of 8 kg and ensure the screen's VESA pattern matches one of the supported sizes. For optimal ergonomics, position the screen so the center is at or slightly below eye level when seated. Periodically check mounting hardware for tightness and stability.
