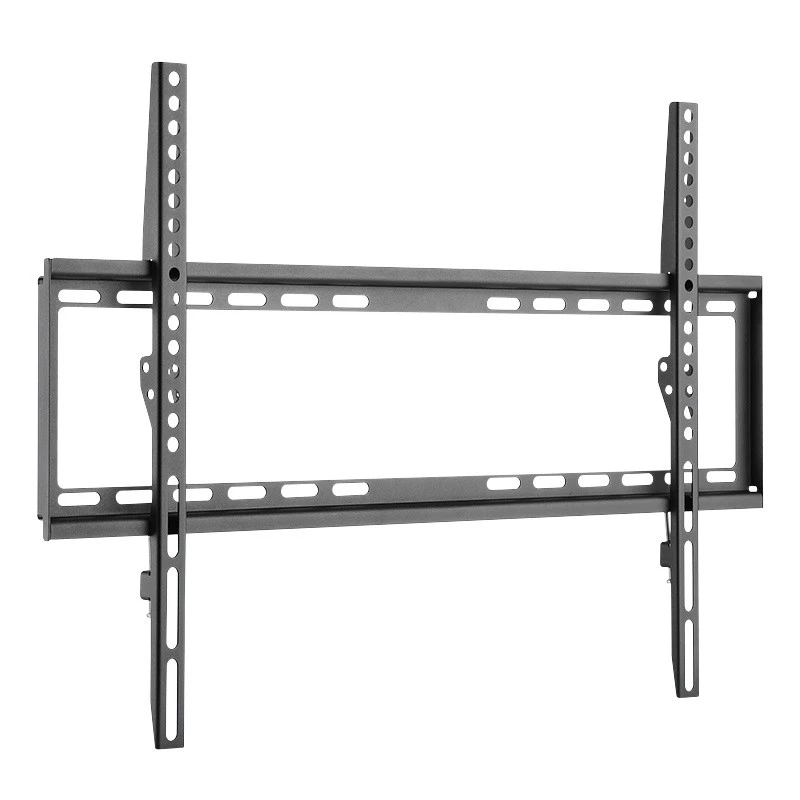

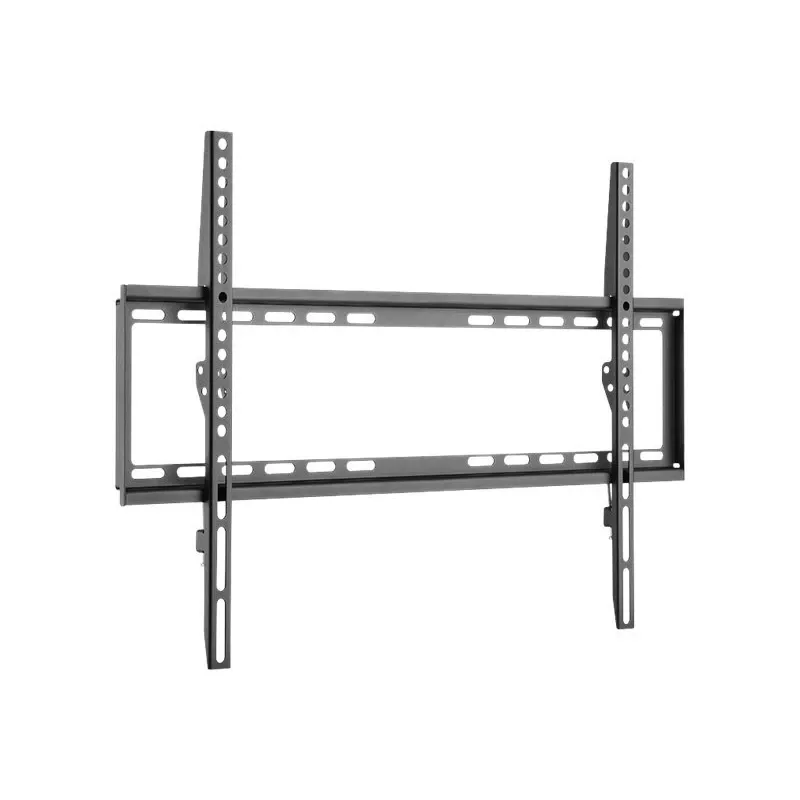

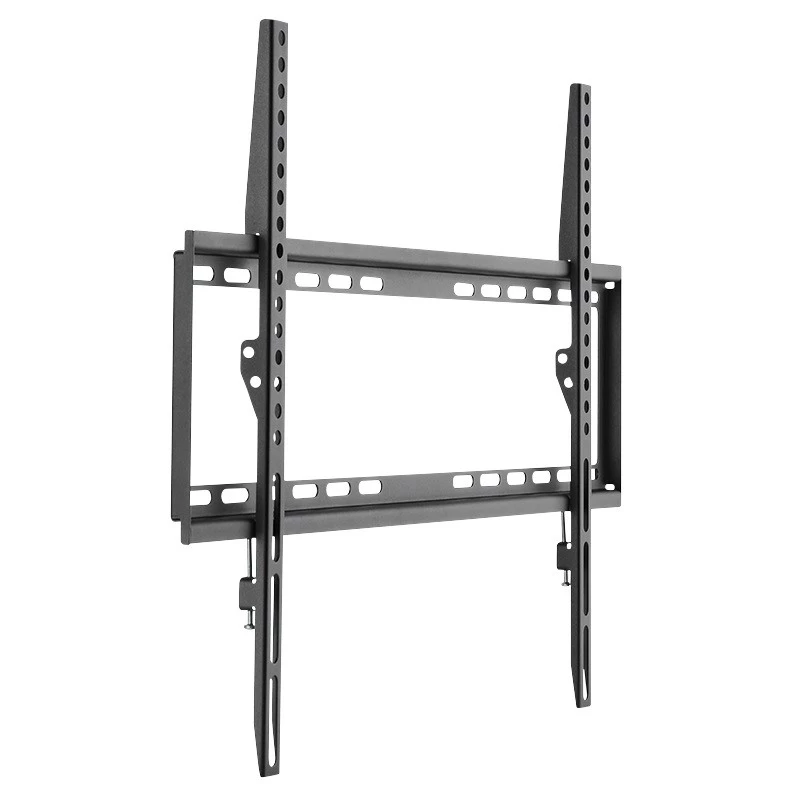

Supporto TV LogiLink BP0038 177,8 cm (70") nero acciaio inox

The LogiLink BP0038 TV mount allows you to attach a flat-screen TV close to the wall to save space and achieve a neat installation. Designed for regular living-room TVs, it supports screens from 37" to 70" and combines a black finish with stainless-steel elements for durability. The mount offers VESA compatibility from 200x200 up to 600x400 and a minimal wall clearance of 20.5 mm.

Advantages

Flat construction provides an unobtrusive profile and keeps the TV particularly close to the wall. The mount is made from solid materials to ensure a secure hold for a single display up to 35 kg. Broad VESA support covers common hole patterns, making the bracket compatible with many TV models in the 37–70" range.

Suitable for

• Wall mounting a single 37–70" TV in the living room
• Homes where low-profile installation is desired
• Setups requiring VESA 200x200, 300x300, 400x200, 400x400 or 600x400

Key specifications

• Supported screen size: 37–70"
• Maximum load: 35 kg (77 lbs)
• VESA compatibility: 200x200, 300x300, 400x200, 400x400, 600x400

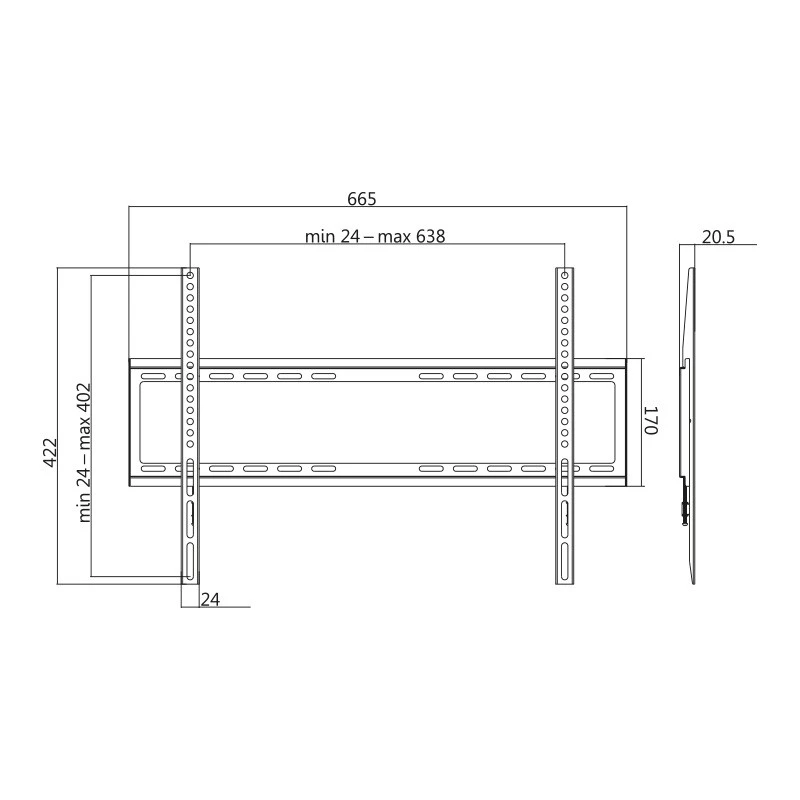

• Wall clearance: 20.5 mm (2.05 cm)
• Mounting type: fixed
• Colour: Black with stainless-steel elements

How to use

Position the mount on a suitable load-bearing wall and mark the drilling points according to the supplied template and the TV's VESA pattern. Drill holes, insert appropriate wall anchors for your wall type, and secure the bracket to the wall. Attach the compatible VESA plate to the rear of the TV, then hang the TV on the wall bracket and fasten all screws to the specified torque. Confirm the installation is level and stable before use.

Recommendations

Use suitable anchors for your wall material (concrete, brick, or stud wall) and follow the TV manufacturer’s mounting instructions. Do not exceed the maximum load of 35 kg and ensure at least one person assists when lifting the TV into place.
