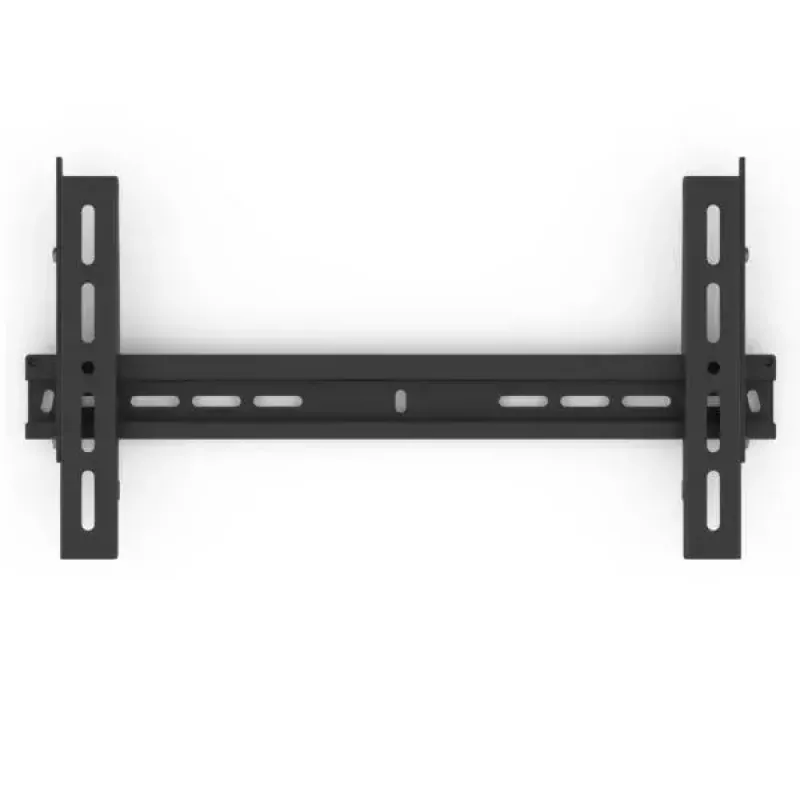

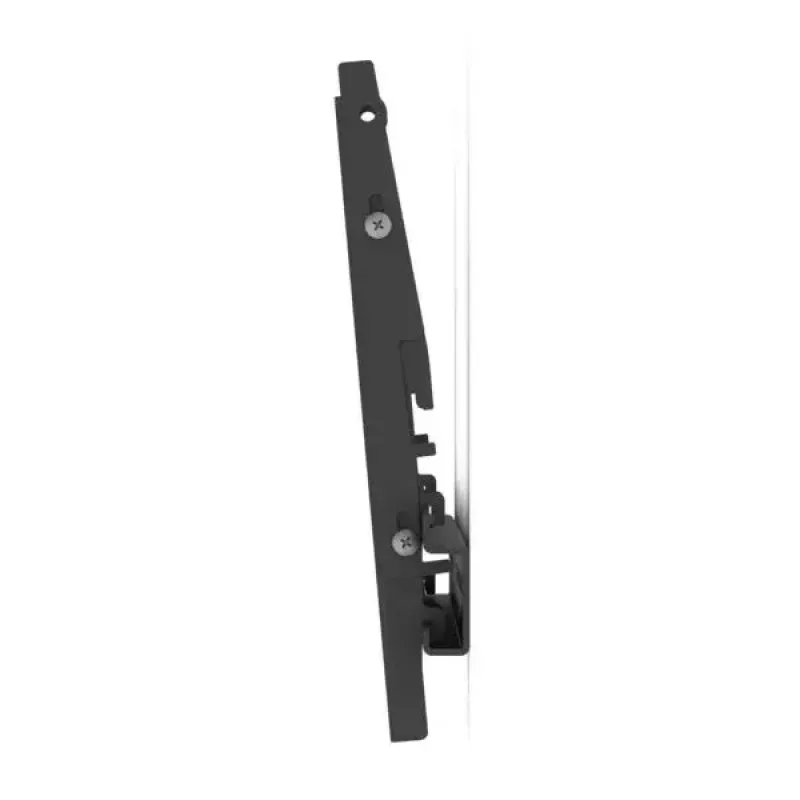

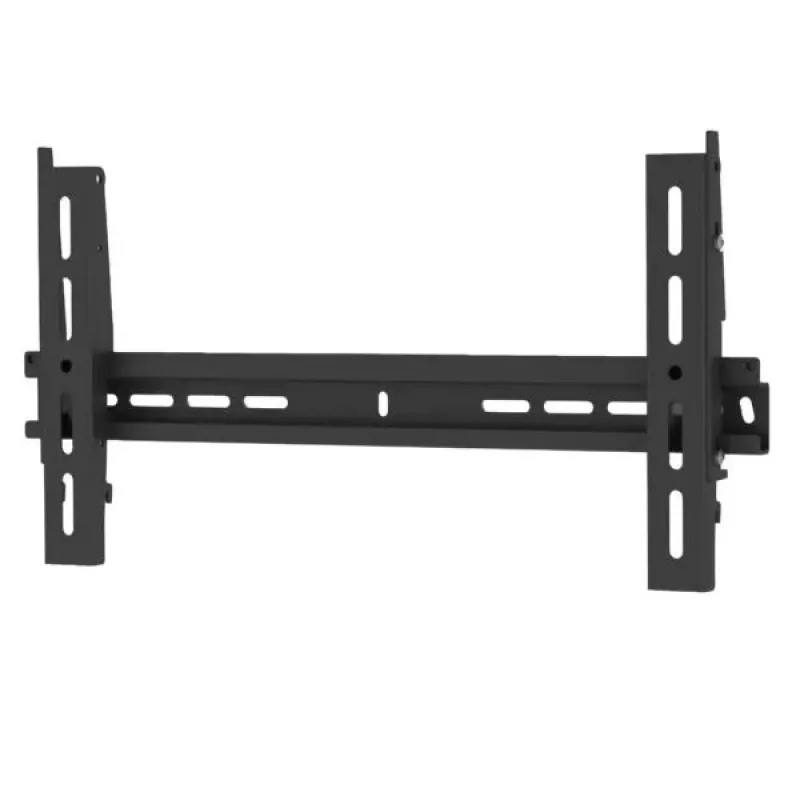

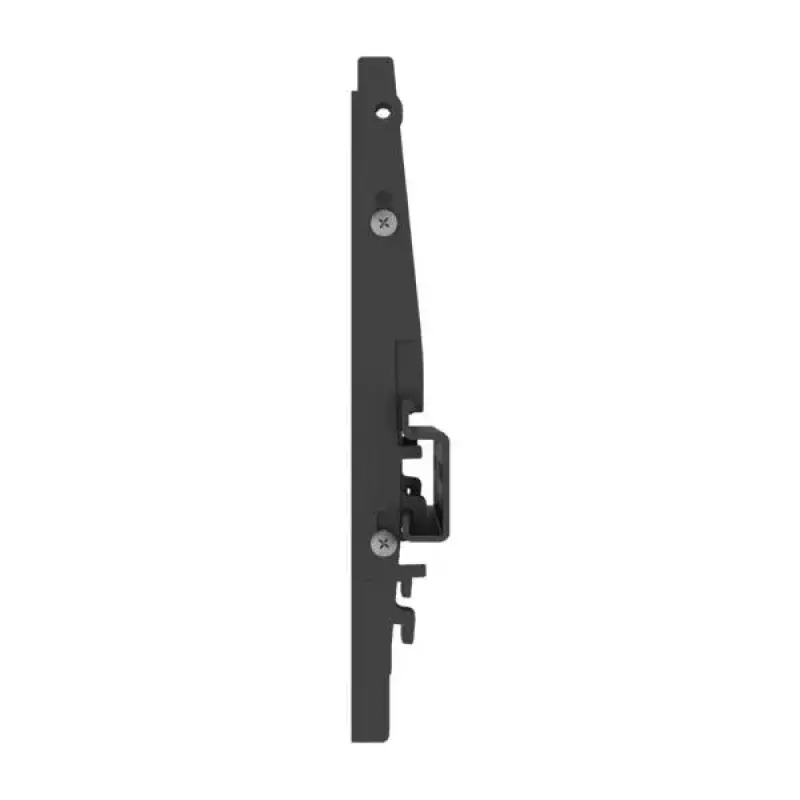

Supporto TV SMS Smart Media Solutions FS011075

Universal wall bracket with fixed tilt designed for mounting flat-panel displays weighing up to 50 kg. The SMS Smart Media Solutions FS011075 features a compact, black design and supports a wide range of VESA hole patterns from 100 x 100 mm up to 400 x 200 mm, with a minimum supported pattern of 75 x 75 mm. The bracket provides a fixed +5° tilt to improve viewing angle and includes the option to secure the display with a locking pin or padlock for added theft protection.

Advantages

This TV mount offers simple and secure wall installation for displays up to 50 kg. Its fixed +5° tilt helps reduce glare and optimize viewing height without moving parts. Compatibility with VESA patterns from 75 x 75 mm to 400 x 200 mm covers most common display models. The ability to lock the bracket with a locking pin or padlock increases safety and reduces the risk of unauthorized removal.

Suitable for

• Mounting LED/LCD/Plasma TVs and monitors up to 50 kg
• Displays with VESA patterns between 75 x 75 mm and 400 x 200 mm
• Home, office, retail or public areas where simple, fixed tilt mounting is required

Key specifications

• Maximum weight capacity: 50 kg
• Supported VESA patterns: minimum 75 x 75 mm; typical range 100 x 100 mm to 400 x 200 mm
• Tilt: fixed +5°
• Colour: Black
• Brand: SMS; Model: FS011075; EAN: 7331394926526

How to use

Attach the bracket to a suitable load-bearing wall using appropriate anchors and screws for the wall type. Fix the mounting plate to the back of the display following the VESA hole pattern alignment, then hang the display on the wall bracket and secure it. If required, insert the locking pin or a padlock to prevent removal. Verify that the display is level and firmly secured before releasing support.

Recommendations

Use appropriate wall fixings rated for the combined weight of the bracket and display; for drywall installations use anchors or mount into studs. Check the display's VESA pattern and weight to confirm compatibility before installation. If unsure, consult a professional installer.
