Supporto TV TechniSat 2020/2765 127 cm (50 pollici) nero

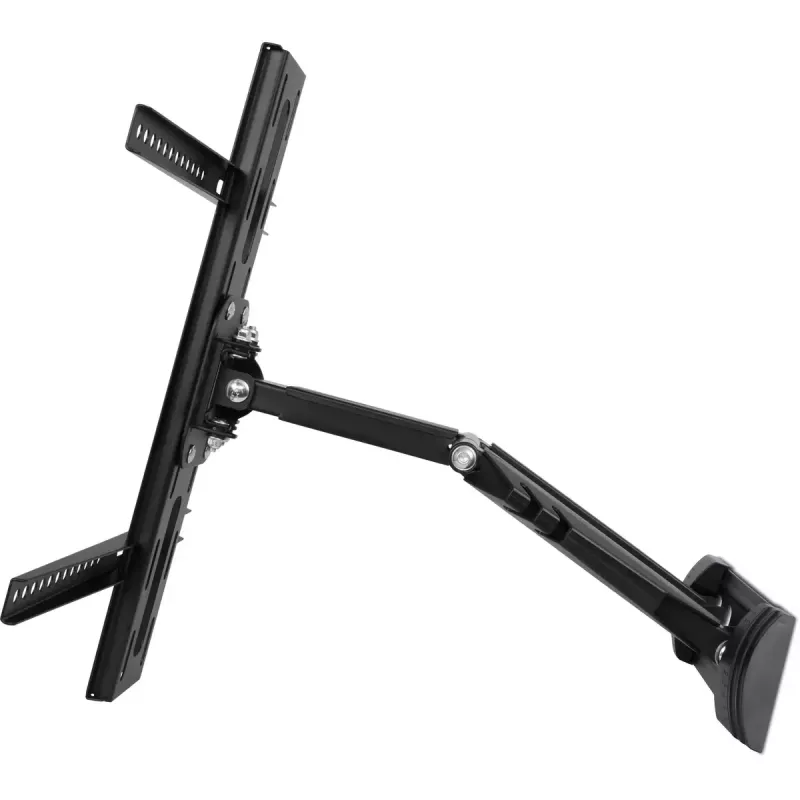

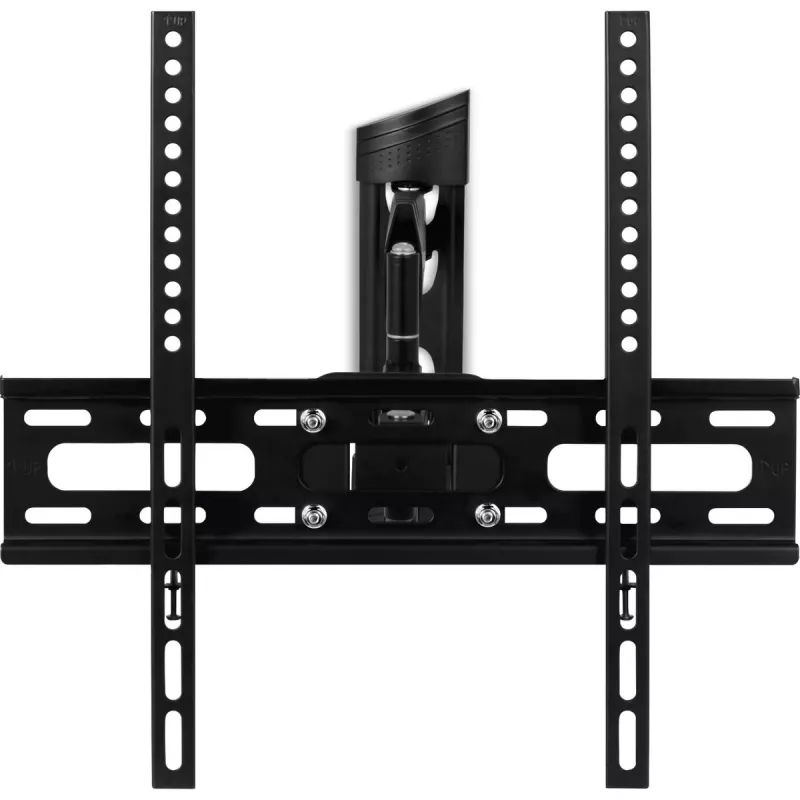

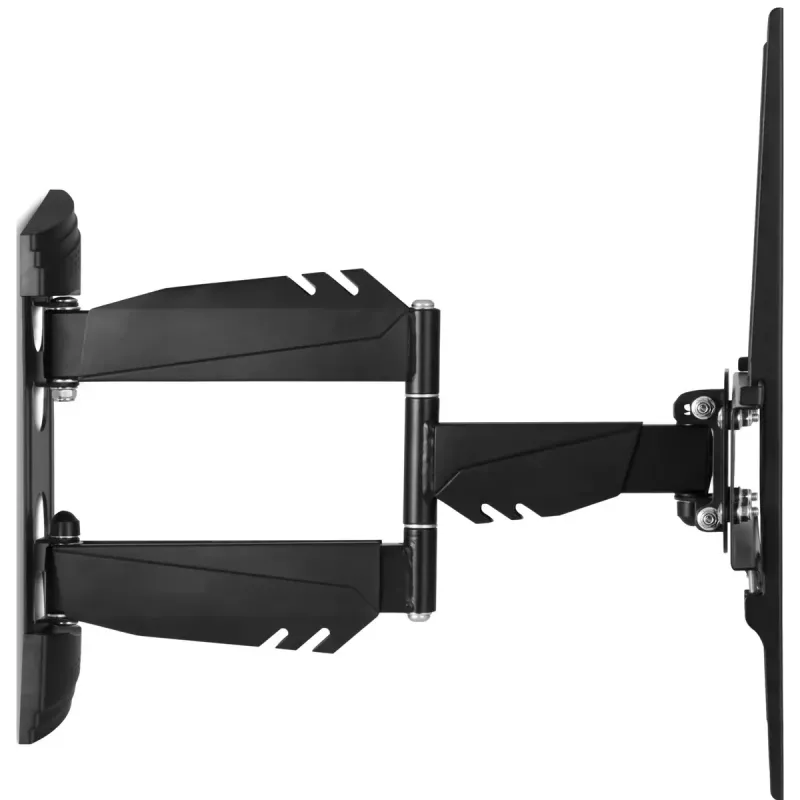

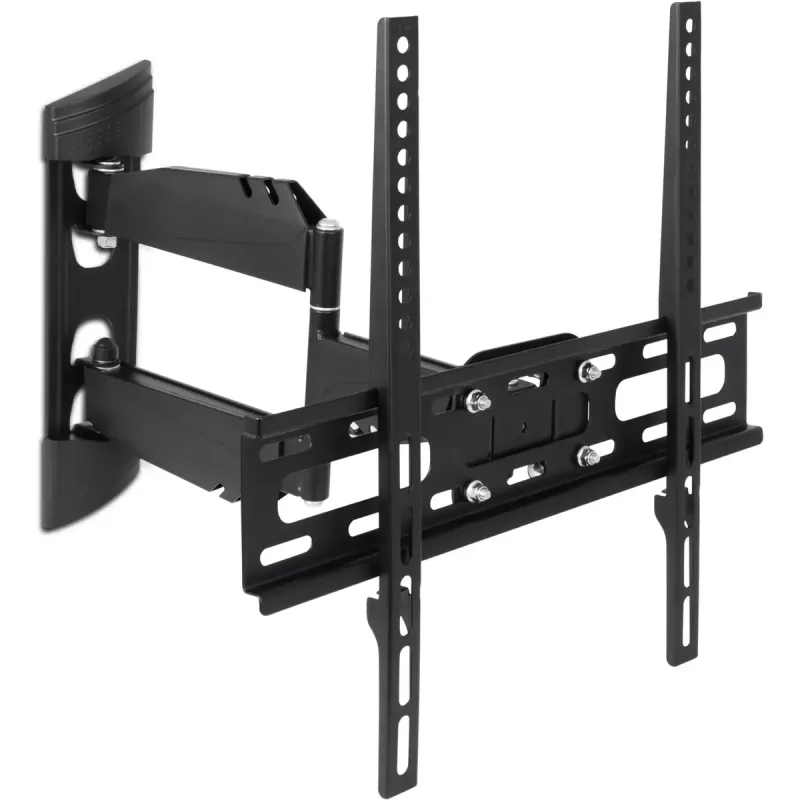

The TechniSat 2020/2765 TV mount is a wall bracket designed for flat-panel displays from 22" to 50" with a maximum support weight of 25 kg. It provides VESA compatibility up to 200 x 400 mm and a compact black finish. The bracket allows both tilt and swivel adjustments and a variable distance from the wall to suit different room layouts and viewing preferences.

Advantages

This TV mount offers a combination of space-saving design and flexible positioning. Its tilt range from -2° to 12° helps reduce glare and adjust vertical viewing angle, while the wide swivel range of -90° to 90° enables horizontal alignment across a broad viewing area. The adjustable mounting depth from 6.2 cm to 42.6 cm supports both low-profile installation and extended reach when needed. Constructed to carry up to 25 kg and compatible with a range of VESA patterns up to 200 x 400 mm, the mount fits many 22"–50" screens and integrates into different interior styles thanks to its black finish.

Suitable for

• Mounting small to medium flat-panel TVs in living rooms, bedrooms or offices
• Situations where tilt adjustment is needed to reduce reflections
• Rooms that require wide swivel for multiple seating areas or corner placements
• Installations that demand a mix of low-profile and extended wall distance options

Key specifications

• Screen size compatibility: 22" to 50"
• Maximum supported weight: 25 kg
• VESA compatibility: up to 200 x 400 mm
• Tilt range: -2° to 12°
• Swivel range: -90° to 90°
• Distance to wall: 6.2 cm (minimum) to 42.6 cm (maximum)
• Finish: black

How to use

Select an appropriate mounting location on a load-bearing wall and verify the wall type and fixing requirements. Attach the wall plate securely using suitable anchors and screws for your wall material, then fasten the brackets to the TV in line with its VESA mounting holes. Lift the screen onto the wall plate with assistance and secure it according to the mount's locking mechanism. Use the tilt and swivel adjustments to set the desired viewing angle and ensure all fasteners are tightened before final use.

Recommendations

Confirm TV weight and VESA hole pattern before installation, and use proper wall fixings appropriate for the wall material. Two people are recommended for safe lifting and alignment. Periodically check fittings and connections to maintain stable mounting and optimal viewing position.
