Supporto Vogel's PFS 3204

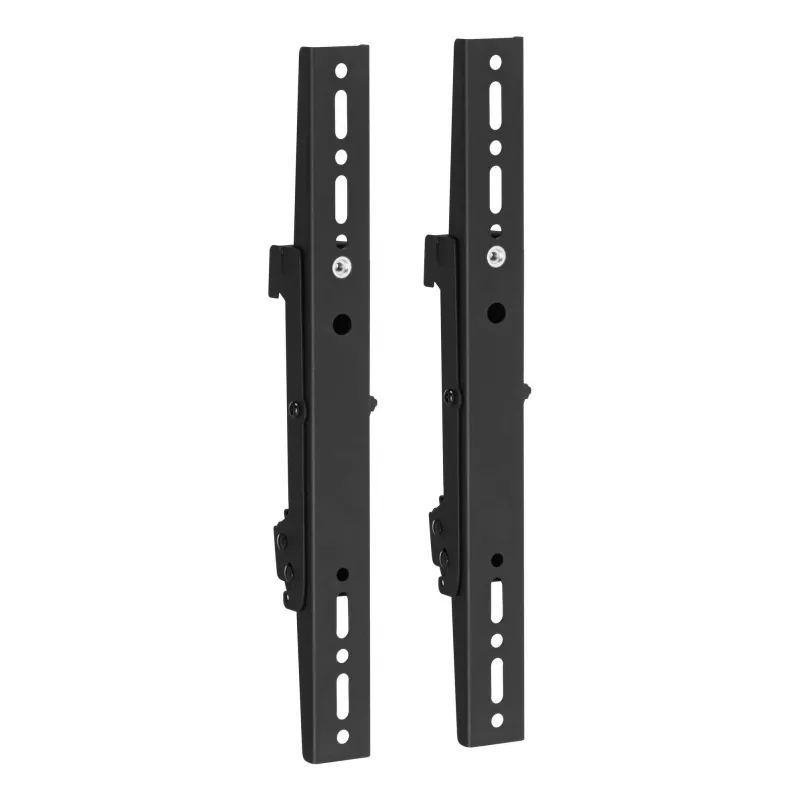

The PFS 3204 Interface display strips are part of Vogel's modular Connect-it system, allowing creation of custom display mounting solutions. The strips are intended to be combined with PFB 34xx Connect-it interface bars to form a complete mounting interface and are designed for displays with a maximum vertical fitment of 400 mm and a maximum load of 160 kg. Included features are tilt leveling and unlock straps for wall mounting.

Advantages

These interface strips provide a modular approach to mounting, enabling flexible configurations when used with PFB 34xx interface bars. The design supports secure wall mounting with unlock straps and offers tilt leveling to adjust the display position precisely. Compatibility with the Connect-it system simplifies integration with other Vogel's mounting components.

Suitable for

• Custom display mounting solutions using the Vogel's Connect-it system
• Wall mounting of large displays with vertical fitment up to 400 mm
• Installations requiring tilt adjustment and secure unlocking straps
• Professional AV installations where PFB 34xx interface bars are used

Key specifications

• Brand: Vogel's
• Model: PFS 3204
• Compatibility: Designed to be used with PFB 34xx Connect-it interface bars
• Maximum load capacity: 160 kg
• Maximum vertical fitment: 400 mm
• Features: Tilt leveling; unlock straps for wall mounting
• MPN: 73202191
• EAN: 8712285329302

How to use

Combine the PFS 3204 strips with the appropriate PFB 34xx Connect-it interface bars to create the required mounting interface for your display. Attach the assembled interface to a suitable wall structure following Vogel's installation guidelines and local building codes. Mount the display onto the interface, use the tilt leveling feature to achieve the desired angle, and secure the display with the unlock straps provided for wall installations.

Recommendations

Ensure the wall structure and fasteners used can safely support the combined weight of the display and mounting system up to the stated 160 kg capacity. Verify compatibility with the specific PFB 34xx interface bars before installation and follow Vogel's official installation instructions.
