Switch di rete gestito PLANET GS-4210-24UP4X L2/L4 24 porte PoE

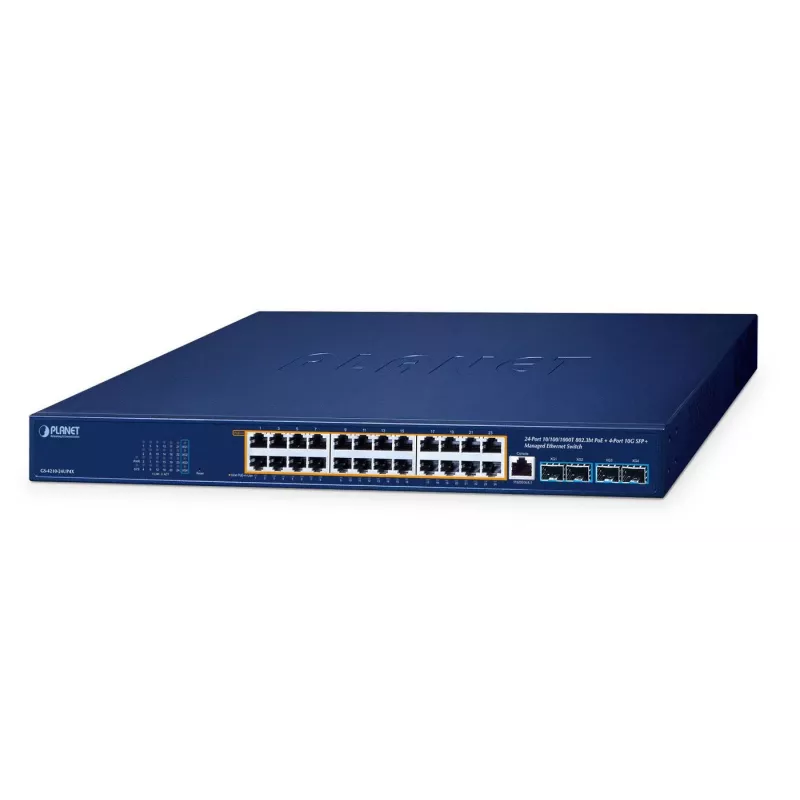

PLANET GS-4210-24UP4X is a managed L2/L4 Gigabit switch with 24 10/100/1000BASE-T PoE++ ports and 4 10G SFP fiber ports, providing a total PoE budget of 720 W. The switch supports IEEE 802.3bt (PoE++) delivering up to 95 W per port over four-pair Cat5e/6 cabling, IPv4/IPv6 dual-stack management, and a 128 Gbit/s switching capacity with a 16,000-entry MAC address table. Designed for business and enterprise networks, it combines advanced PoE power management, L2/L4 switching features and security functions for reliable network operation.

Advantages

The GS-4210-24UP4X offers high PoE power density with 95 W 802.3bt per port and flexible multi-mode PoE output (95 W, 36 W or 4-pair legacy) to support a wide range of powered devices. It includes cybersecurity features such as SSHv2 and TLSv1.2, redundant ring and G.8032 ERPS for fast recovery, smart fan design for quiet operation, and SFP-DDM for optical transceiver diagnostics. The switch supports robust Layer 2 functions, QoS and Layer 2–4 ACLs, plus DHCP Snooping, IP Source Guard and Dynamic ARP Inspection for enhanced network protection.

Suitable for

• PoE PTZ cameras and surveillance systems
• Wireless access point deployments and VoIP networks
• All-in-one touch PCs, POS kiosks and digital signage
• Enterprise aggregation and backbone uplinks via 10G SFP

Key specifications

• Ports: 24 x 10/100/1000BASE-T PoE++ ports, 4 x 10G SFP slots
• PoE standard: IEEE 802.3bt (PoE++), up to 95 W per port; 720 W total budget
• Switching capacity: 128 Gbit/s; MAC table: 16,000 entries
• Management: IPv4/IPv6 dual stack, Web, CLI, SNMP
• Layer 2/4 features: 802.1Q, Q-in-Q, MSTP, LACP, LLDP, QoS, ACLs
• Security: SSHv2, TLSv1.2, 802.1x, DHCP Snooping, IP Source Guard, DAI
• Special PoE functions: PD Alive Check, Scheduled Power Recycling, PoE Schedule, PoE Usage Monitoring, PoE Extension
• Weight and color: approx. 4.358 kg, blue

How to use

Install the switch in a standard 19-inch rack or on a flat surface and connect powered devices using Cat5e/6 cables to the PoE++ RJ-45 ports. Use SFP transceivers for fiber uplinks to backbone switches or monitoring centers. Access the management interface via the built-in web GUI, CLI (console/Telnet) or SNMP to configure VLANs, PoE schedules, PD Alive Check and security policies. For long-distance PoE extension, enable the Extend mode per port to supply up to 50 W at 10 Mbps over distances up to 250 m for compatible PoE+ devices.

Recommendations

Plan PoE budget allocation before deployment and use the PoE Usage Monitoring and scheduling functions to prevent power overloads. Enable SSHv2/TLSv1.2 and IP protection features (DHCP Snooping, IP Source Guard, DAI) for secure management. Use redundant ring or MSTP for critical links and select appropriate SFP modules (multi-mode or single-mode) based on link distance requirements.
