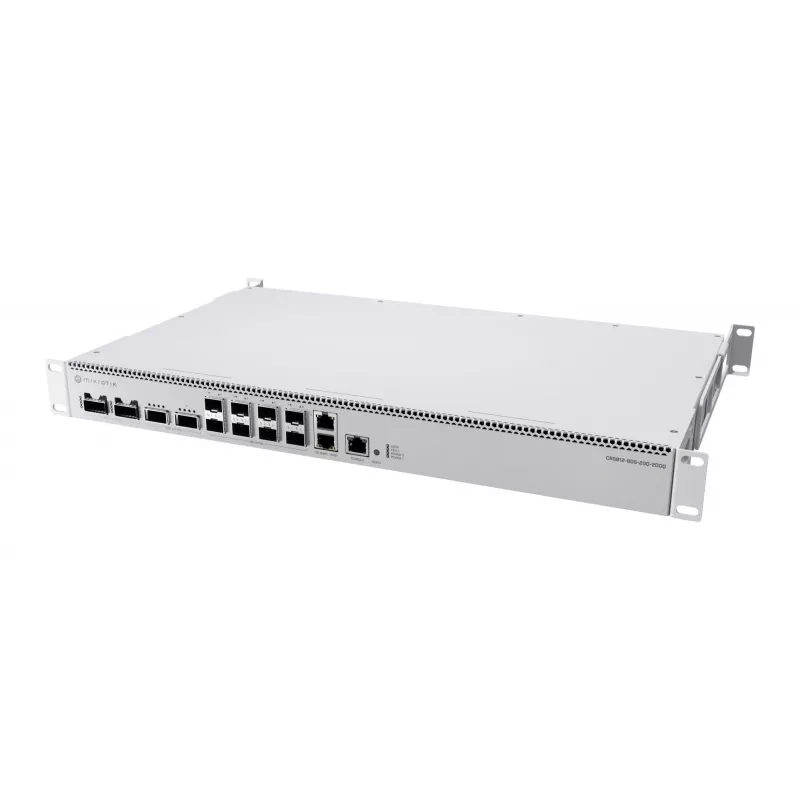

MikroTik CRS812-8DS-2DQ-2DDQ-RM (CRS812 DDQ) Cloud Router Switch, 400G

The MikroTik CRS812-8DS-2DQ-2DDQ-RM (CRS812 DDQ) is a 400G cloud router switch designed for modern data centers and high-speed networks. It combines multiple port speeds from 1G to 400G in a compact 1U rackmount chassis.

Key features

• High-performance quad-core ARM AL52400 CPU at 2 GHz
• 4 GB DDR4 RAM and 512 MB NAND storage
• Supports 400G Ethernet for high data transfer requirements

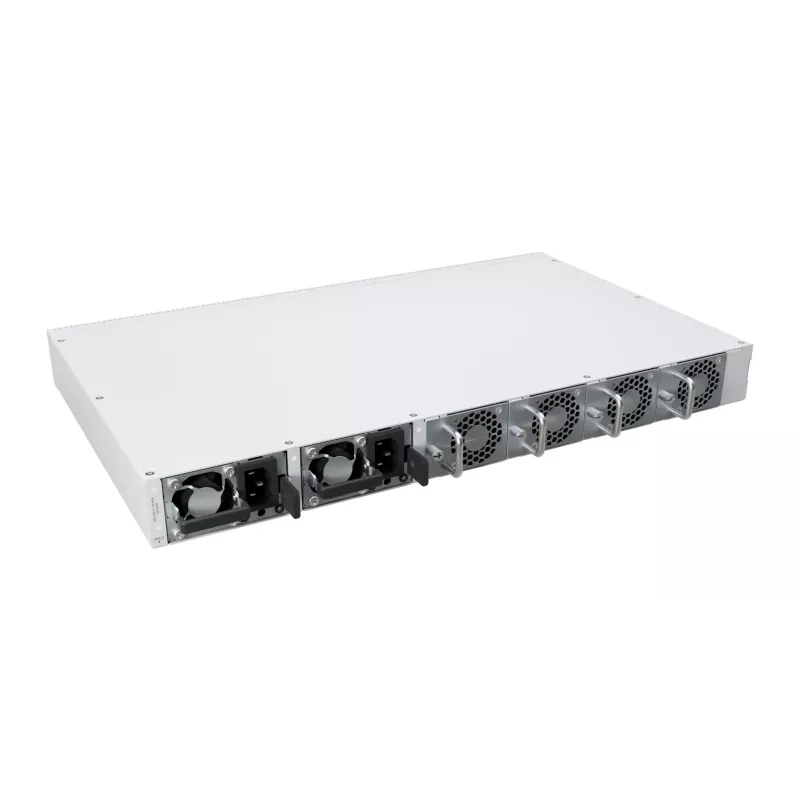

• Dual-redundant hot-swap power supplies and hot-swap cooling fans
• RouterOS v7 with License level 6
• Breakout mode support on QSFP56 and QSFP-DD ports

Specifications

• Architecture: 64-bit ARM
• CPU: Quad-core AL52400
• CPU nominal frequency: 2000 MHz
• Switch chip model: Marvell 98DX7335
• Operating system: RouterOS v7
• RouterOS license: Level 6
• RAM: 4 GB DDR4
• Storage: 512 MB NAND
• MTBF: Approximately 200,000 hours at 25°C
• OSI layer: L3 dynamic
• IP protection: IP20
• Ethernet ports 1G/2.5G/5G/10G: 2 (supports 10M/100M/1G/10G)
• SFP56 ports: 8 (up to 50G)
• QSFP56 ports: 2 (up to 200G)
• QSFP56-DD ports: 2 (up to 400G)
• PoE support: No
• Number of AC inputs: 2
• AC input range: 100-240 V
• Number of power supply slots: 2
• Power supply: Internal (dual-redundant)
• Frequency: 50-60 Hz
• Max power consumption: 134 W
• Max power consumption without attachments: 81 W
• Cooling: 4 hot-swap fans
• Serial console port: 1x RJ45
• CPU temperature monitor: Yes
• PCB temperature monitor: Yes
• Voltage monitor: Yes
• Operating temperature: -10 to +50 °C
• Color: White
• Dimensions: 443 x 44 x 268 mm
• Mounting: 1U rackmount
