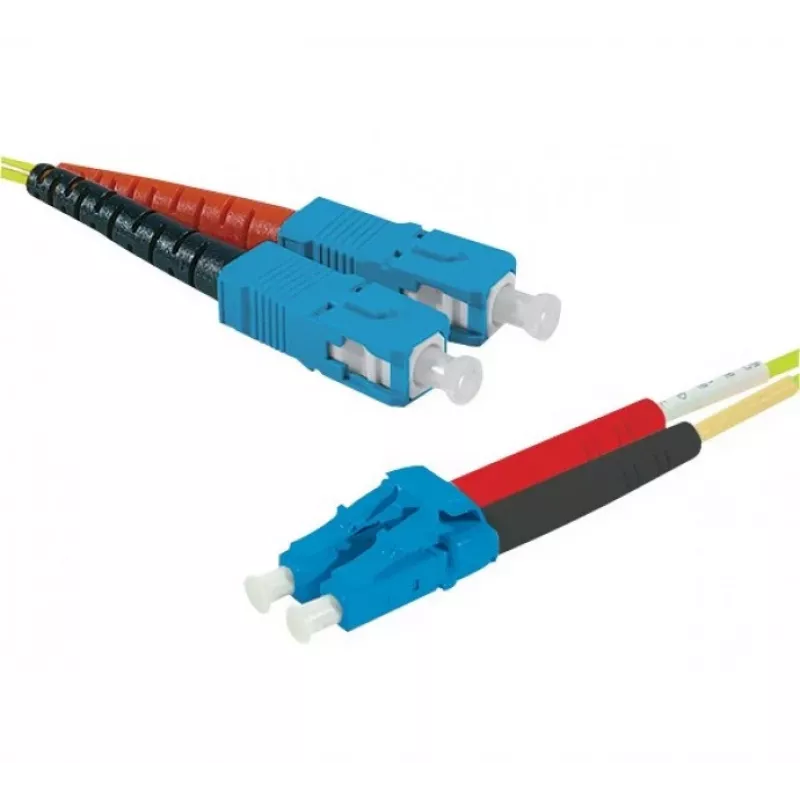

EXERTIS CONNECT cavo patch in fibra ottica Eco OS2 SC Duplex su LC Duplex 3m giallo 392863

Connect network devices in data centres and telecommunication rooms with this 3-metre single-mode fibre optic patch cable. It features SC Duplex to LC Duplex connectors with UPC polish, ensuring low insertion loss and reliable performance for high-speed optical links.

Key specifications

• Cable length: 3 m
• Fibre type: OS2 single-mode, 9/125 µm
• Connectors: SC Duplex to LC Duplex, UPC polish
• Jacket material: LSZH, yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB

Why choose it

This patch cable meets TIA/EIA-568-C.3 and IEC 60794-2 standards, making it suitable for structured cabling in enterprise networks. The LSZH jacket reduces toxic smoke in case of fire, and the yellow colour identifies it as single-mode.

Ideal use cases

• Data centre interconnects
• Telecommunications rooms
• FTTx applications
• LAN backbone connections

Good to know

Operating temperature range: -20°C to +70°C. Attenuation: ≤ 0.35 dB/km at 1310 nm and ≤ 0.25 dB/km at 1550 nm.
