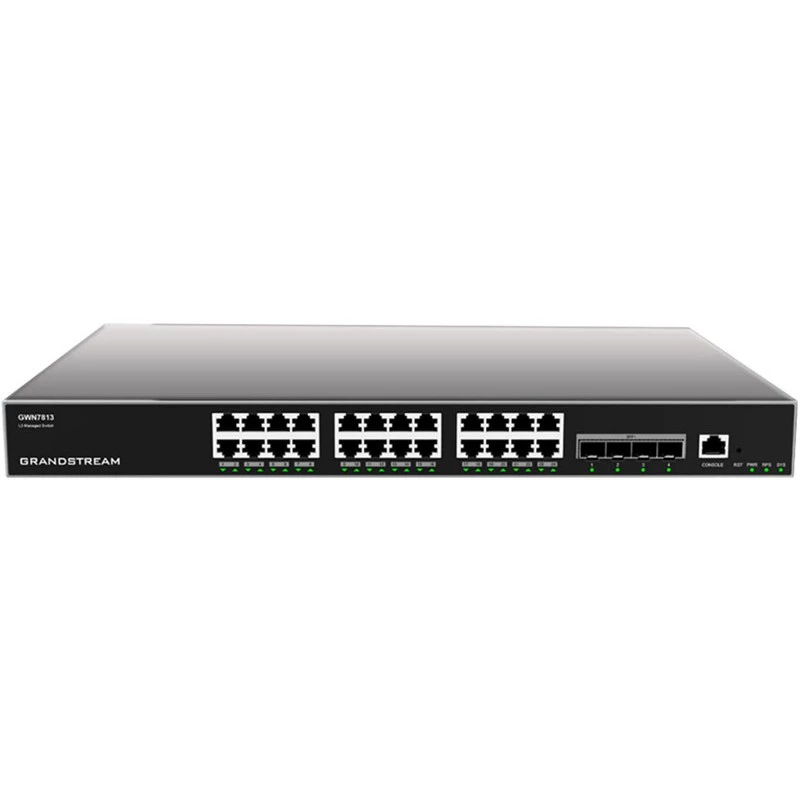

Switch gestito Grandstream GWN7813

Switch gestito Grandstream GWN7813
Switch gestito Grandstream GWN7813
267,88 €
PDF
PDF
Stock 3 Codice 121478 Modello GWN7813 Garanzia 2 anni

Spedizioni e resi

Consegna stimata mercoledì 9 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The Grandstream GWN7813 is a managed Layer 3 Gigabit Ethernet switch with 24 Gigabit RJ-45 ports, a switching capacity of 128 Gbit/s and a MAC address table of 16,000 entries. Rack-mountable and available in a grey finish, the GWN7813 supports a wide set of networking standards to deliver scalable, secure and high-performance connectivity for enterprise networks.

Advantages

The GWN7813 provides Layer 3 routing and advanced switching features in a managed form factor, supporting IEEE 802.1Q VLANs, IEEE 802.1x authentication and link aggregation (IEEE 802.3ad). With 10G uplink support, a large MAC table and 128 Gbit/s switching capacity, it is suited for dense deployments that require reliable throughput and centralized management via embedded controller, GWN.Cloud or on-premise GWN Manager.

Suitable for

  • Enterprise and campus networks requiring managed Layer 3 switching
  • Server rooms and wiring closets with rack-mount installations
  • Environments needing VLAN segmentation and port-based authentication (802.1x)
  • Networks requiring high-capacity uplinks (10G) and link aggregation

Key specifications

  • Ports: 24 x Gigabit Ethernet (10/100/1000) RJ-45
  • Switching capacity: 128 Gbit/s
  • MAC address table: 16,000 entries
  • 10G support: Yes (for uplinks)
  • Managed switch with Layer 3 features
  • Supported standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3ad; IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x
  • Form factor: Rack-mountable; colour: Grey
  • Weight: 2.94 kg

How to use

Install the GWN7813 into a standard 19-inch rack and connect power and network cabling to the Gigabit ports. Configure basic network settings, VLANs, routing and security policies through the device’s web user interface, or opt to manage the switch with the built-in embedded controller. Alternatively, register the device with GWN.Cloud for cloud-based provisioning and monitoring, or deploy GWN Manager on-premise for centralized administration of multiple Grandstream networking devices.

Recommendations

For best results, place the switch in a ventilated rack environment and use quality Cat5e/Cat6 or higher cabling for Gigabit and 10G connections. Use VLANs and 802.1x authentication to segment traffic and improve network security, and monitor performance with GWN.Cloud or GWN Manager to detect and address issues promptly.
Punti salienti
  • Enterprise and campus networks requiring managed Layer 3 switching
  • Server rooms and wiring closets with rack-mount installations
  • Environments needing VLAN segmentation and port-based authentication (802.1x)
  • Networks requiring high-capacity uplinks (10G) and link aggregation
  • Ports: 24 x Gigabit Ethernet (10/100/1000) RJ-45
  • Switching capacity: 128 Gbit/s
  • MAC address table: 16,000 entries
  • 10G support: Yes (for uplinks)
  • Managed switch with Layer 3 features
  • Supported standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3ad; IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x
  • Form factor: Rack-mountable; colour: Grey
  • Weight: 2.94 kg

Specifiche

Specifiche
Aggregazione di link
Sì
Algoritmi di scheduling delle code
Weighted Round Robin (WRR), WRR+SP, WFQ+SP, WFQ, SP
Algoritmi di sicurezza
802.1x RADIUS, SNMP
Alimentazione
AC
Alimentazione via Ethernet (PoE)
No
Altezza
44 mm
Capacità di commutazione
128 Gbit/s
Cavi inclusi
AC
Colore del prodotto
Grigio
Consumo energetico (tipico)
60 W
Corrente in ingresso
5
Duplicazione delle porte
Sì
Filtraggio indirizzi MAC
Sì
Filtro/protezione BPDU
Sì
Funzionalità VLAN
VLAN taggata
Funzioni DHCP
DHCP snooping, server DHCP, DHCP relay, DHCP Option 82
Gestito via cloud
Sì
Guida rapida
Sì
IGMP snooping
Sì
Indicatori LED
Y
Ispezione ARP
Sì
Kit di montaggio a rack
Sì
Larghezza
200 mm
Layer dello switch
L3
Limitazione della velocità
Sì
Lista di controllo degli accessi (ACL)
Sì
Memoria buffer dei pacchetti
12 MB
Memorizzazione e inoltro
Sì
Modellamento del traffico
Sì
Montaggio su rack
Sì
Numero di porte Ethernet RJ-45 di commutazione di base
24
Numero di slot per moduli SFP+
4
Numero di VLAN
4000
Peso
2.94 kg
Profondità
440 mm
Protezione con password
Sì
Protezione dai loop
Sì
Protocollo di registrazione VLAN GARP (GVRP)
Sì
Protocollo Spanning Tree
Sì
Route statica
Sì
Standard di rete
IEEE 802.3af, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D
Supporto 10G
Sì
Supporto alimentatore ridondante (RPS)
Sì
Supporto Quality of Service (QoS)
Sì
Supporto VLAN
Sì
Tabella indirizzi MAC
16000 voci
Temperatura di esercizio (T-T)
0 - 45
Temperatura di stoccaggio (T-T)
-10 - 60
Tensione di ingresso
12
Throughput
64 Gbit/s
Tipo di autenticazione
TACACS+, RADIUS, AAA
Tipo di porte Ethernet RJ-45 di commutazione di base
Gigabit Ethernet (10/100/1000)
Tipo di switch
Gestito
Umidità relativa di esercizio (H-H)
10 - 90
Umidità relativa di stoccaggio (H-H)
5 - 95
Velocità di inoltro
95,232 Mpps
Voci IPv4 Access Control List (ACL)
2000
Voci IPv6 Access Control List (ACL)
2000

Brochure

Apri documento
