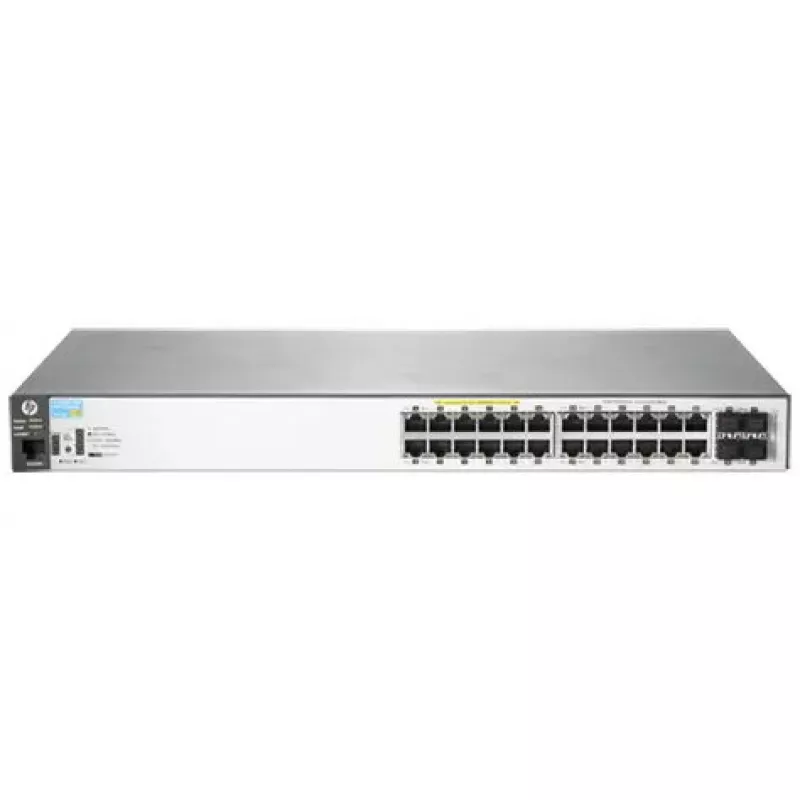

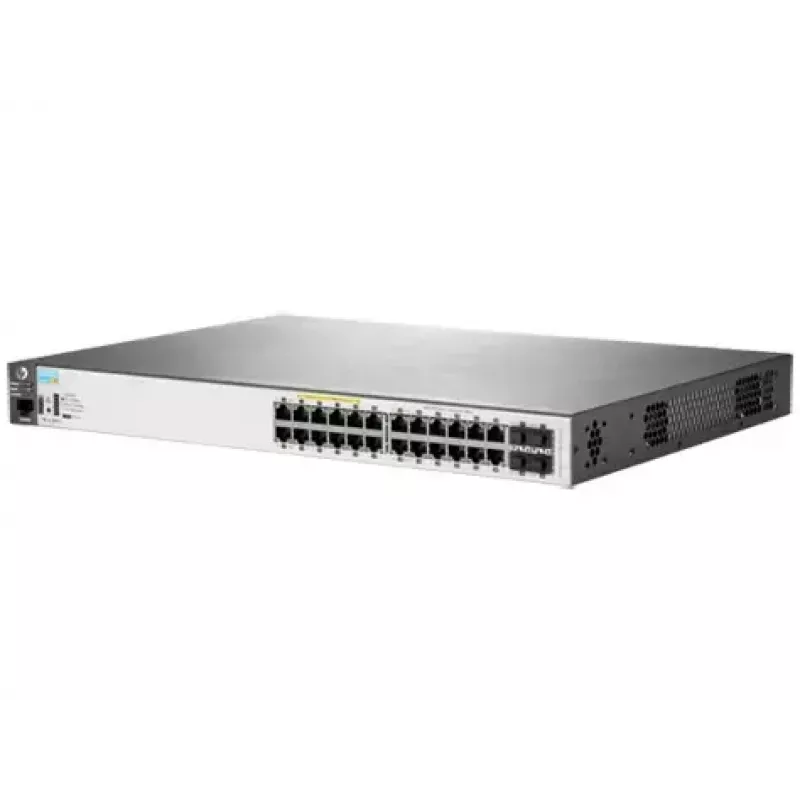

Switch HPE Aruba 2530 24G PoE+ managed L2 Gigabit Ethernet

The Aruba 2530 Switch Series provides secure, reliable, and easy-to-manage wired access for enterprise edge, branch office, and SMB deployments. These fully managed Layer 2 switches offer optional PoE+, 10GbE uplinks, traffic prioritization, sFlow, IPv6 host support, and Energy Efficient Ethernet to reduce power consumption. The series integrates with Aruba ClearPass Policy Manager, AirWave, and cloud-based Aruba Central to deliver a consistent wired/wireless user experience and simplified management.

Advantages

Aruba 2530 switches combine full Layer 2 feature sets with optional PoE+ and 10GbE uplinks in compact 8-, 24- and 48-port models, allowing right-sized deployments. Fanless and variable-speed fan models plus Energy Efficient Ethernet and port low power modes help lower operational costs. Built-in access security, QoS and DOS protections support policy-driven network access and reliable traffic handling. Integration with ClearPass, AirWave and Aruba Central enables unified policy, monitoring and zero-touch provisioning for easier ongoing management.

Key specifications

• Layer: Fully managed Layer 2 switch functionality
• Port options: 8-, 24-, and 48-port models; Gigabit or Fast Ethernet choices
• PoE: Optional PoE+ support on selected models
• Uplinks: Optional 10GbE uplink ports
• Energy: Energy Efficient Ethernet (IEEE 802.3az), fanless models, LED disable and port low power mode
• Security: Local MAC, 802.1X, MAC+Web authentication, ACLs, DHCP/ARP protections, Dynamic IP lockdown
• QoS: IEEE 802.1p priority with eight priority levels, WDRR and strict priority queuing
• Management: Web GUI, CLI, SNMP, console and micro USB ports, Zero Touch Provisioning (ZTP)
• Monitoring: sFlow, RMON, AirWave support, Aruba Central cloud management
• Mounting: Wall, table and rack mounting options

How to use

Install the Aruba 2530 model that matches your port count and PoE requirements, mount it on a rack, wall or table, and connect uplinks and endpoints. Choose a management method (Web GUI, CLI or SNMP) and perform initial configuration; use Zero Touch Provisioning for automated setup when available. Configure VLANs, authentication (Local MAC, 802.1X or MAC+Web), QoS policies and ACLs according to your network design. If using Aruba access points, connect switches to automatically apply PoE priority and VLAN settings for consistent wired/wireless behavior.

Recommendations

For branch and SMB deployments, select the model with the appropriate port count and PoE budget; enable Energy Efficient Ethernet and fanless models where quiet operation and power savings are priorities. Integrate with ClearPass or Aruba Central to maintain unified policies and simplify monitoring and provisioning.
