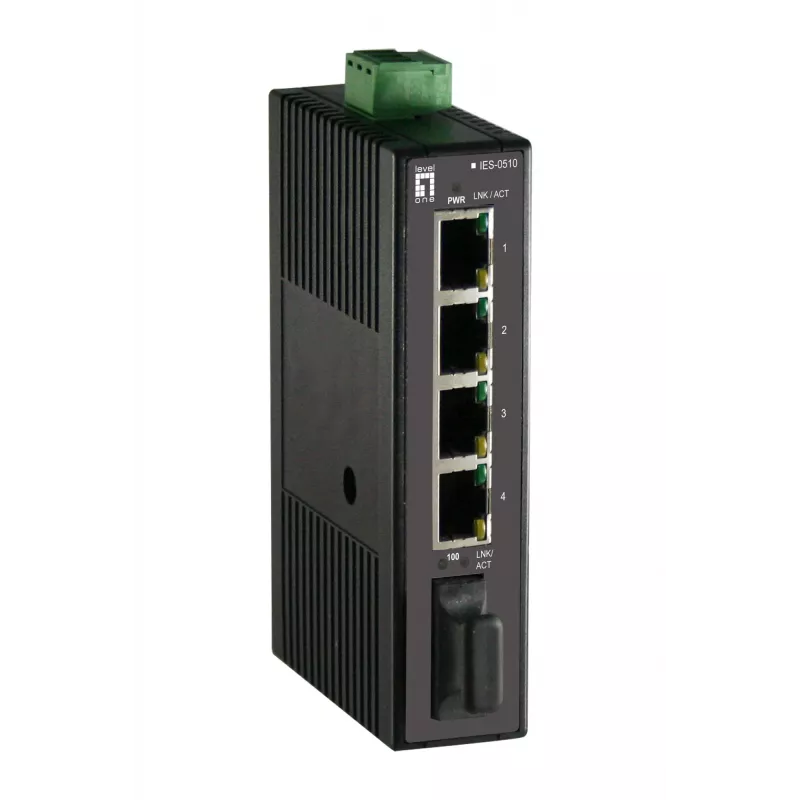

Switch industriale LevelOne 5 porte Fast Ethernet, guida DIN, 1 x fibra ottica multimodale SC, da -20 °C a 70 °C

Switch industriale LevelOne 5 porte Fast Ethernet, guida DIN, 1 x fibra ottica multimodale SC, da -20 °C a 70 °C
Switch industriale LevelOne 5 porte Fast Ethernet, guida DIN, 1 x fibra ottica multimodale SC, da -20 °C a 70 °C
232,40 €
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provid... Leggi di più
Stock 10 Codice 111270 Marca LEVELONE Modello IES-0510 Garanzia 2 anni
CategoriaSwitch di rete

Spedizioni e resi

Consegna stimata giovedì 29 ottobre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.

Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Punti salienti
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • 10BASE-T, 100BASE-TX
  • MAC address table: 2048 entries
Specifiche
Altezza
110 mm
Altezza confezione
221 mm
Auto MDI/MDI-X
Yes
Certificazione
ISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed
Codice Sistema Armonizzato (HS)
85176990
Colore del prodotto
Black
Connettore in fibra ottica
SC
Consumo energetico (max.)
4.3 W
Full duplex
Yes
Grado di protezione (IP)
IP30
Guida rapida
Yes
Indicatori LED
Activity, Link, Speed
Larghezza
26 mm
Larghezza confezione
180 mm
Materiale della scocca
Plastic
Memoria buffer dei pacchetti
0.384 MB
Negoziazione automatica
Yes
Numero di moduli SFP installati
0
Numero di moduli SFP+ installati
0
Numero di porte Ethernet RJ-45 di commutazione di base
4
Paese di origine
Taiwan
Peso
200 g
Peso confezione
460 g
Power over Ethernet (PoE)
No
Profondità
70 mm
Profondità confezione
79 mm
Sicurezza
UL60950-1
Standard di rete
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Store-and-forward
Yes
Supporto Quality of Service (QoS)
Yes
Tabella indirizzi MAC
2048 entries
Tecnologia di cablaggio Ethernet in fibra
100BASE-FX
Tecnologia di cablaggio Ethernet in rame
10BASE-T, 100BASE-TX
Temperatura di esercizio (T-T)
-10 - 60 °C
Temperatura di stoccaggio (T-T)
-25 - 85 °C
Tempo medio tra i guasti (MTBF)
1071085 h
Tensione di ingresso
12 - 48 V
Tipo di fibra
Multi-mode
Tipo di imballaggio
Box
Tipo di porte Ethernet RJ-45 di commutazione di base
Fast Ethernet (10/100)
Tipo di switch
Unmanaged
Umidità relativa di esercizio (H-H)
5 - 95%
Velocità di inoltro pacchetti (10 Mbps)
14880 pps
Velocità di inoltro pacchetti (100 Mbps)
148810 pps

Brochure

Apri documento
