Switch KVM ACT DisplayPort 4 porte 4K@60Hz

The AC7934 4-port DisplayPort KVM switch controls four computers while using a single DisplayPort monitor, single USB keyboard and mouse. The DisplayPort output supports a monitor with a resolution up to 4K@60Hz. The AC7934 lets you switch between computers using the buttons on the switch itself, the IR remote control, keyboard hotkeys, a mouse, or RS-232 commands. The AC7934 has a solid metal housing and comes with all needed cabling.

Control four computers with a single DisplayPort monitor, keyboard and mouse
Simplify your workspace by connecting four computers to the AC7934 via DisplayPort. Connect a single DisplayPort monitor and a keyboard and mouse set to the switch and control all host devices with minimal setup.

Supports up to 4K @ 60Hz
The AC7934 DisplayPort KVM switch supports 4K resolution at 60Hz with 4:4:4 12 bit color. The KVM switch complies with DisplayPort 1.4a and HDCP 2.2 standards.

Easy switching between computers

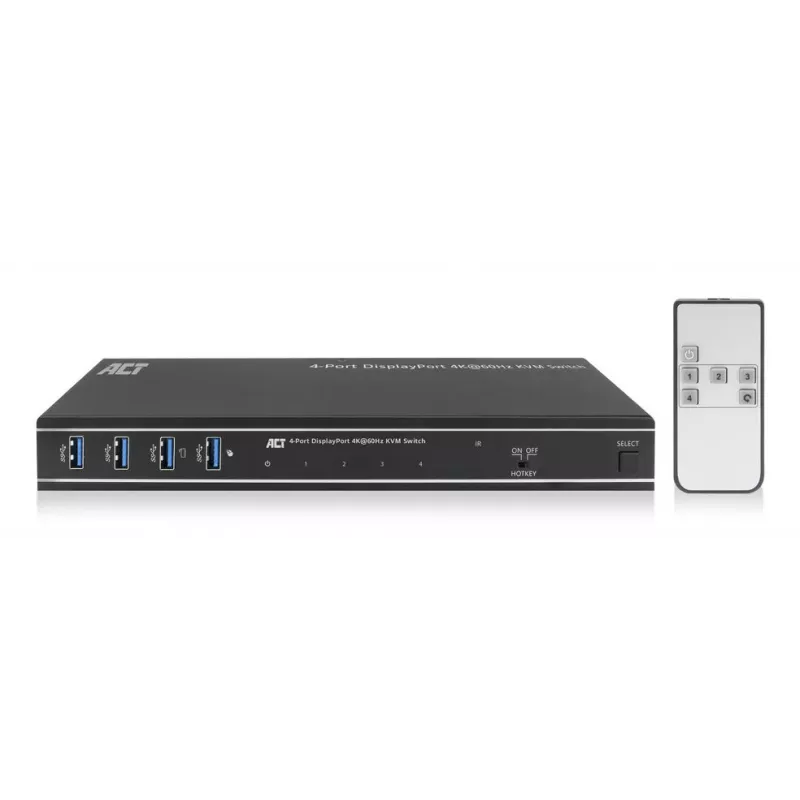

Switching between four connected computers is easy with the dedicated button on the AC7934 KVM switch. Or use IR control, a mouse, keyboard shortcuts or RS-232 commands.

Supports MST daisy chaining
The AC7934 supports both SST (Single Stream Transport) and MST (Multi Stream Transport) via daisy chaining. Connect additional monitors via DisplayPort MST daisy chaining to extend your desktop across multiple screens (depending on total bandwidth and source capabilities).

Dual-Mode DisplayPort DP++ support
Dual-Mode DisplayPort (DP++) ensures compatibility with passive HDMI and DVI adapters.

Additional features

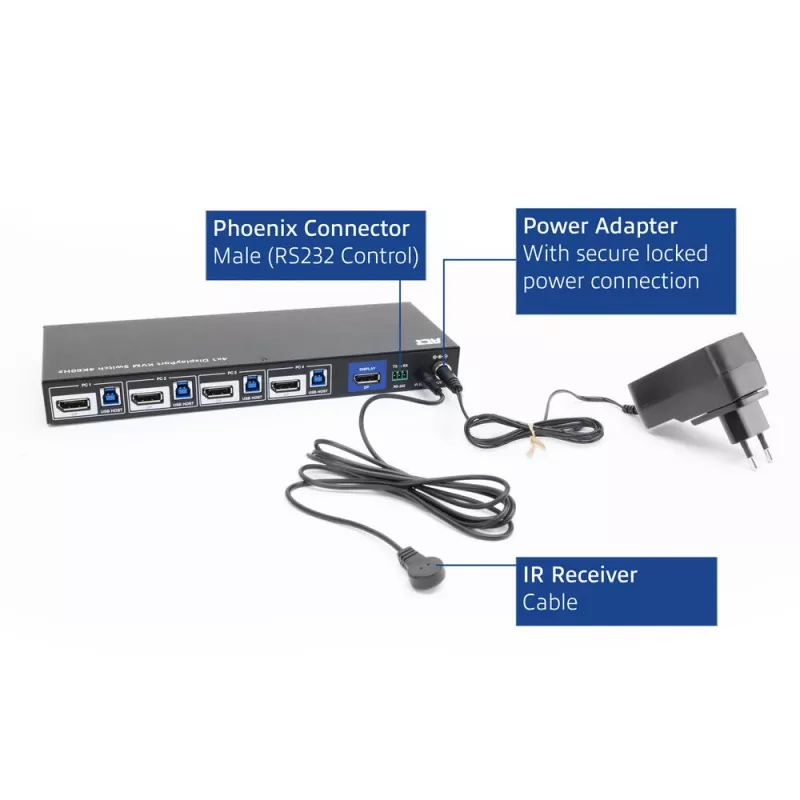

The AC7934 includes four USB 3.2 Gen1 (USB 3.0) 5Gbps ports for sharing peripherals, such as a keyboard, mouse, printer and more. The switch includes 4x DisplayPort cables, 4x USB-B cables, remote control, IR receiver, RS-232 connector and mounting brackets with screws.

Prevent accidental power cord disconnection
The power connection on the KVM switch is secured with a screw lock to prevent accidental disconnection.

User scenarios
Government offices: Control sensitive systems that are isolated from the network.
Datacenters and server rooms: Troubleshoot, update and maintain servers.
Home office: switch easily between workstations with only one monitor, mouse, keyboard setup.
Corporate: IT professionals can manage multiple work PCs, servers or virtual machines.
Control rooms, labs and technical facilities: Ideal for critical environments where operators need access to multiple PCs.

ACT 4-Port DisplayPort 4K@60Hz KVM switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 12 V, Input current: 1 A. Cables included: IR, DisplayPort, USB Type-A to USB Type-B

How to use

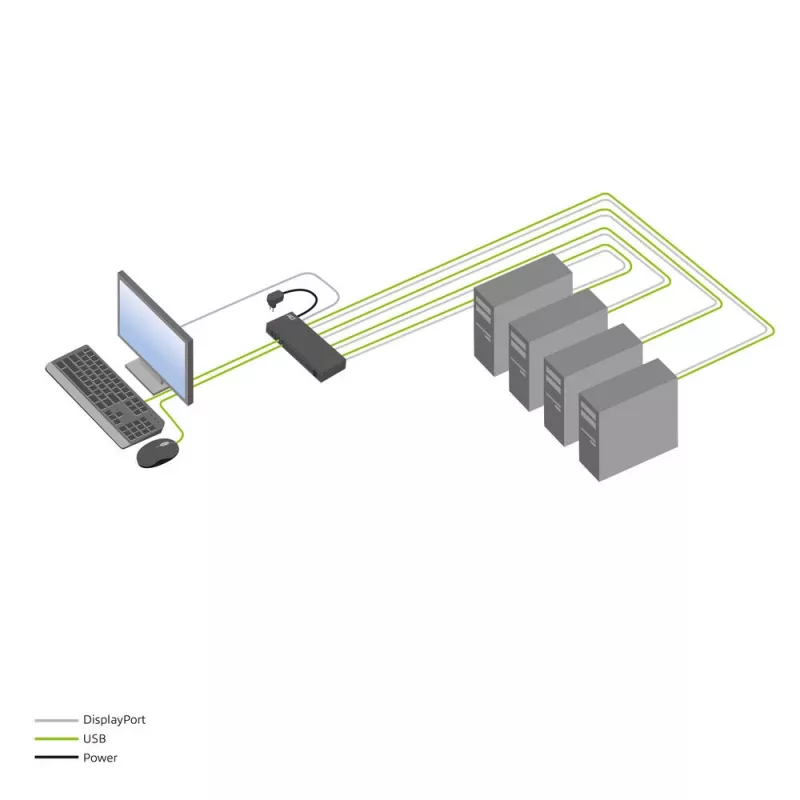

Connect up to four computers to the KVM switch using the supplied DisplayPort and USB-B cables. Attach a single DisplayPort monitor and a USB keyboard and mouse to the switch’s console ports. Apply power using the included DC 12 V adapter and secure the power connector with the screw lock. Switch between connected hosts using the front-panel buttons, IR remote, keyboard hotkeys, mouse gestures or RS-232 commands as required. For multi-monitor setups, use DisplayPort MST daisy-chaining on supported sources and monitors, observing the total available bandwidth.

Recommendations

For reliable 4K@60Hz performance, use high-quality DisplayPort cables, ensure source graphics drivers are up to date, and verify host DisplayPort bandwidth when planning MST daisy-chain multi-monitor layouts.
