Switch KVM Trendnet TK-240DP nero

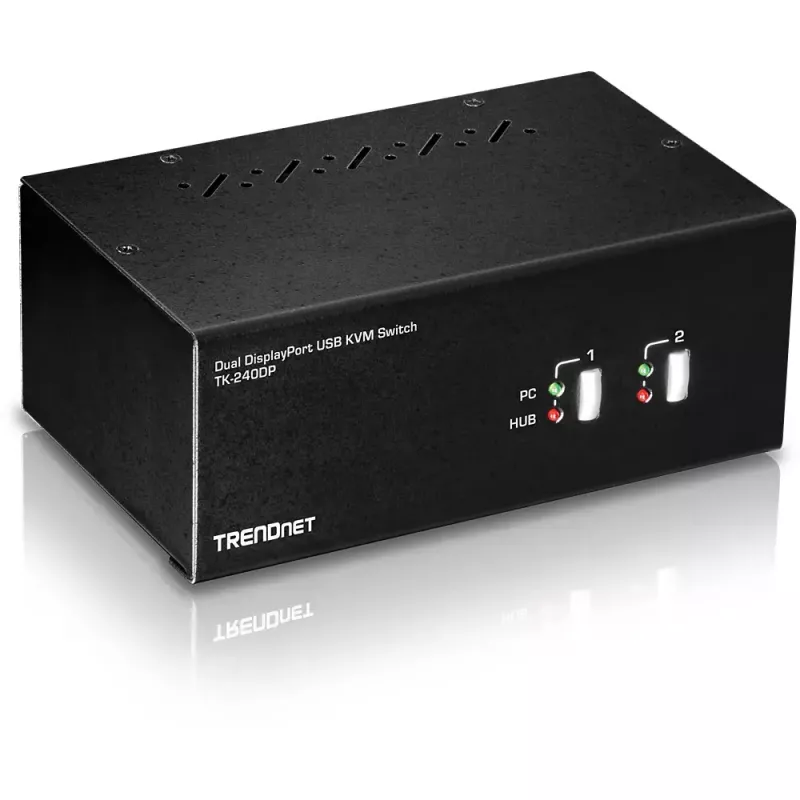

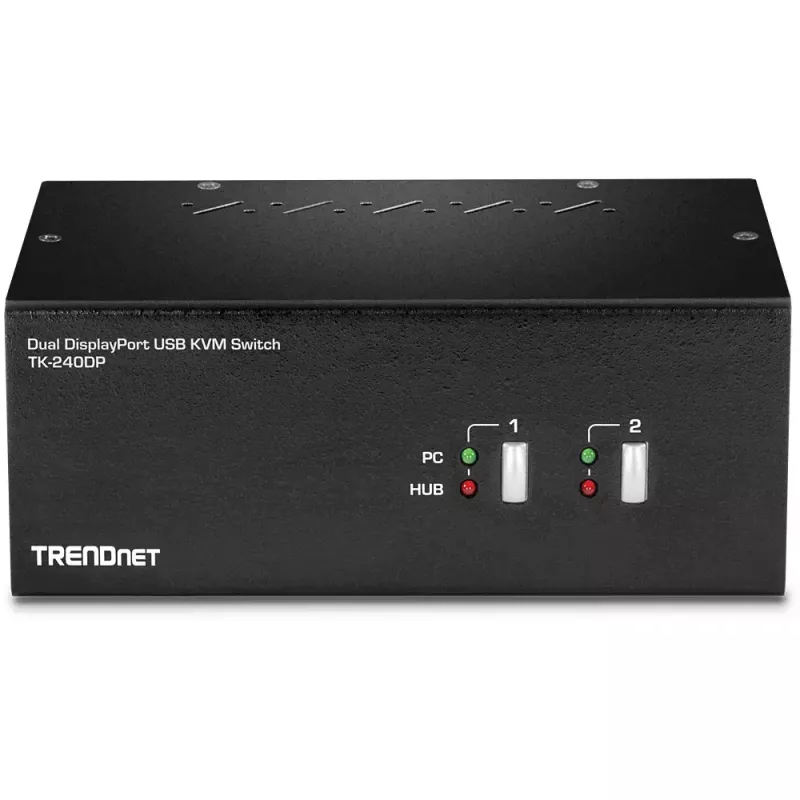

The TRENDnet TK-240DP 2-Port Dual Monitor DisplayPort KVM switch lets you control two computers using a single keyboard, mouse and dual-monitor setup. It supports DisplayPort video output up to 3840 x 2160 (4K UHD) and includes USB connections for keyboard and mouse. The unit is compact and powered by AC (100–240V), and features a built-in two-port USB hub to share storage devices or printers between connected systems.

Advantages

The TK-240DP supports dual-monitor DisplayPort output with up to 4K UHD resolution, requires no driver installation, and provides USB connectivity for both keyboard and mouse. Its integrated two-port USB hub enables peripheral sharing without additional hardware. The device is compact and certified for safety and electromagnetic compliance.

Suitable for

• Workstations requiring control of two computers with one console
• Dual-monitor setups using DisplayPort connections
• Environments that need shared USB storage or printers between PCs
• Offices or home offices where space-saving control is needed

Key specifications

• Model: TRENDnet TK-240DP
• Video port type: DisplayPort
• Maximum resolution: 3840 x 2160 (4K UHD)
• Number of computers controlled: 2
• Keyboard / Mouse connection: USB
• USB hub: 2-port USB hub for sharing devices
• Power input: AC 100–240 V
• Dimensions (W×D×H): 163 × 100 × 66 mm
• Weight: 0.75 kg
• Product colour: Black
• Certifications: FCC, CE

How to use

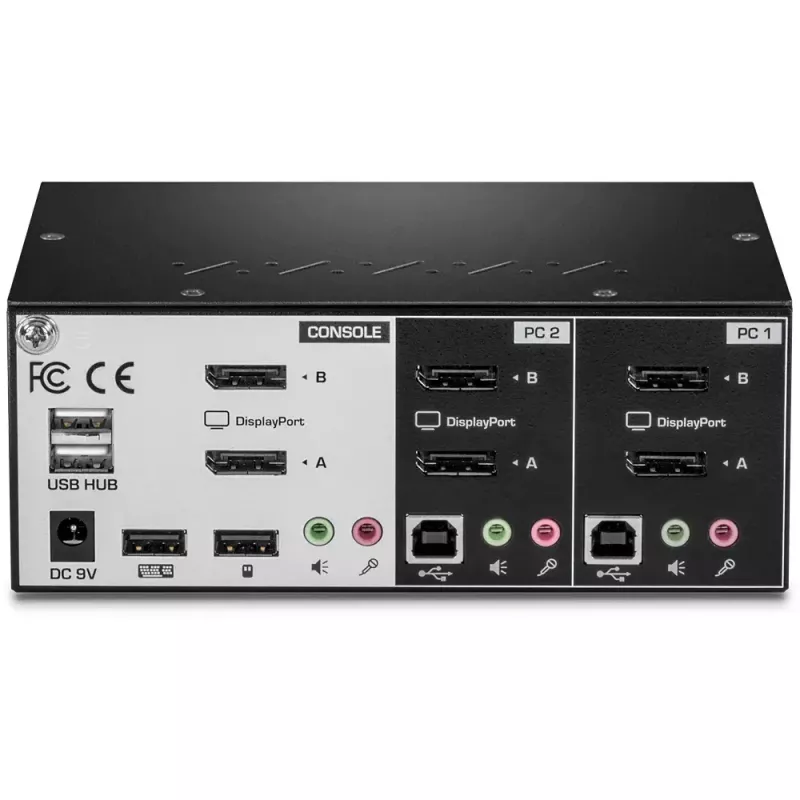

Connect each computer to the TK-240DP using DisplayPort cables for video and USB cables for keyboard and mouse control. Attach your keyboard, mouse and any USB peripherals to the console ports and integrated USB hub. Power the unit from an AC outlet (100–240 V). Switch control between the two connected computers using the switch method provided with the device (hardware or keyboard switch as specified in the product manual).

Recommendations

For best results use DisplayPort-certified cables rated for 4K at 60 Hz and ensure connected computers support the target resolution. Place the KVM switch on a stable surface with adequate ventilation and follow the user manual for correct cabling and switching procedures.
