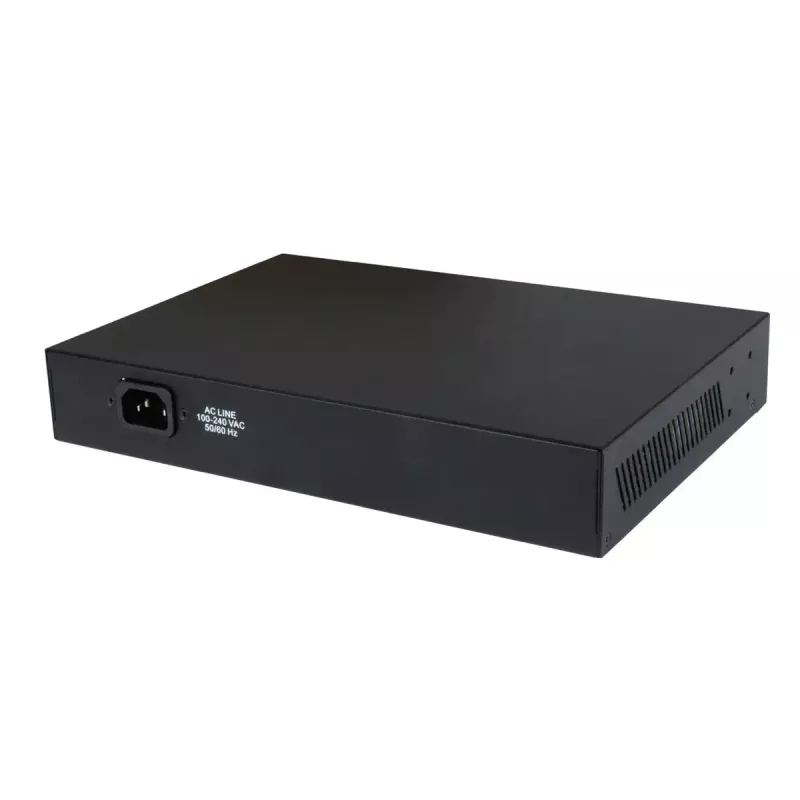

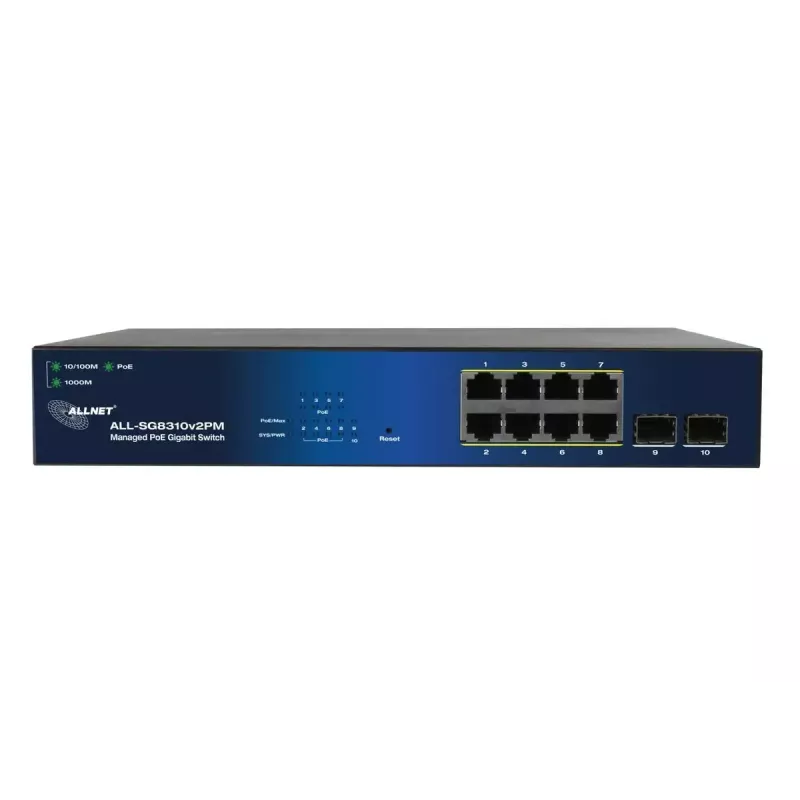

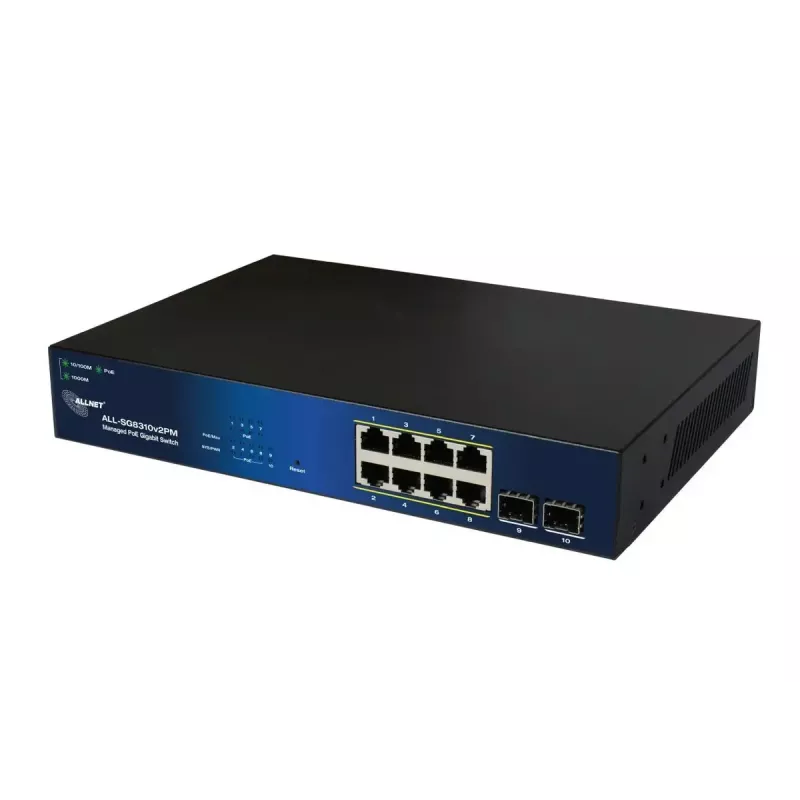

Switch managed ALLNET 209904 Gigabit Ethernet 8 porte PoE

Managed 8-port Gigabit Ethernet switch with Power over Ethernet (PoE) support and web-based management. The device offers basic switching functions over RJ-45 Ethernet ports and includes an RJ-45 console port for configuration. It supports 10BASE-T, 100BASE-TX and 1000BASE-T speeds and provides a MAC address table capable of storing up to 8000 entries.

Advantages

This switch supports Quality of Service (QoS) and Access Control List (ACL) features to help prioritize traffic and control access. Web-based management allows configuration from a browser without special software. Stackable design makes it possible to expand port capacity by combining multiple units, while included AC power supply and PoE simplify power delivery to compatible devices.

Key specifications

• Managed web-based management
• Quality of Service (QoS) support
• Number of RJ-45 Ethernet ports: 8
• Console port: RJ-45
• Supported speeds: 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table capacity: 8000 entries
• Access Control List (ACL) support
• Stackable
• AC power supply included
• Power over Ethernet (PoE) supported

How to use

Connect network devices to the RJ-45 Ethernet ports and optionally connect a console cable to the RJ-45 console port for initial setup. Access the web-based management interface via a browser using the switch IP address to configure VLANs, QoS, ACLs and PoE settings. Use stacking procedures in the management interface to join multiple units into a single logical switch if needed. Ensure the AC power supply is connected before enabling PoE to power attached devices.

Recommendations

For stable operation, place the switch in a well-ventilated location, keep firmware up to date, and plan VLAN and QoS settings according to network requirements. Verify PoE budget before connecting multiple powered devices to avoid overload.
