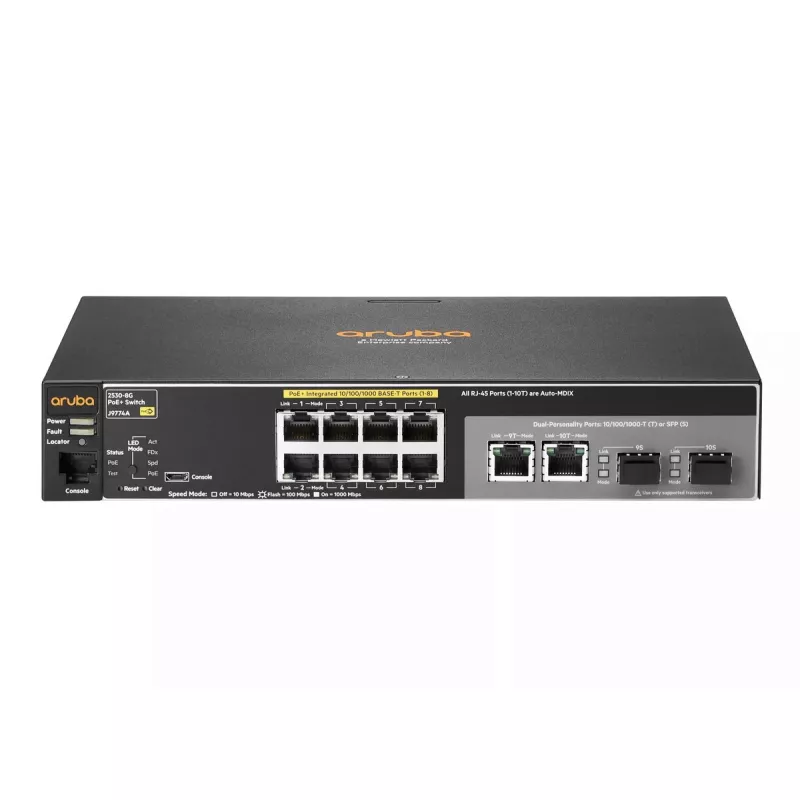

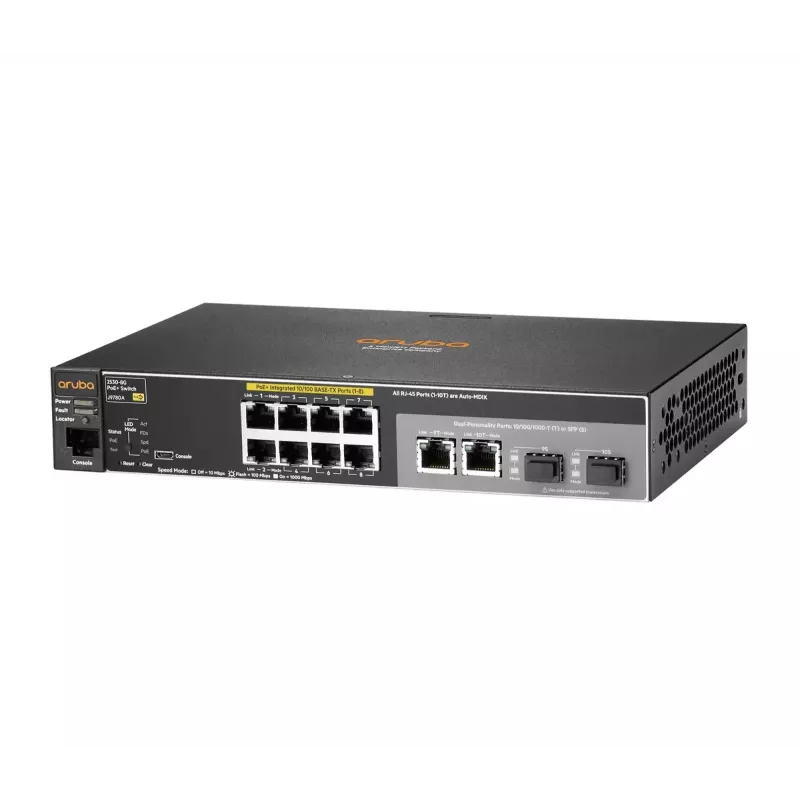

Switch managed HPE Aruba 2530 8G PoE+

The Aruba 2530 Switch Series provides secure, reliable, and easy-to-manage wired connectivity for enterprise edge, branch offices, and SMBs. These fully managed Layer 2 switches offer optional PoE+ and 10GbE uplinks, traffic prioritization, IPv6 host support, and energy-saving features to support unified wired and wireless deployments with Aruba management tools.

Advantages

The 2530 series combines full Layer 2 functionality with flexible port counts (8, 24, 48) and choices of Gigabit or Fast Ethernet, optional PoE+ and 10GbE uplinks. Models include fanless options and Energy Efficient Ethernet to reduce power use, plus the ability to disable LEDs and enable port low-power mode. The switches integrate with Aruba ClearPass, AirWave, and Aruba Central for centralized policy, monitoring and zero-touch provisioning, and they support strong access controls, DoS protections and comprehensive QoS features.

Key specifications

• Layer: Layer 2 switching
• Port options: 8-, 24-, and 48-port models (Gigabit or Fast Ethernet)
• Power over Ethernet: Optional PoE+ support
• Uplinks: Optional 10GbE uplinks
• Management: Web GUI, CLI, SNMP, console and micro USB
• Security: 802.1X, MAC authentication, Web authentication, ACLs, DHCP/DHCPv6 protection, Dynamic ARP protection, Dynamic IP lockdown
• QoS: IEEE 802.1p prioritization, eight priority levels, WDRR and strict priority queuing
• Monitoring: sFlow, RMON, AirWave and Aruba Central support
• Energy features: Fanless models, IEEE 802.3az Energy Efficient Ethernet, LED disable, port low power mode
• Deployment: Wall, table, and rack mounting; Zero Touch Provisioning (ZTP)

How to use

Install the Aruba 2530 in the chosen location using wall, table, or rack mounting. Connect uplink and access ports according to network design and enable PoE+ where required. Configure the switch via the Web GUI, CLI, or SNMP, or deploy configuration centrally using Aruba Central, AirWave, or ClearPass Policy Manager. Apply access policies (802.1X, MAC, web) and QoS profiles as needed, enable DHCP/DHCPv6 protections and ARP/IP lockdown to enhance security, and verify monitoring with sFlow or RMON. For remote sites, use Zero Touch Provisioning to apply standard configuration automatically.

Recommendations

Choose the model (port count and PoE/10GbE options) that matches current access and uplink requirements, enable available energy-saving features for reduced power consumption, and integrate with ClearPass or Aruba Central for consistent policy enforcement and simplified management.
