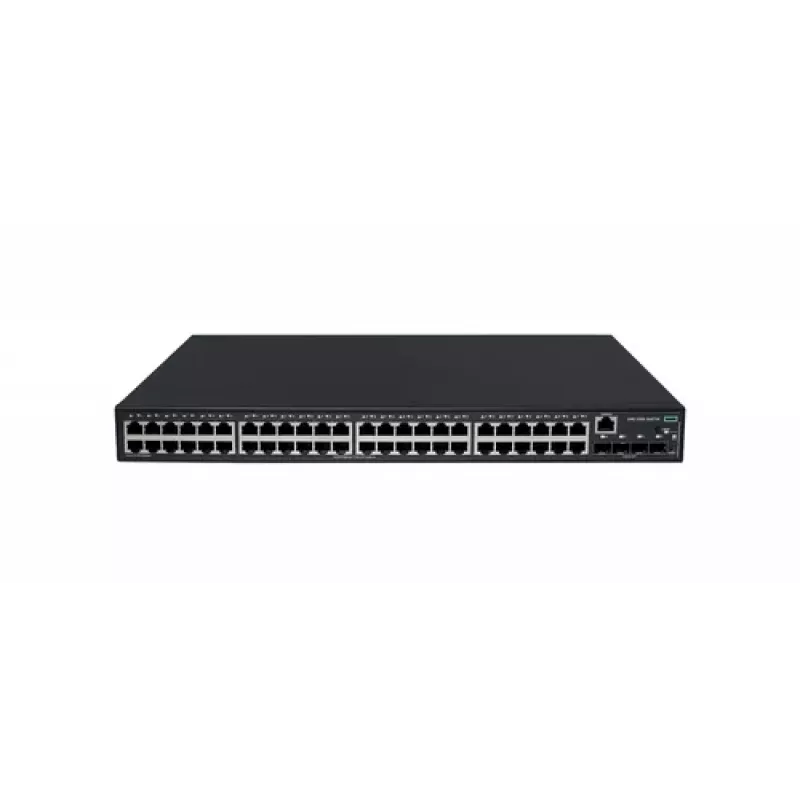

Switch managed HPE Aruba Networking CW 2050 48G PoE+ 4SFP+ 410W S6X71A

The HPE Aruba Networking CW 2050 48G PoE+ 4SFP+ 410W Managed Switch (S6X71A) is a high-performance, rack-mountable Layer 2+ switch designed for small to medium businesses and enterprise edge deployments. With 48 Gigabit Ethernet PoE+ ports and 4 x 10GbE SFP+ uplinks, it delivers robust connectivity and power for IP phones, wireless access points, and surveillance cameras. The 410W PoE budget supports IEEE 802.3at devices, while advanced management features ensure secure and efficient network operations.

Advantages

This switch offers a cost-effective solution for converged networks, combining high port density with powerful PoE capabilities. Its 176 Gbps switching capacity and 130.9 Mpps forwarding rate ensure wire-speed performance. The 1U form factor saves rack space, and the internal power supply simplifies deployment. Security features like 802.1X, ACLs, and port security protect against unauthorized access.

Suitable for

• Enterprise edge and branch office networks requiring PoE+ for devices
• Small to medium businesses needing a managed switch with 10GbE uplinks
• Deployments with IP telephony, wireless LAN, and video surveillance

Key specifications

• 48 x 1GbE PoE+ ports (IEEE 802.3at) with 410W budget
• 4 x 10GbE SFP+ uplink ports
• Switching capacity: 176 Gbps
• Forwarding rate: 130.9 Mpps
• MAC address table: 16,000 entries
• Jumbo frame support: up to 9K bytes
• Layer 2 switching with static Layer 3 routing
• Management: Web GUI, CLI, SNMP, RMON
• Security: 802.1X, RADIUS, TACACS+, ACLs, port security
• VLAN support: up to 4094 VLANs
• QoS, LACP link aggregation
• Internal power supply, AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 45°C
• Flash memory: 256 MB, DRAM: 512 MB

Recommendations

For optimal performance, pair with HPE Aruba Networking access points and controllers. Ensure adequate ventilation in the rack. The switch supports stacking via SFP+ uplinks for scalability.
