Switch managed LevelOne Hilbert 5 porte Industrial Gigabit PoE Smart Lite Switch

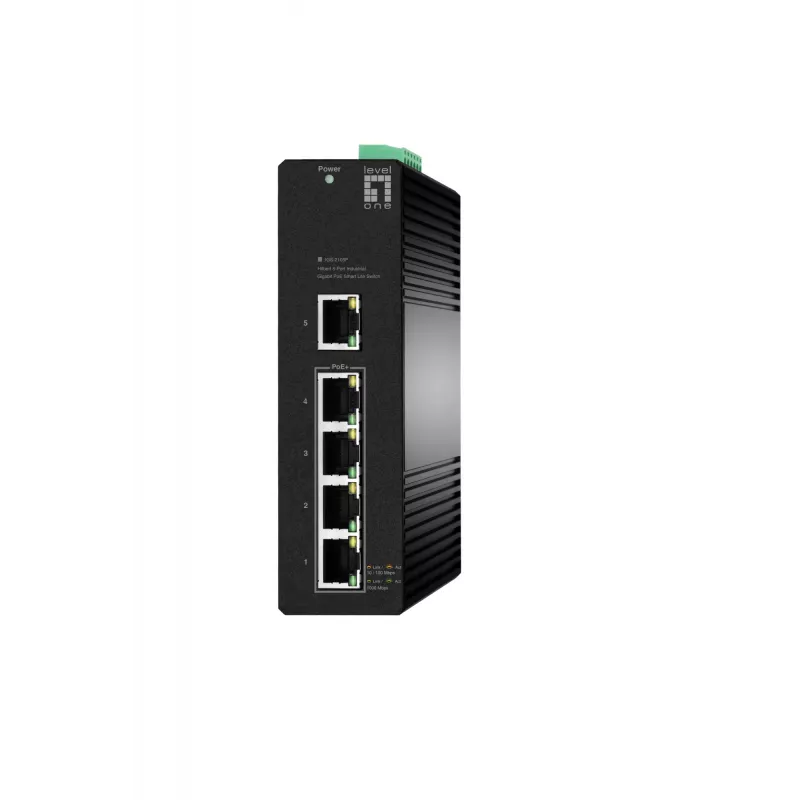

The LevelOne Hilbert IGS-2105P is a 5‑port industrial Gigabit PoE Smart Lite managed switch designed for reliable Ethernet and power delivery in demanding environments. It provides five 10/100/1000 Mbps RJ45 ports, four of which supply PoE+ (802.3at/af) to power devices such as IP cameras and access points. The switch offers a 10 Gbit/s switching capacity, a 2000‑entry MAC address table and supports common Ethernet standards for industrial deployments. Its DIN‑rail mountable metal housing and clear status LEDs make it suitable for control cabinets and other industrial installations.

Advantages

The IGS-2105P combines PoE+ support on four ports with full Gigabit connectivity on all five ports, enabling simultaneous data and power delivery over copper cabling. Managed features and broad protocol support (including IEEE 802.1Q VLANs and IEEE 802.3x flow control) allow basic network segmentation and traffic control while keeping configuration and maintenance straightforward. The device accepts a wide DC input range (44–57 V) and is built for DIN‑rail mounting, providing environmental flexibility for industrial sites.

Suitable for (tasks / use cases)

• Powering and connecting PoE cameras and IP surveillance systems
• Supplying PoE to wireless access points and VoIP phones in industrial sites
• Edge switching in factory automation and transportation cabinets
• Small managed networks requiring VLAN and flow control features

Key specifications

• Model: LevelOne IGS-2105P
• Ports: 5 × RJ45 (10/100/1000 Mbps), 4 PoE+ ports (802.3at/af)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az, 802.1D, 802.1Q, 802.1w

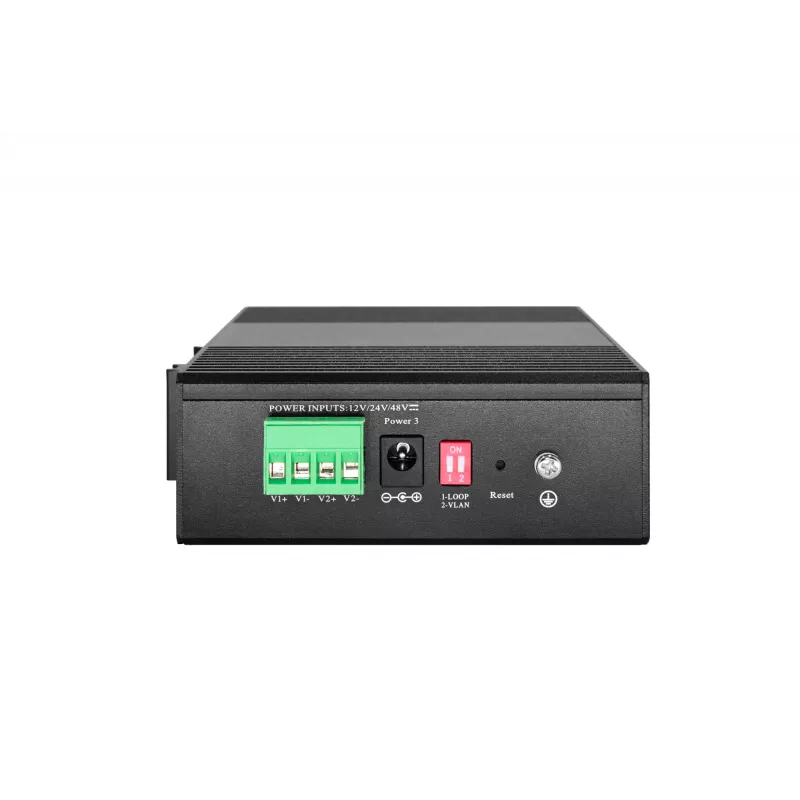

• DC input voltage: 44–57 V

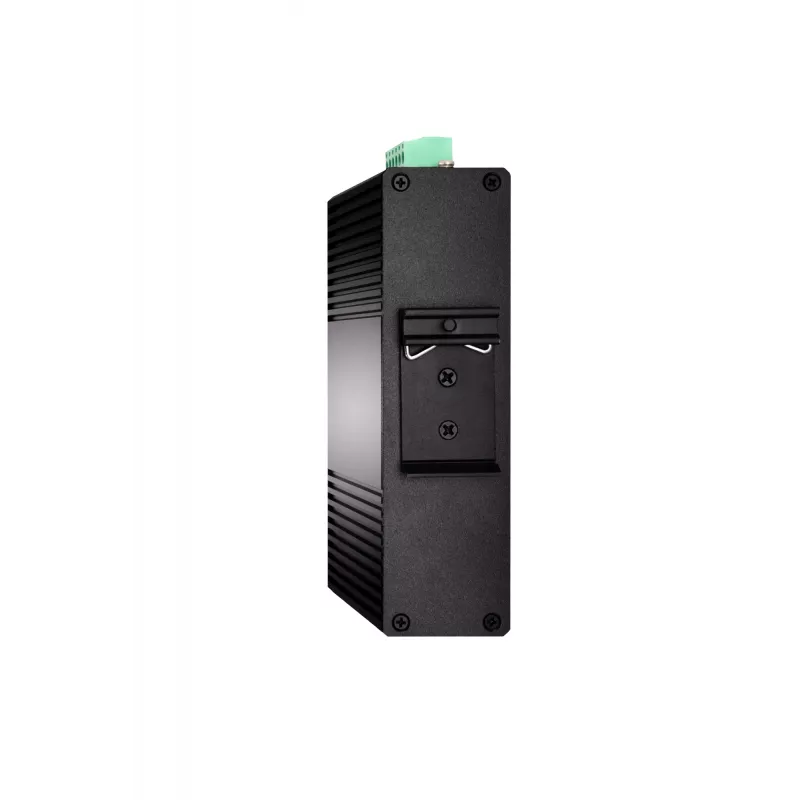

• Mounting: DIN‑rail
• Weight: 0.45 kg

How to use

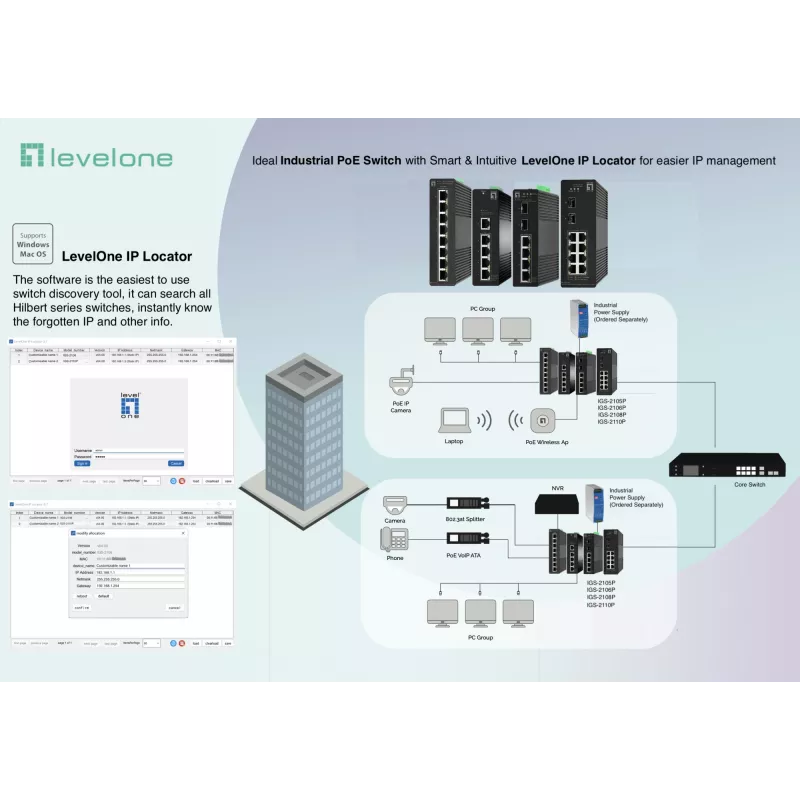

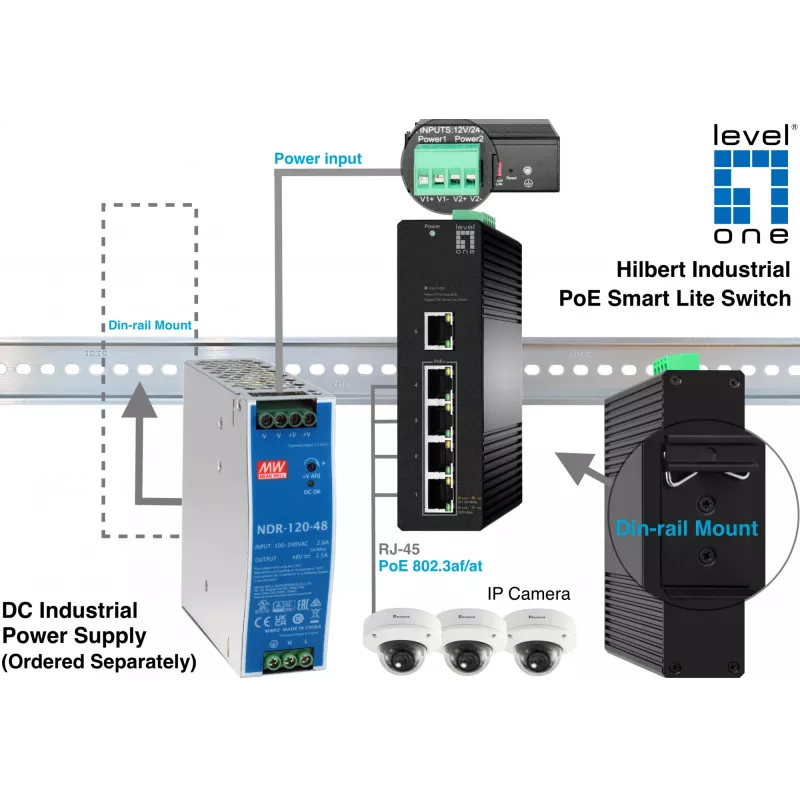

Install the switch on a DIN‑rail inside the control cabinet or on a suitable industrial rack. Connect a compatible DC power source within the specified 44–57 V range. Attach network devices to the RJ45 ports; PoE devices should be connected to the four PoE+ ports to receive power and data. Use the LevelOne IP Locator software to discover the switch on the network and access management settings from a Windows or macOS system for VLAN, port configuration and status monitoring.

Recommendations

For reliable PoE operation, ensure the total PoE power budget of connected devices does not exceed the switch’s available power. Place the switch in a well‑ventilated, vibration‑protected area and use appropriate surge protection in environments with unstable power. Regularly update firmware via the manufacturer’s tools and use the IP Locator to find device IPs when managing multiple Hilbert series switches.
