Switch managed PLANET IGS-4215-4P4T

Switch managed PLANET IGS-4215-4P4T
Switch managed PLANET IGS-4215-4P4T
377,90 €
PDF
PDF
Stock 2 Codice 1181657 Modello IGS-4215-4P4T Garanzia 2 anni

Spedizioni e resi

Consegna stimata giovedì 26 novembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

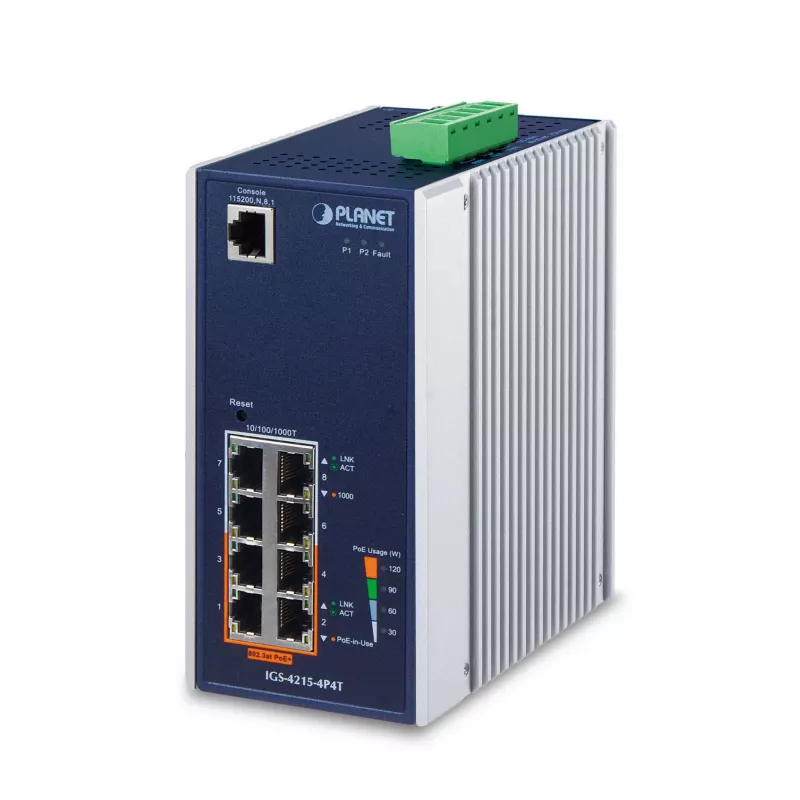

The Managed Switch PLANET IGS-4215-4P4T is an industrial-grade, DIN-rail L2/L4 managed Gigabit PoE+ switch designed for deployment in harsh environments. It provides 4 PoE+ 10/100/1000BASE-T ports (up to 30 W per port) plus 4 additional Gigabit copper ports, IPv4/IPv6 dual-stack management, a 16 Gbit/s switching capacity and an 8K MAC address table. Housed in an IP30 metal casing and rated for operation from -40 to 75 °C, the switch offers a total PoE power budget of up to 144 W and supports DC input in the 48–56 V range, making it suitable for industrial surveillance, wireless and VoIP deployments.

Advantages

The IGS-4215-4P4T combines managed L2/L4 features with advanced PoE management to increase uptime and simplify device maintenance. Its hardened IP30 metal housing and wide operating temperature range provide resilience against electromagnetic interference and extreme ambient conditions. Built-in IPv4/IPv6 dual-stack support enables gradual migration to IPv6 without replacing existing network equipment. The switch also includes QoS and traffic-control functions, Layer 2 protocols such as 802.1Q VLAN, MSTP and link aggregation, and secure management interfaces including web, Telnet, SSH, SSL and SNMPv3.

Suitable for

  • Industrial surveillance camera deployments
  • PoE wireless access point installations
  • Small-to-medium enterprise VoIP and video networks
  • Traffic control cabinets and outdoor/curb-side equipment racks

Key specifications

  • Model: PLANET IGS-4215-4P4T
  • Ports: 4 × 10/100/1000 PoE+ ports, 4 × 10/100/1000 copper ports (total 8 RJ-45)
  • PoE standard: IEEE 802.3at (PoE+), up to 30 W per PoE port, 144 W total budget
  • Switching capacity: 16 Gbit/s
  • MAC address table: 8,000 entries
  • Management: L2/L4 features, IPv4/IPv6 dual stack, web/Telnet/SNMP/SSH/SSL
  • Layer 2 features: 802.1Q VLAN, Q-in-Q, MSTP, link aggregation, IGMP/MLD snooping, LLDP
  • QoS/traffic control: 802.1p/CoS/DSCP, bandwidth control, storm control
  • Power input: DC 48–56 V
  • Operating temperature: -40 to 75 °C
  • Housing: IP30 metal (aluminum) for DIN-rail mounting
  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1x, 802.1w, 802.1s, 802.1p, 802.1ab, 802.1Q
  • Weight: 1.001 kg

How to use

Mount the IGS-4215-4P4T on a DIN-rail or wall as appropriate for your site, provide a compatible 48–56 V DC power source, and connect network devices to the Gigabit RJ-45 ports. Use the built-in web interface, Telnet or SNMP management to configure VLANs, QoS policies, PoE settings and security features. For PoE device maintenance, enable PD alive check and scheduled power recycling to automatically reset unresponsive powered devices. Configure PoE schedules to control when ports supply power and review the PoE power usage chart in the web GUI to monitor consumption in real time.

Recommendations

For reliable PoE deployments, verify that the total connected PD power demand does not exceed the 144 W budget and plan port schedules to avoid simultaneous high-power draws. Use the PD alive check and scheduled recycling functions for unattended cameras or APs to reduce manual reboots. Place the switch in a ventilated but secure location and ensure DC input is stable and protected against surges.
Punti salienti
  • Industrial surveillance camera deployments
  • PoE wireless access point installations
  • Small-to-medium enterprise VoIP and video networks
  • Traffic control cabinets and outdoor/curb-side equipment racks
  • Model: PLANET IGS-4215-4P4T
  • Ports: 4 × 10/100/1000 PoE+ ports, 4 × 10/100/1000 copper ports (total 8 RJ-45)
  • PoE standard: IEEE 802.3at (PoE+), up to 30 W per PoE port, 144 W total budget
  • Switching capacity: 16 Gbit/s
  • MAC address table: 8,000 entries
  • Management: L2/L4 features, IPv4/IPv6 dual stack, web/Telnet/SNMP/SSH/SSL
  • Layer 2 features: 802.1Q VLAN, Q-in-Q, MSTP, link aggregation, IGMP/MLD snooping, LLDP
  • QoS/traffic control: 802.1p/CoS/DSCP, bandwidth control, storm control
  • Power input: DC 48–56 V
  • Operating temperature: -40 to 75 °C
  • Housing: IP30 metal (aluminum) for DIN-rail mounting
  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1x, 802.1w, 802.1s, 802.1p, 802.1ab, 802.1Q
  • Weight: 1.001 kg

Specifiche

Specifiche
Aggregazione di link
Sì
Algoritmi di sicurezza
802.1x RADIUS, 128-bit SSL, SNMP, SSH
Alimentazione via Ethernet (PoE)
Sì
Altezza
152 mm
Autenticazione
Autenticazione basata su porta
Auto MDI/MDI-X
Sì
Binding IP-MAC-porta
Sì
Budget PoE (Power over Ethernet) totale
144 W
Capacità di commutazione
16 Gbit/s
Certificazione
FCC 15 A, CE
Codice Sistema Armonizzato (HS)
85176990
Colore del prodotto
Bianco, blu
Consumo energetico (max.)
151.28 W
Consumo energetico (tipico)
7.28 W
Controllo delle tempeste broadcast
Sì
Corrente in ingresso
3.5
Duplicazione delle porte
Sì
Filtraggio indirizzi MAC
Sì
Filtro/protezione BPDU
Sì
Firmware aggiornabile
Sì
Funzionalità VLAN
VLAN basata su protocollo, VLAN taggata, VLAN privata, VLAN stacked
Funzioni DHCP
Client DHCP
Gestione via web
Sì
Grado di protezione (IP)
IP30
IGMP snooping
Sì
Indicatori LED
System, Power fail, Power, PoE, Link, Activity
Intervallo di tensione Power over Ethernet (PoE)
48 - 56
Ispezione ARP
Sì
Jumbo frame
10000
Larghezza
76.8 mm
Layer dello switch
L2/L4
Lista di controllo degli accessi (ACL)
Sì
Memoria buffer dei pacchetti
4.1 MB
Memorizzazione e inoltro
Sì
Montabile a parete
Sì
Montaggio su guida DIN
Sì
Numero di gruppi multicast filtrati
256
Numero di linee
4
Numero di porte Ethernet RJ-45 di commutazione di base
8
Numero di porte Power over Ethernet (PoE)
4
Numero di VLAN
256
Peso
1.001 kg
Porta morsettiera
Sì
Profondità
107.3 mm
Protocollo Spanning Tree
Sì
Pulsante di reset
Sì
Registro eventi di sistema
Sì
Sicurezza
IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Sicurezza statica delle porte
Sì
Standard di rete
IEEE 802.3u, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Supporto 10G
No
Supporto controllo di flusso
Sì
Supporto jumbo frame
Sì
Supporto MIB
RFC 1213, RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
Supporto multicast
Sì
Supporto Quality of Service (QoS)
Sì
Supporto VLAN
Sì
Tabella indirizzi MAC
8000 voci
Tecnologia di cablaggio Ethernet in rame
1000BASE-T, 100BASE-TX, 10BASE-T
Temperatura di esercizio (T-T)
-40 - 75
Temperatura di stoccaggio (T-T)
-40 - 85
Tensione di ingresso CC
48 - 56
Throughput
11,9 Mpps
Tipo di porte Ethernet RJ-45 di commutazione di base
Gigabit Ethernet (10/100/1000)
Tipo di switch
Gestito
Umidità relativa di esercizio (H-H)
5 - 95
Umidità relativa di stoccaggio (H-H)
5 - 95
