Switch managed PLANET IP30 Industrial L2/L4 8 porte Gigabit Ethernet 10/100/1000

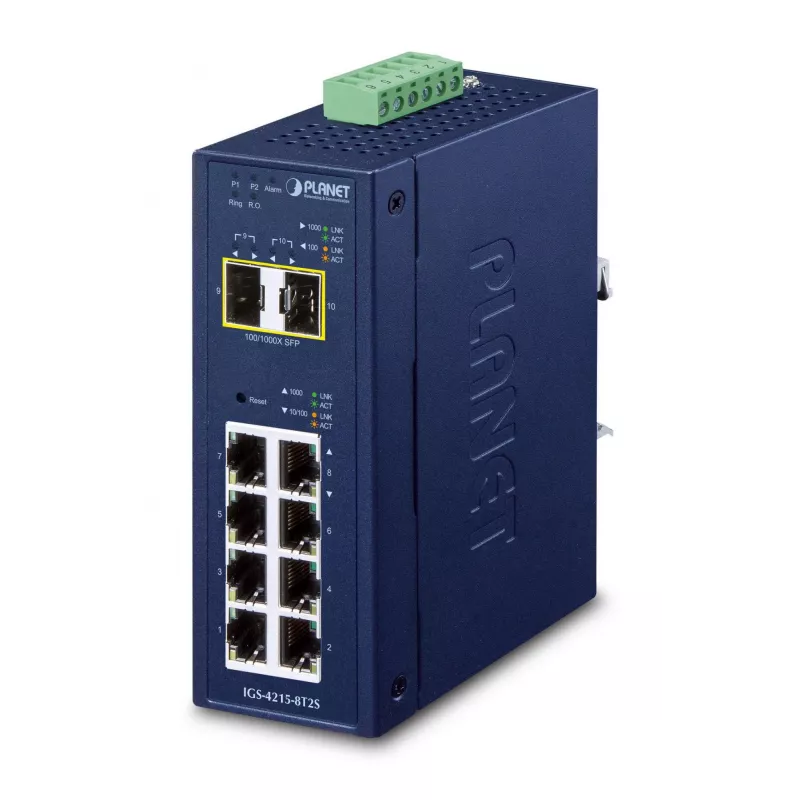

The PLANET IGS-4215-8T2S is an industrial-grade, DIN-rail managed Gigabit switch designed for critical business and industrial networks. It provides 8 10/100/1000BASE-T ports and 2 100/1000BASE-X SFP slots, dual-stack IPv4/IPv6 management, and an L2/L4 switching engine in an IP30 metal housing rated to operate from -40 to 75 °C. With a compact rugged design and 9–48 V DC power input, the switch is intended for demanding environments such as factory floors, traffic cabinets, and other hardened deployments.

Advantages

The IGS-4215-8T2S offers hardened protection against electromagnetic interference and electrical surges, ESD and surge immunity, and redundant ring technologies for fast recovery. It supports advanced Layer 2 and Layer 4 features including VLAN, link aggregation, MSTP, QoS, and comprehensive ACLs. Management options include web GUI, CLI (Telnet/SSHv2) and SNMPv3 for secure monitoring. Two SFP slots enable long-distance fiber uplinks and support SFP-DDM diagnostics for real-time transceiver monitoring.

Suitable for

• Industrial automation networks and factory-floor connectivity
• Traffic control cabinets and outdoor/curb-side network cabinets without air conditioning
• Small to medium enterprise edge switches for VoIP and video surveillance
• Long-distance uplink connections using fiber SFPs to backbone switches

Key specifications

• Ports: 8 × 10/100/1000BASE-T, 2 × 100/1000BASE-X SFP
• Switching capacity: 20 Gbit/s (product data)
• Management: IPv4/IPv6 dual stack, Web GUI, CLI (Telnet/SSHv2), SNMPv3
• Layer features: L2/L4 switching, 802.1Q VLAN, Q-in-Q, link aggregation, MSTP, LLDP, IGMP/MLD snooping
• Security: ACL (L2–L4 IPv4/IPv6), 802.1X, Port Security, DHCP Snooping, IP Source Guard, DAI
• Environmental: IP30 metal housing, operating temperature −40 to 75 °C
• Power: 9–48 V DC input (product data)
• Protection: ESD ±6 kV contact / ±8 kV air, surge ±4 kV
• SFP support: 100BASE-FX / 1000BASE-SX/LX; fiber reach up to 550 m–2 km (multi-mode) or up to 120 km (single-mode/WDM)

How to use

Mount the IGS-4215-8T2S on a DIN-rail or wall using the provided brackets and connect a compatible 9–48 V DC power source. Connect Ethernet devices to the 8 Gigabit RJ45 ports and insert SFP transceivers into the SFP slots for fiber uplinks as required. Access the device for initial configuration through the built-in Web GUI, or use SSH/Telnet for CLI access. For remote monitoring and centralized management, configure SNMPv3. Configure VLANs, link aggregation, QoS, and security policies (ACL, 802.1X, DHCP Snooping) according to network design and operational requirements.

Recommendations

Install the switch in a ventilated, dust-minimized enclosure when possible; use surge-protected power inputs and enable SNMPv3 and SSHv2 for secure remote management. For surveillance or ring-topology deployments enable ERPS/MSTP and test recovery times; use SFP-DDM to monitor fiber transceiver status and replace faulty modules promptly to maintain link reliability.
