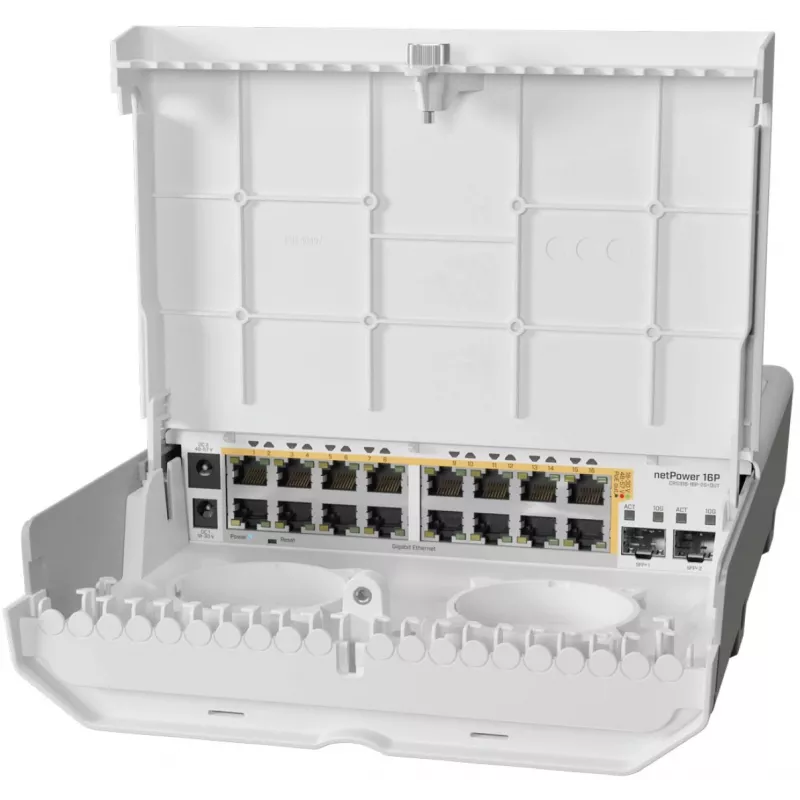

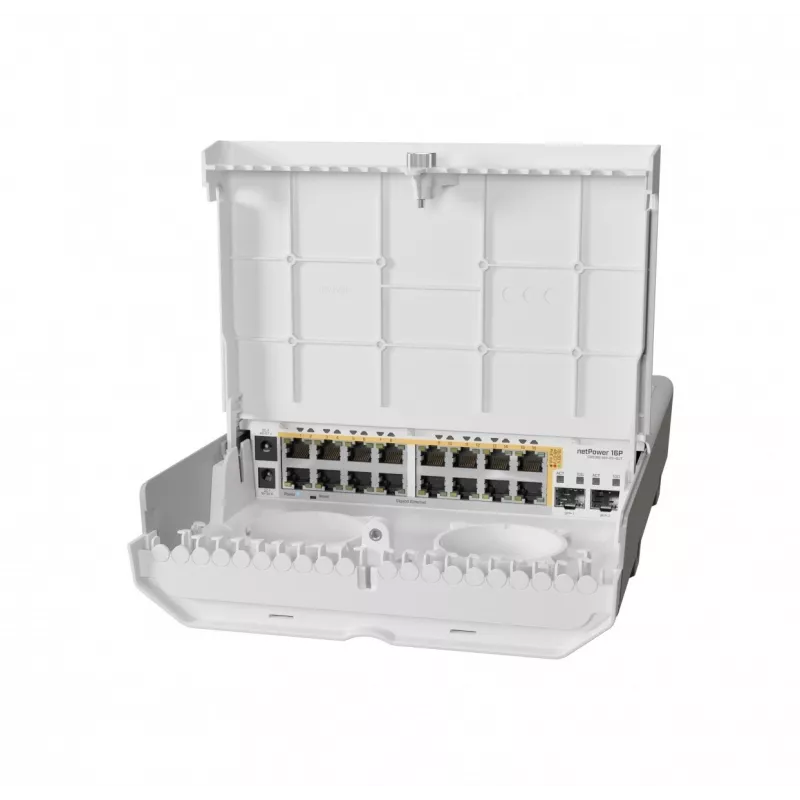

Switch Mikrotik netPower 16P L2/L3 Gigabit Ethernet Power over Ethernet

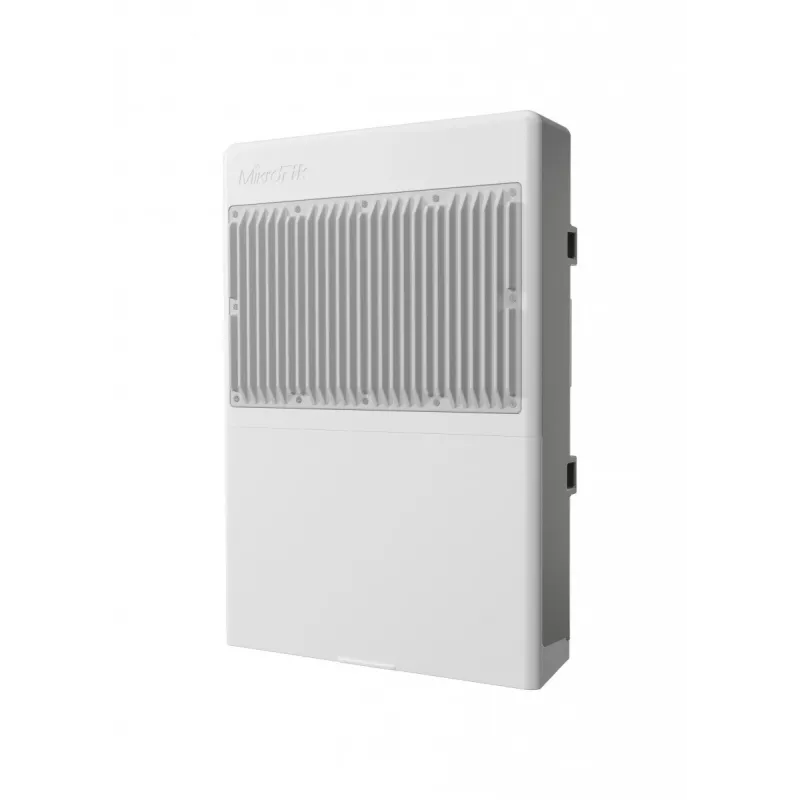

netPower 16P is a compact outdoor Layer 2/3 switch with 16 Gigabit Ethernet ports that provide Power over Ethernet (IEEE 802.3af/at) and two SFP+ ports for 10G fiber uplinks. The robust enclosure is designed for outdoor installation on towers, masts, poles and in damp spaces such as attics and shafts. The switch offers non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps and a forwarding rate of 53.6 Mpps. The device requires an external DC power source: use a 24V power supply for 24V PoE-out or a 48V power supply for 48V PoE-out; the power supply is not included. Compatible MikroTik power supplies include 24HPOW, 48POW and 48V2A96W.

Advantages

The netPower 16P combines high port density with outdoor-rated housing, enabling deployment of multiple access points or IP cameras directly on towers or poles. It supports both IEEE 802.3af and IEEE 802.3at PoE standards for flexible device powering and includes two SFP+ ports for 10G uplinks. The unit delivers switched performance suited for busy edge installations while remaining compact and durable for exposed environments.

Suitable for

• Powering and connecting multiple wireless access points on towers or rooftops
• Supplying PoE to IP surveillance cameras in outdoor or semi-outdoor locations
• Edge switching with 10G uplinks to aggregation or core equipment
• Installations on masts, poles, in shafts or damp attic spaces

Key specifications

• Ports: 16 × Gigabit Ethernet (10/100/1000) with PoE-out, 2 × SFP+ (10G)
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Non-blocking throughput: 36 Gbps
• Switching capacity: 72 Gbps
• Forwarding rate: 53.6 Mpps
• DC input voltage range: 18–57 V (requires external PSU)
• Colour: White

How to use

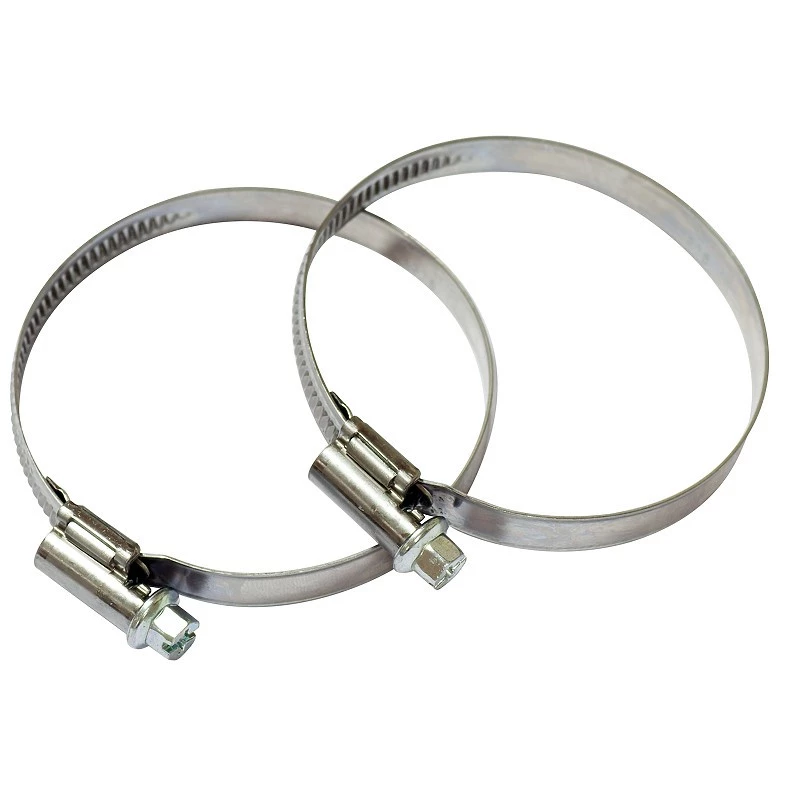

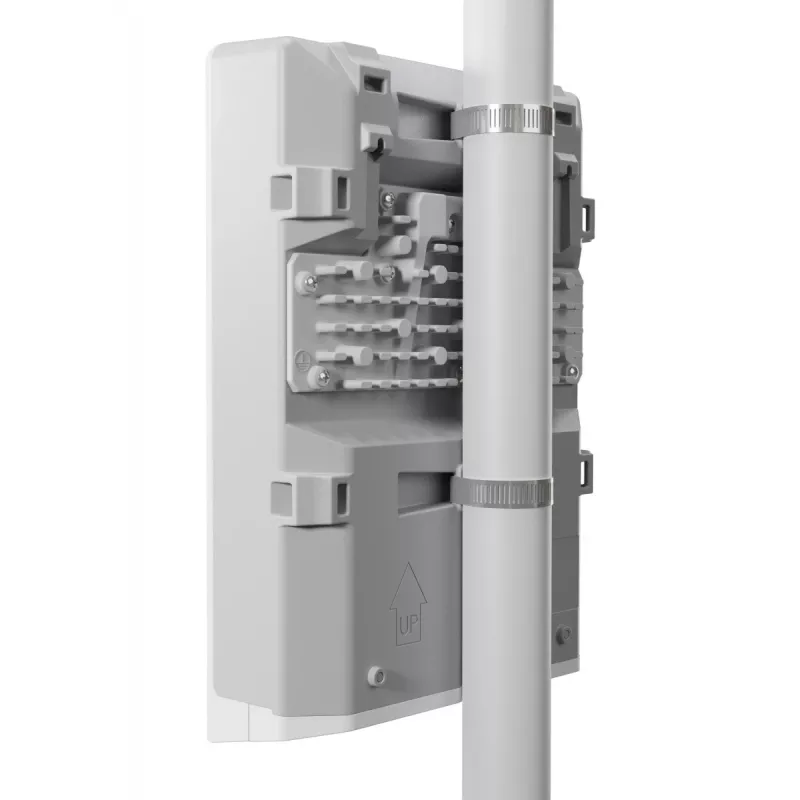

Mount the netPower 16P in a suitable outdoor location using hose clamps or other approved mounting hardware. Connect Ethernet devices to the RJ-45 ports and fiber uplinks to the SFP+ slots as needed. Provide an appropriate external DC power source: install a 24V PSU for 24V PoE-out or a 48V PSU for 48V PoE-out, ensuring the voltage matches the powered devices' requirements. Configure Layer 2/3 settings via the device management interface according to your network design.

Recommendations

Use a compatible, properly rated power supply (not included) and follow local mounting, grounding and weatherproofing practices. Verify PoE power budget and cable lengths to ensure stable operation of connected access points and cameras.
